Description:
If you’re been looking for a professional -- and realistic -- racing simulator experience, the DOF Reality P3 Racing Motion Simulator Platform is the top choice. With three axes of movement (Pitch, Roll, and Yaw), the P3 simulates the exact motions of a real racing vehicle. You'll feel understeer, oversteer, drifting sensations, traction loss, acceleration, breaking, and g-force through muscle pressure points.
The included Sim Racing Studio software is highly customizable and provides precise in-game feedback based on the car’s telemetry information, simulating road bumps, texture, vibrations, gear changes, collisions, and more.
The P3 is suitable for commercial businesses, professional drivers, and hobbyists wanting a higher-tiered platform than the HERO (H) series. But to sum it up? If you want an adrenaline-filled experience every time you, or your customers, sit in the seat, the P3 is for you.

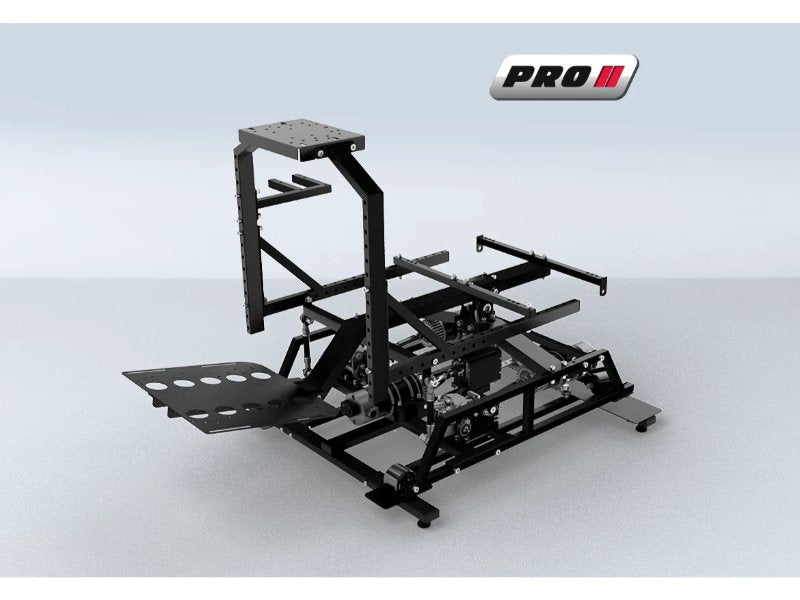

Included is the platform frame, all necessary cables, and motion software. Platform extras, such as base covers, transportation wheels, emergency stop buttons, and floor mats are available as additional add-ons.

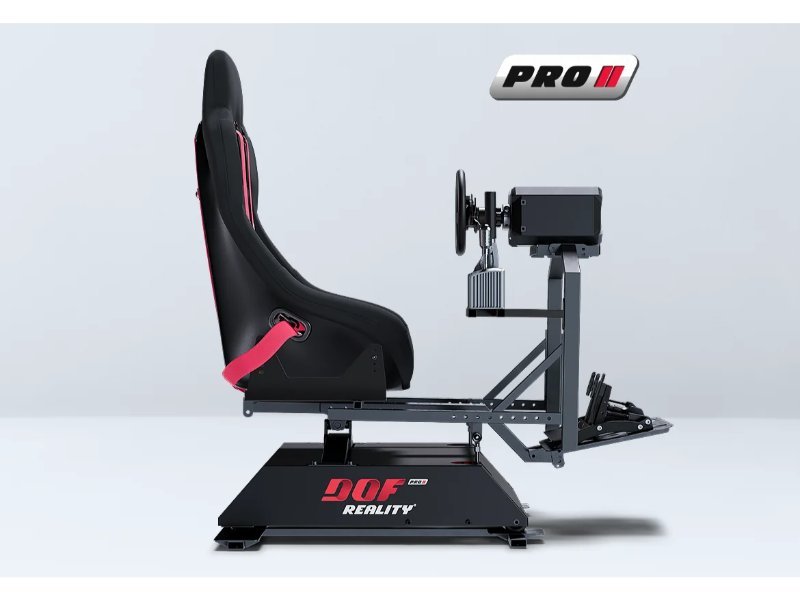

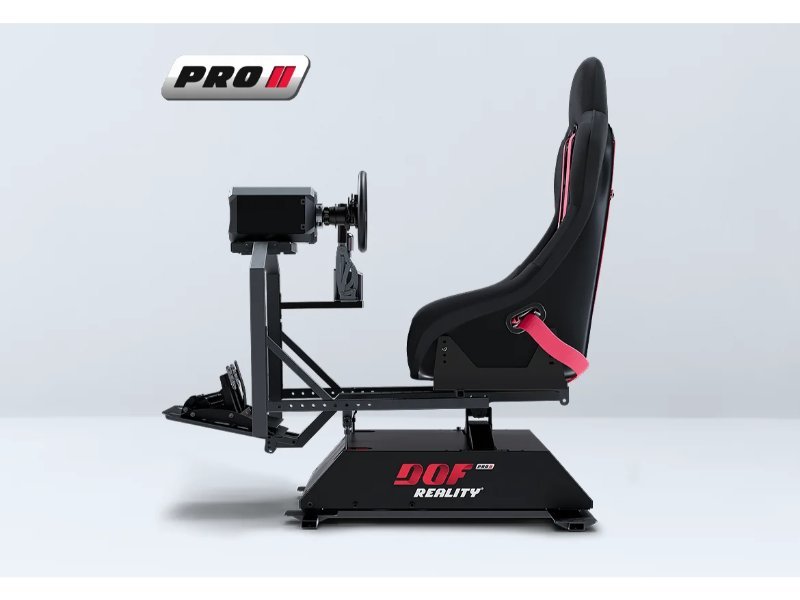

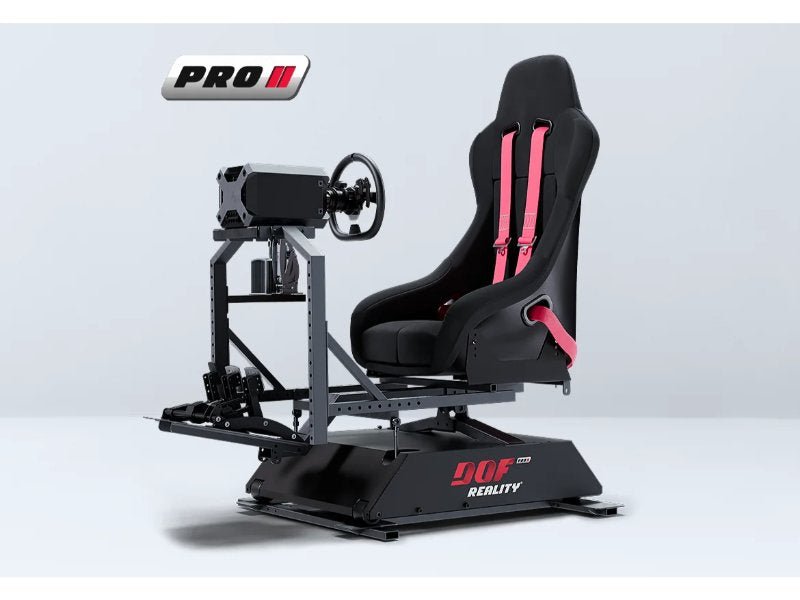

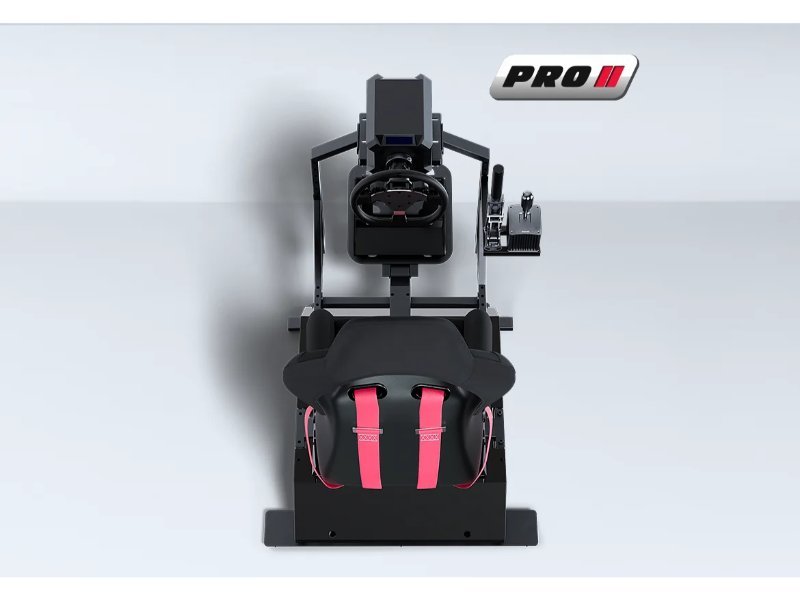

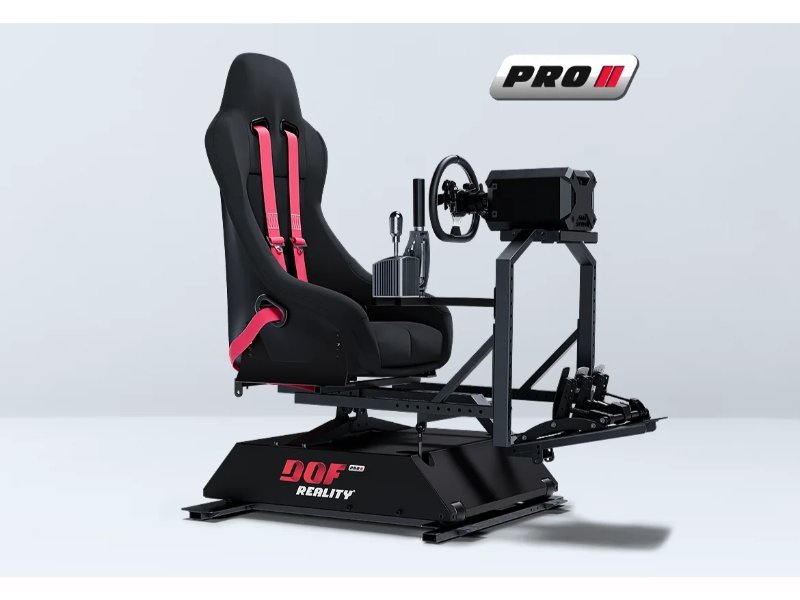

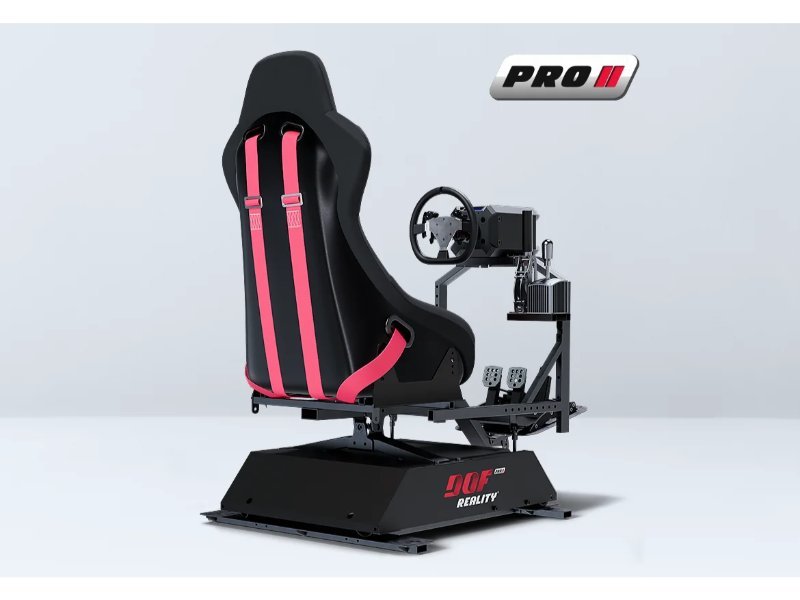

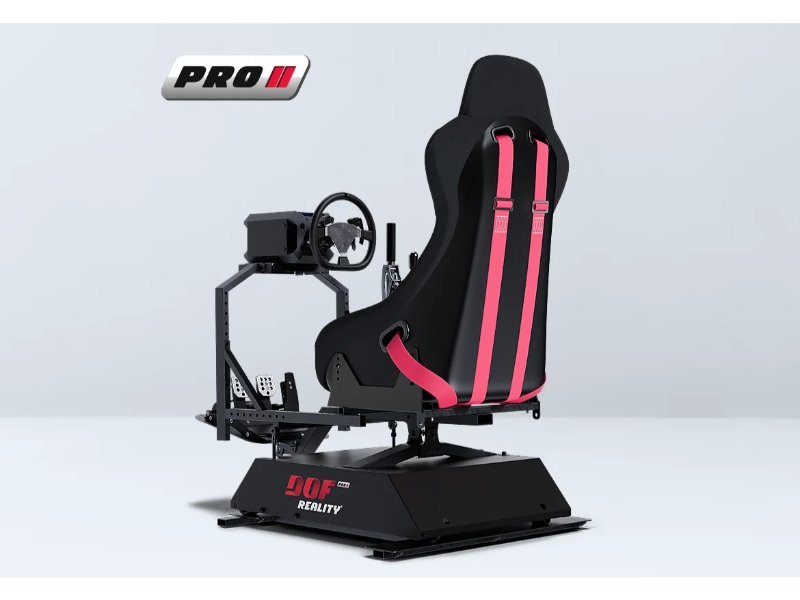

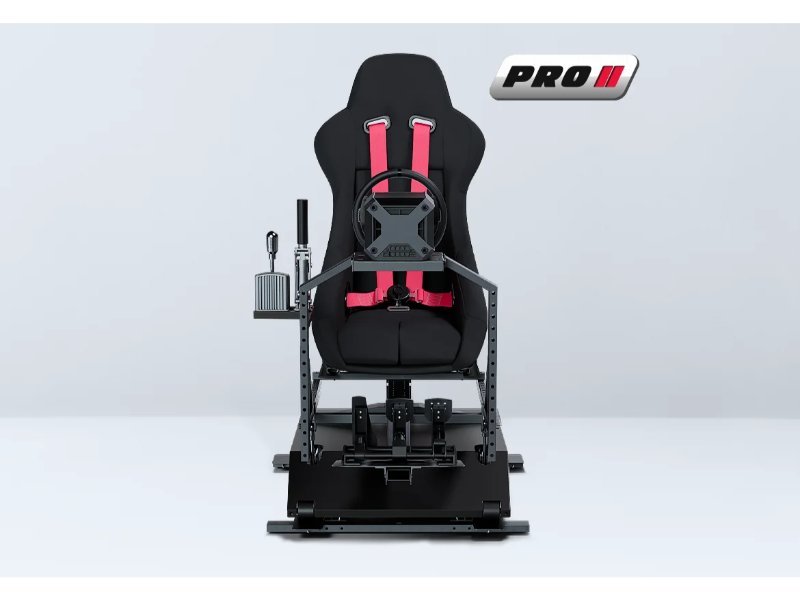

Please note that games and platform accessories (ie: seat, steering wheel, pedals, etc) are not included. Photos showing the platform with a seat, steering wheel, etc., are for visual reference only.
Specifications:
- Degrees of Freedom (Axis): 3 DOF (Pitch, Roll, Yaw/Rear Traction)
- Full Platform Motion: Yes
- Range of Motion: 20°
- Speed: 75 cm/s (105°/s)
- Torque: 28 n/m
- Acceleration: 0.75G T / 0.5G L
- Power Consumption: 1400 Watt (peak)
- Material Type: Commercial grade metal profiles
- Supported Pilot Weight: 440 lbs / 200 kg
- Warranty: Full 1 year
- Upgradable: Yes, to P6
- Box Weights and Sizes:
- Box 1: 27kg (90 x 33 x 20cm)
- Box 2: 29.5kg (60 x 40 x 30cm)
- Floor Footprint: 3×5, 2 ft H (100×150, 60 cm H)
Features:
- True 3 Degrees of Freedom (DOF): Simulates pitch, roll, and yaw/rear traction for a fully immersive experience.
- Full Platform Motion: Ensures all controllers (wheel, pedals, joystick, monitor) move in sync with the seat for accurate simulation of g-forces.
- Customizable Sim Racing Studio Software: Provides precise in-game feedback based on the car’s telemetry data, reproducing road conditions, texture, vibrations, gear changes, collisions, and more.
- High-Speed Motion: Capable of 75 cm/s (105°/s) with a range of motion of 20°, delivering swift and realistic reactions.
- Powerful Torque and Acceleration: Generates 28 n/m of torque and up to 0.75G T / 0.5G L acceleration for authentic driving sensations.
Compatibility:
- Consoles: Compatible with PlayStation, Xbox, and Windows systems
- VR Systems: Works with all major VR headsets, including HTC Vive, Oculus Rift, Valve Index, and more. Also supports motion compensation for a smoother VR experience
Please note that, while you can use a proxy Windows PC to host the SimRacingStudio (SRS) software, this is not necessary. If you do not have a PC, you can purchase the MagicBox add-on which hosts the SRS software, gets motion information directly from the console games, and lets you control SRS with your phone or tablet. Just plug the DOF Reality motion platform into the MagicBox and enjoy the console sims.
Supported Racing Games:
- iRacing
- Assetto Corsa & Competizione
- Gran Turismo 7 & Sport
- F1 22-24
- Project CARS 1, 2, 3, PRO
- GRID 2 & GRID 2019
- Automobilista 1 & 2
- Flashout 3
- rFactor & rFactor 2
- The Crew 1 & 2
- Torque Drift
- TrackMania 2 & TrackMania Turbo
- RDS: The Official Drift Videogame
- GT Legends & GTR 2 – FIA GT Racing Game
- RaceRoom Racing Experience
- Game Stock Car
- STCC – The Game
- BeamNG.drive
- Simraceway
- Live For Speed
- Volvo – The Game
- RACE Injection
- Forza Motorsport 7
- Forza Horizon 4 & 5
- Race 07 & Race 07 Retro Pack
- And many more!
Metal Cyber Cover
The Metal Cyber Cover is an enclosure for the base of the platform that provides protection from the lower moving parts. Made from powder-coated steel, it is built to be durable and safe (all while looking good, too!).
- Prevents dust and reduces risks
- Protects pets and children from exposed parts
- Conceals the technical components for a clean, modern appearance
- Shields mechanics from dust and spills
- Lightweight yet robust structural design
- Made from precision laser-cut, powder-coated steel
Compatible with H2, H3, P2, and P3 platforms.
Protection Cover
If you like the protection that the Metal Cyber Cover provides, but want a more economical option, then the Protection Cover is for you! This is a soft, flexible cover that is designed to protect moving parts while providing safety.
Compatible with H2, H3, P2, and P3 platforms.
eBreak Stop Button
"Safety first." We know it's an old saying, but it's stuck around for a reason. Sometimes things happen, which is why we have the eBreak Stop Button. This is an emergency button that can be installed on the platform within easy reach. It allows you to immediately stop the motion platform -- so whether you need to make a mad dash to the door for Uber Eats, grab a crawling kid, or save the day in any other way, you can stop the movement right away to do so.
Compatible with all platform models.
Transportation Wheels
Moving your platform shouldn’t feel like moving a mountain. That’s where the transportation wheels come in. It adds two heavy-duty front wheels to your platform, letting one person easily lift it from the back so the wheels hit the floor. Whether you’re relocating it around the house or loading it up for an event, this kit makes quick work of the job.
Compatible with H3 and P3 platforms.
Cable Extension Set
Included in your purchase will be a set of 1.2m (4') to connect the control box to the motors. These are long enough for most common installations, where you would regularly place the control box under the pedals plate (for H2, H3, P2 and P3 models) or under the seat (for H6 and P6 models).
As a result, the Cables extension set is only needed for the customers who, for some reason, wish to place the control box further away from the platform.
Floor Mats
Skid marks are cool on the track. They're less cool on your living room floor. That's why the Floor Mat Set is here to keep things steady, quiet, and stylish. With six (6) durable rubber tiles measuring 19 1/2" x 19 1/2" and 1/2" thick (50 x 50 cm, 13 mm), this set creates a sturdy, cushioned surface that absorbs motion noise and protects your floors. Crafted from rubber granulate cubes, these mats deliver serious shock absorption, insulation from cold floors, and an anti-slip grip. Weather-resistant and eco-friendly, they’re built to handle whatever comes their way—all while keeping your simulator setup sleek and soundproof.
MagicBox for PlayStation and Xbox
If you don't have a proxy Windows PC to host the SimRacingStudio (SRS) software, add-on the MagicBox to your purchase. This box connects to your PlayStation or Xbox, hosts the SRS software, gets the motion information directly from the console games, and lets you control SRS with your phone or tablet. Just plug the DOF Reality motion platform into the MagicBox and enjoy the console.
If you do have a PC to host the software, this add-on is not needed.
What is included in the DOF Reality platform?
DOF Reality platforms come with the motion simulator frame, mounts for seat or sliding rails, integrated power drive motors, a control unit with USB compatibility (110-240v), SimRacingStudio license, quick assembly tools, and a 1-year full warranty.
It does not come with any accessories (seat, steering wheel, pedals, etc). This product is the frame only.
Will it work with PlayStation and Xbox?
Yes, all motion platforms from DOF Reality are compatible with both PlayStation and Xbox gaming systems.
Do I need a PC for the motion software to work?
While you can use a proxy Windows PC to host the SimRacingStudio (SRS) software, this is not necessary. Instead, you can purchase the MagicBox add-on which hosts the SRS software, gets motion information directly from the console games, and lets you control SRS with your phone or tablet. Just plug the DOF Reality motion platform into the MagicBox and enjoy the console sims.
What seat should I use with your platform?
Seat choice is a matter of personal preference and almost any bottom-mount car or gaming seat will work with your DOF Reality platform. For general recommendations, we suggest a Bucket Racing Seat (to prevent falling during G-forces) and a lighter seat (so the motion performance will be enhanced).
For specific recommendations, we suggest the Sparco R100 Seat, Sparco R333 Seat, or Sparco Sprint Seat. Please note that a real, certified racing seats can be quite expensive -- and these are not necessary for racing. A non-certified seat will still work the same way and will generally be cheaper than certified ones.
The best option for your DOF Platform will be to use a standard bottom mount car seat with sliders/rails (as in a real car). This will provide you with the opportunity for quick adjustments and easy mounting. If you choose a bucket seat, please note that most will require 'side to bottom mounted bracket adapters' and 'sliders.'
Does it come assembled?
The platform requires assembly upon delivery, but it includes quick assembly tools for easy setup.
How does motion cancellation/compensation work with the platforms?
The SimRacingStudio software handles motion cancellation and compensation to ensure smooth and accurate simulation.
What will I get if I order?
You will receive the motion simulator platform frame with all necessary cables and software. Please note that you will need to purchase the seat, steering wheel, pedals, and any controllers or VR Headseats separately.
Warranty: Full 1-year manufacturer warranty on motion simulator platform
Shipping: DOF Reality products are shipped in batches every 2 weeks, and once shipped, delivery time is an average of 2 weeks. Receiving your order will take 2-4 weeks from the time it is placed. Door-to-door delivery is guaranteed with full insurance coverage.
Please note that due to the platform's weight (130 – 220 lbs depending on the model), we ship them in two boxes to make handling easier.
