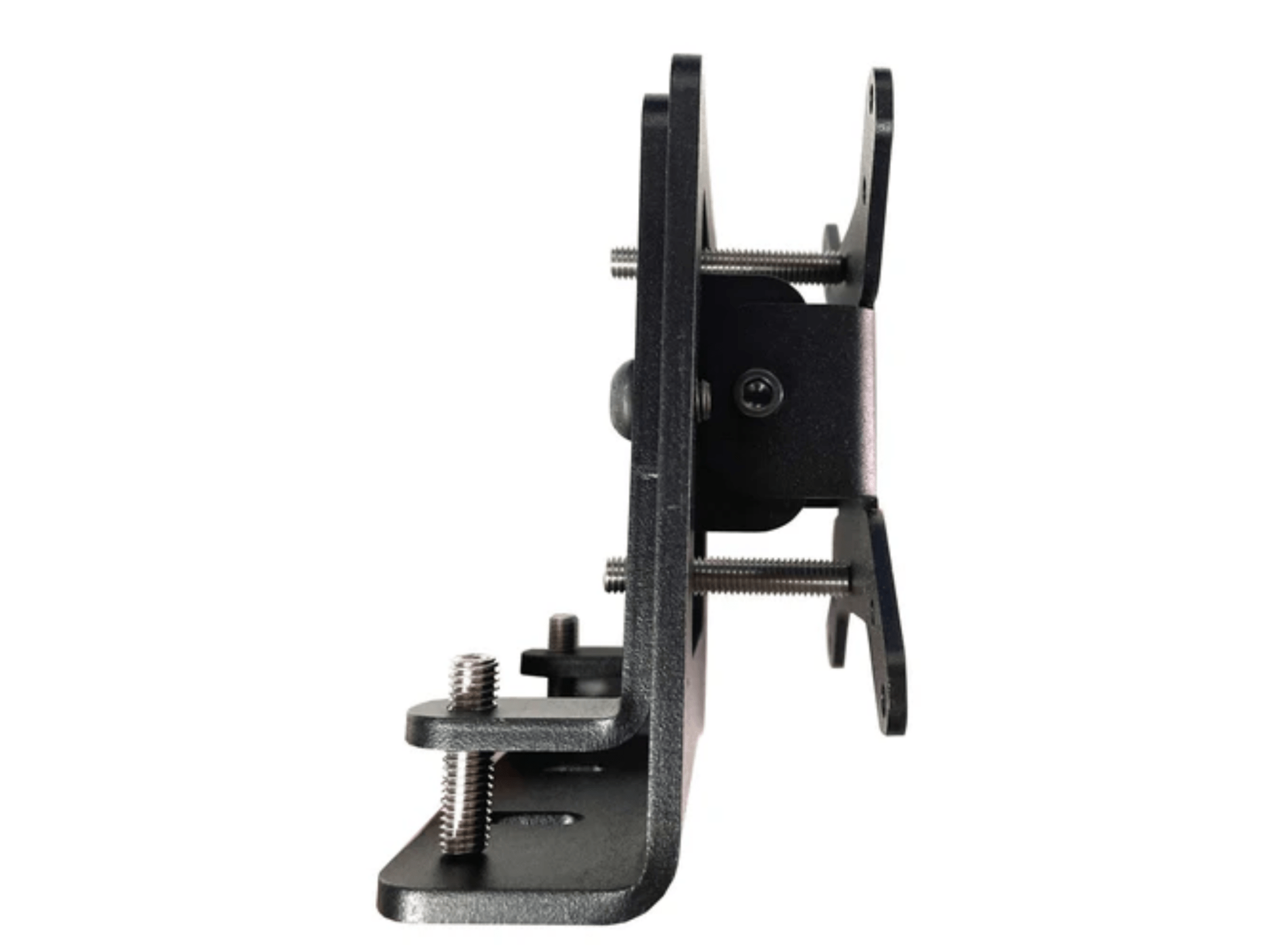

ASR VESA Monitor Adapter (Set of 3)

Struggling to get your triple monitor setup just right?

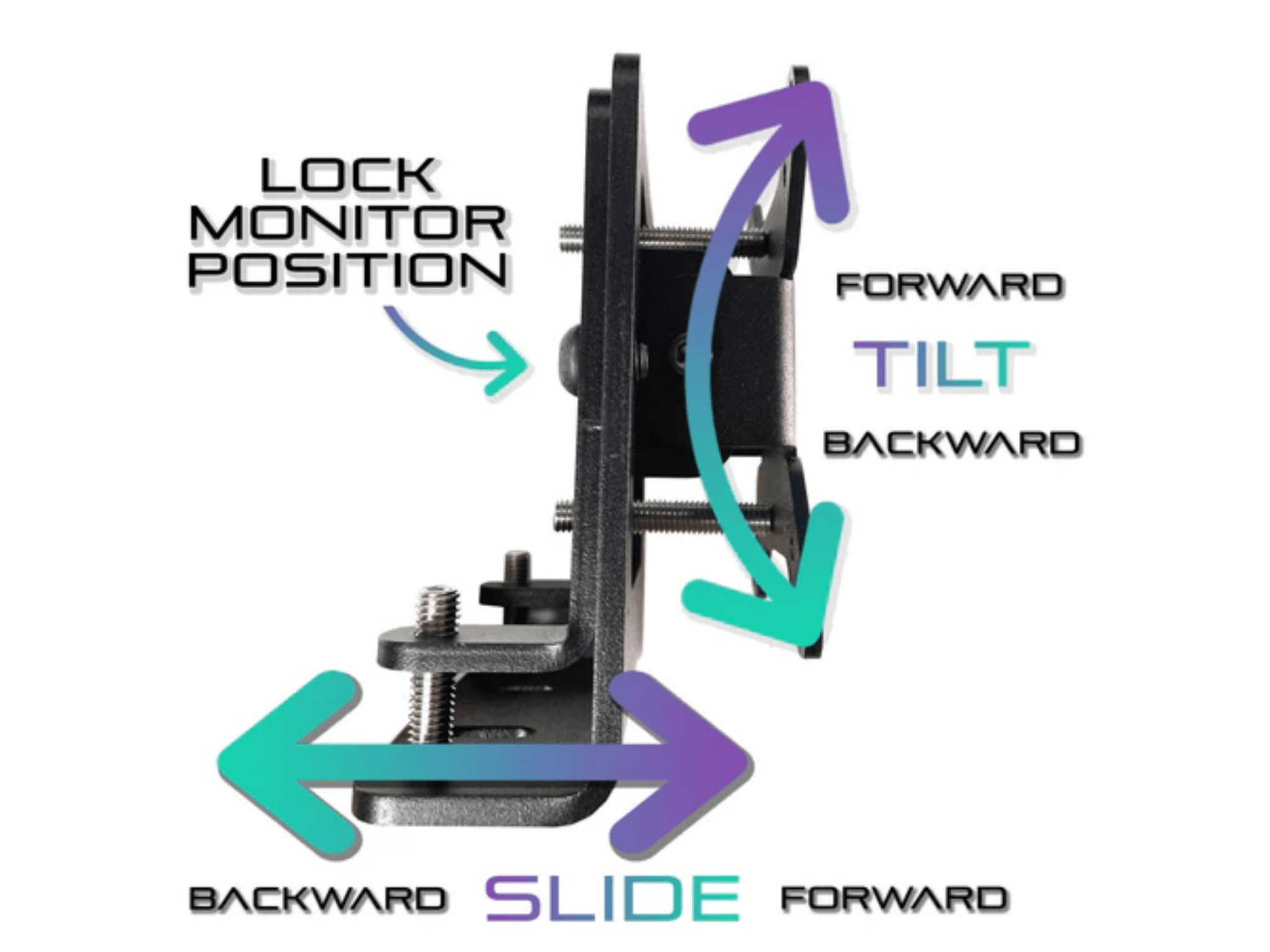

The Advanced VESA (Set of 3) from Advanced Sim Racing is the perfect solution! This adjustable VESA adapter is designed to make setting up your racing simulator’s triple monitor display quick and easy. In just a few minutes, you’ll have your monitors perfectly aligned and locked into place. Unlike other adapters, the Advanced VESA comes with a secure locking mechanism, so your monitors stay exactly where you want them—no more accidental bumps or shifting screens during your racing sessions.

With this easy-to-use setup, you can focus on what really matters—experiencing the most realistic racing simulator experience possible!

• Box 1 - 8" x 6" x 6"
• 3 x Advanced VESA plate 1
• 3 x Advanced VESA plate 2
• 3 x Advanced VESA plate 3
• 6 x 50mm set screws
• 6 x 30mm set screws
• 6 x 1/4" screws
• 6 x M8 Screws (12mm)
• 6 x M8 Screws (16mm)
• 6 x M8 T-Nuts

• Compatible with all of our aluminum profile triple monitor stands
• Attachment provided: VESA 100mm/75mm

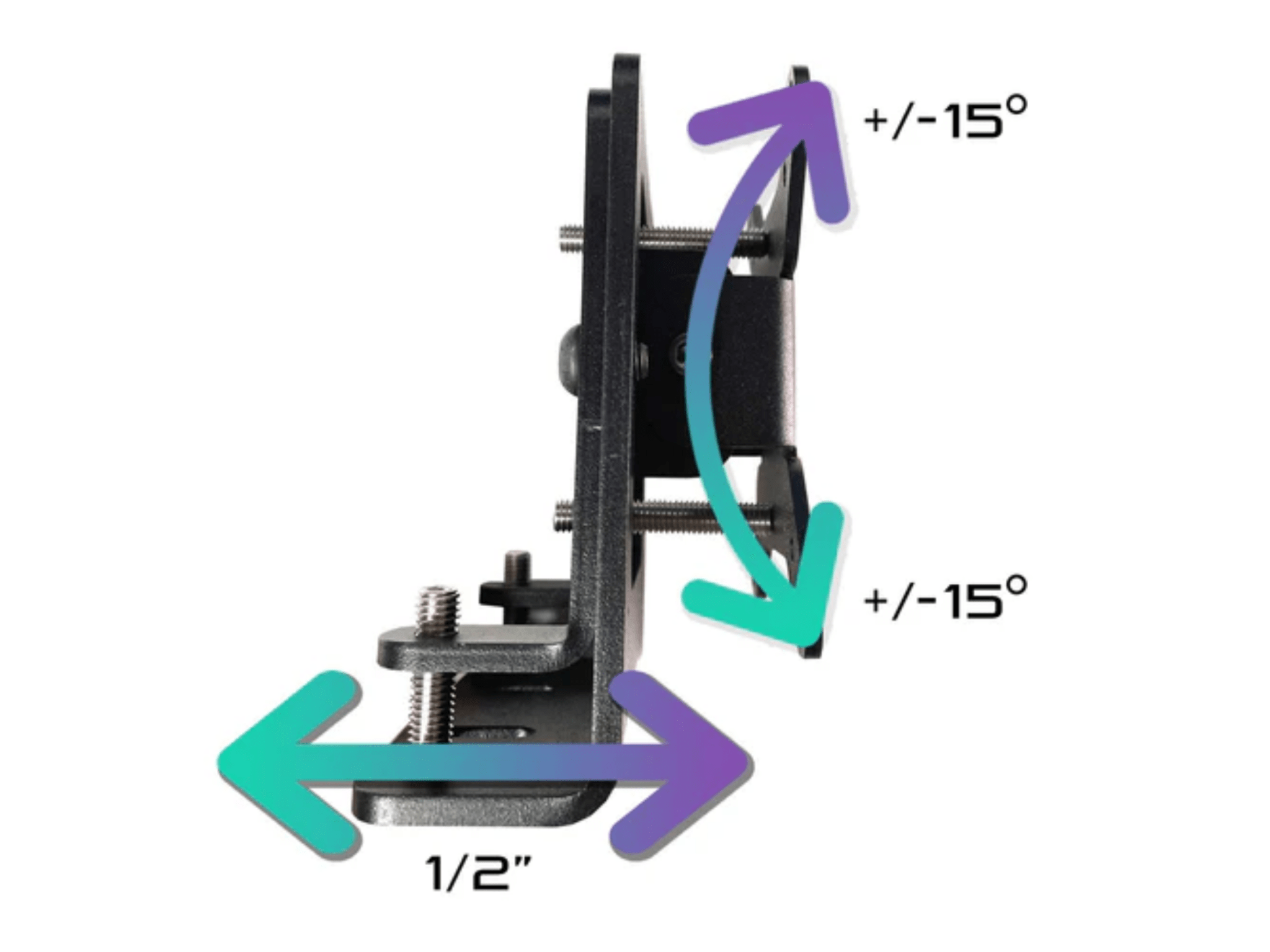

• Move up or down on the vertical Z-axis (Heave) : +/- 0.5" for a total range of 1"
• Slide forward or backward on the horizontal X-axis (Surge) : +/- 0.5" for a total range of 1"
• Move left or right on the horizontal Y-axis (Sway) : Can be done by adjusting the horizontal position of the supporting T-Nut that secures the Advanced VESA inside the aluminum profile channel on your monitor stand
• Tilt clockwise or counterclockwise (Roll) : +/- 7.5° for a total range of 15°
• Tilt forward or backward (Pitch) : +/- 15° for a total range of 30°
• Refer to the images provided in this product page for a visual representation of the adjustment possibilities

Advanced VESA Assembly Guide
