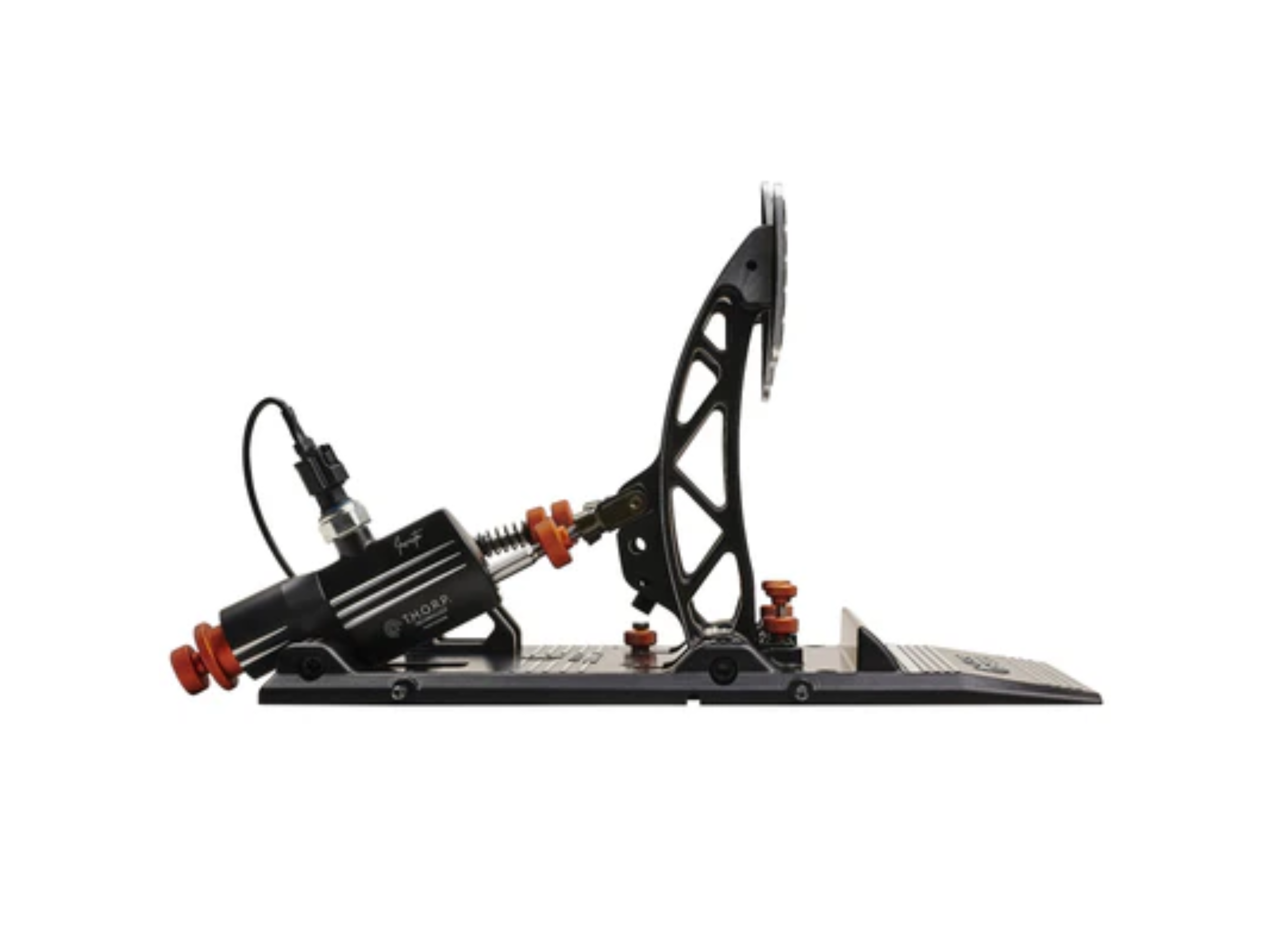

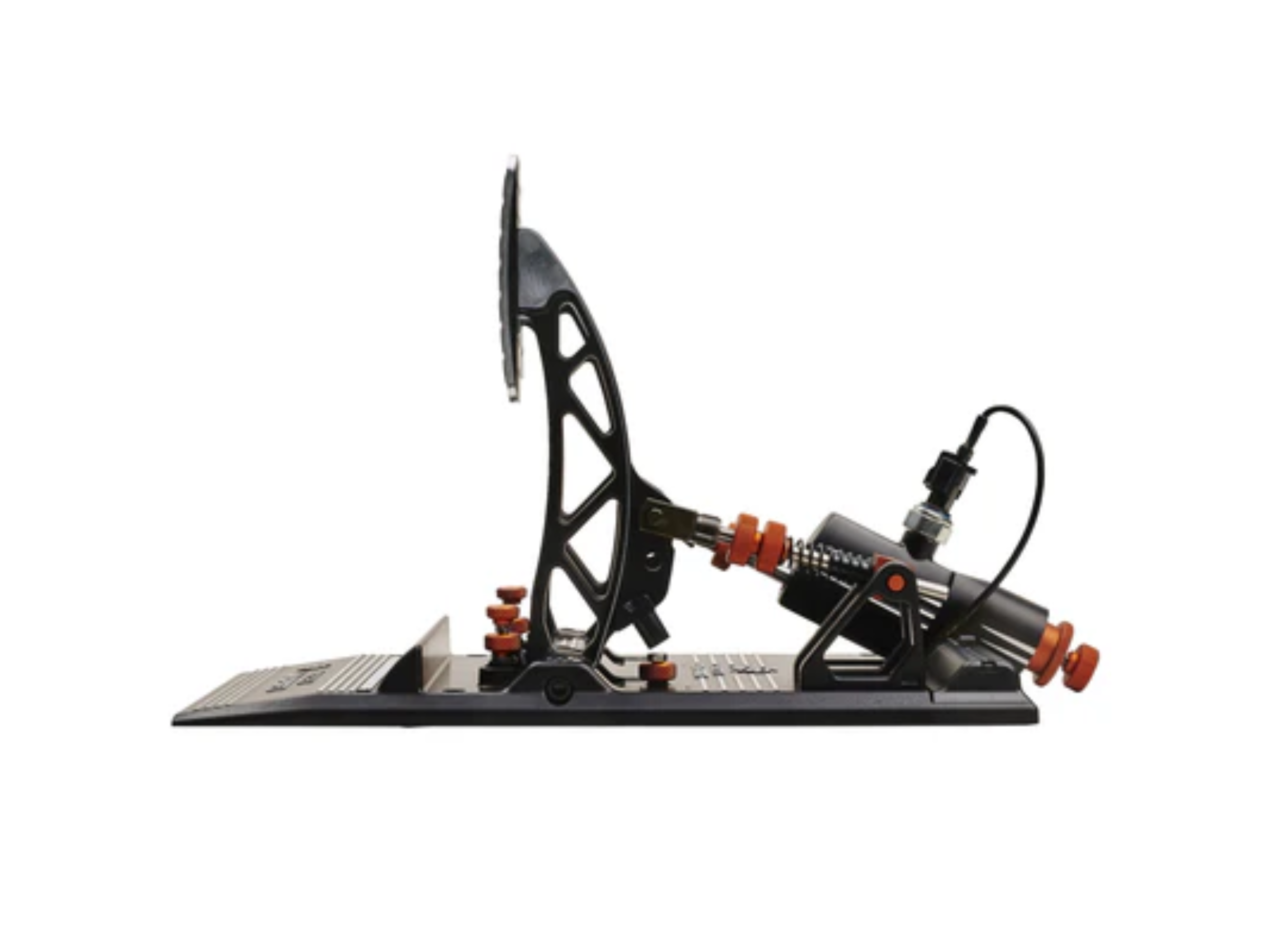

Asetek SimSports Invicta Sim Racing Pedals - Brake & Throttle

Want the ultimate race car pedal feel in your racing simulator? The Asetek SimSports Invicta Sim Racing Pedals - Brake & Throttle deliver realistic, high-performance braking and acceleration—built for serious sim racers.

Key Features:

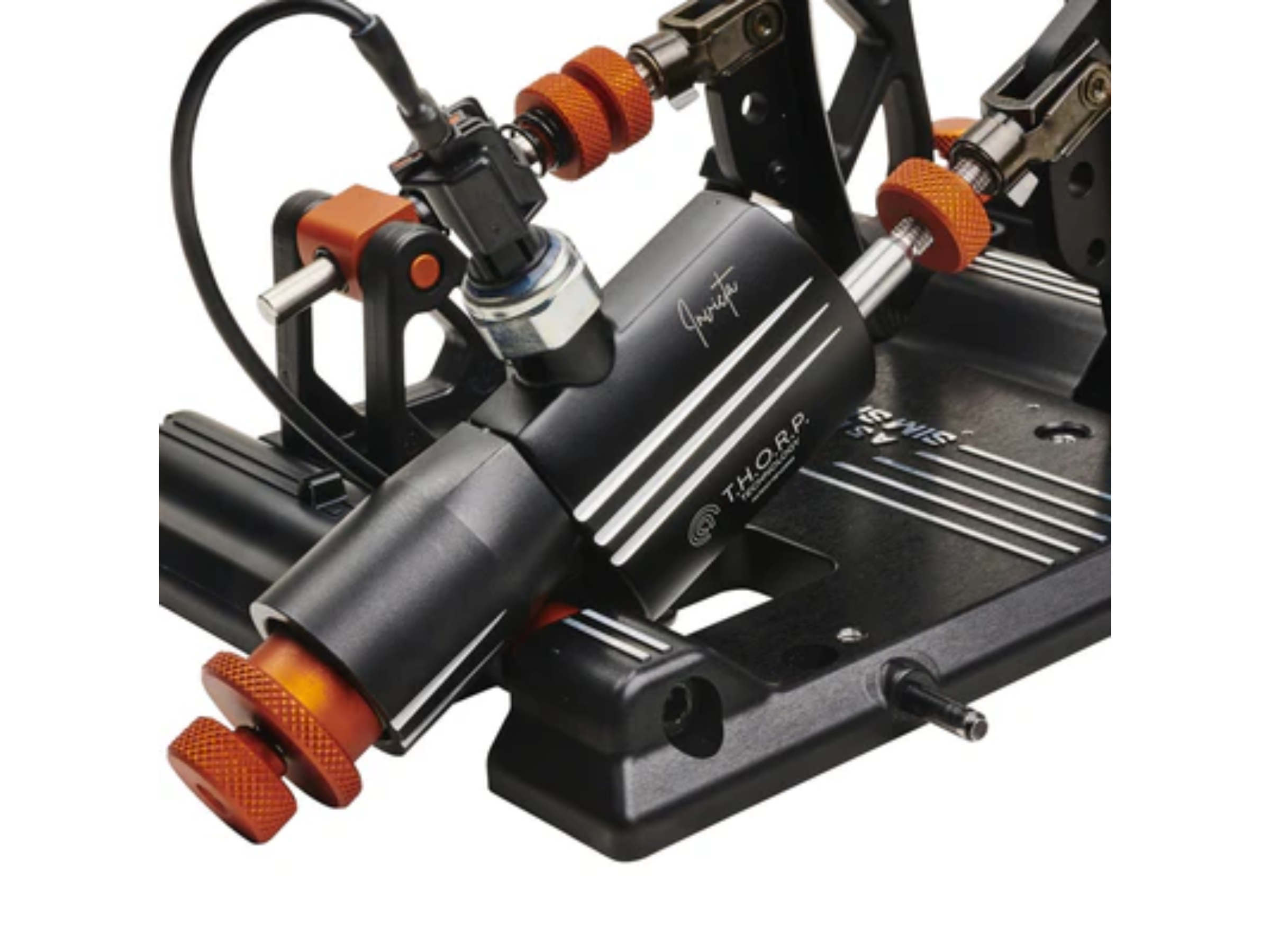

• Hydraulic Brake System (T.H.O.R.P.) – Feels like a real race car brake, rock-hard and ultra-responsive.
• Automotive-Grade Pressure Sensor – Delivers precise, consistent braking for better lap times.
• Plug-and-Play Setup – Easy installation with Asetek SimSports RaceHub software for full customization.
• Durable & Built to Last – Engineered in Denmark for long-term performance.
• Fully Adjustable – Customize pedal travel and stiffness to match your driving style.

Upgrade your racing simulator with Invicta and experience the best in sim racing precision!

General Tech

• Premium Danish design with a sleek, industrial aesthetic.
• Fully adjustable pedal stops, travel settings, and pedal plate positioning (x- and y-axis).
• All-black anodized aluminum construction with CNC-machined contrast cut surfaces.
• Integrated RGB LED lighting in the pedal base, adjustable via RaceHub software.
• EPROM memory storage ensures calibration settings (pressures, dead zones, etc.) are saved across all games and simulators.
• Single USB connection for simplified setup (works for both 2-pedal and 3-pedal configurations).
• RaceHub software compatibility for individual pedal calibration, including upper and lower dead zone adjustments.
• Distinctive orange color accents highlight all adjustable mechanical components.
• High-resolution electronics with in-house developed 16-bit resolution and an automotive-grade pressure sensor.
• Sustainable manufacturing with 100% on-site re-use of waste materials.
• Manufactured and tested in Denmark for durability, withstanding up to 1,000,000 activations—exceeding real race car standards.
• Optional smooth, sock-friendly pedal plates (coming soon).
• Easily expandable—clutch pedal can be added to the throttle and brake combo.

Brake System

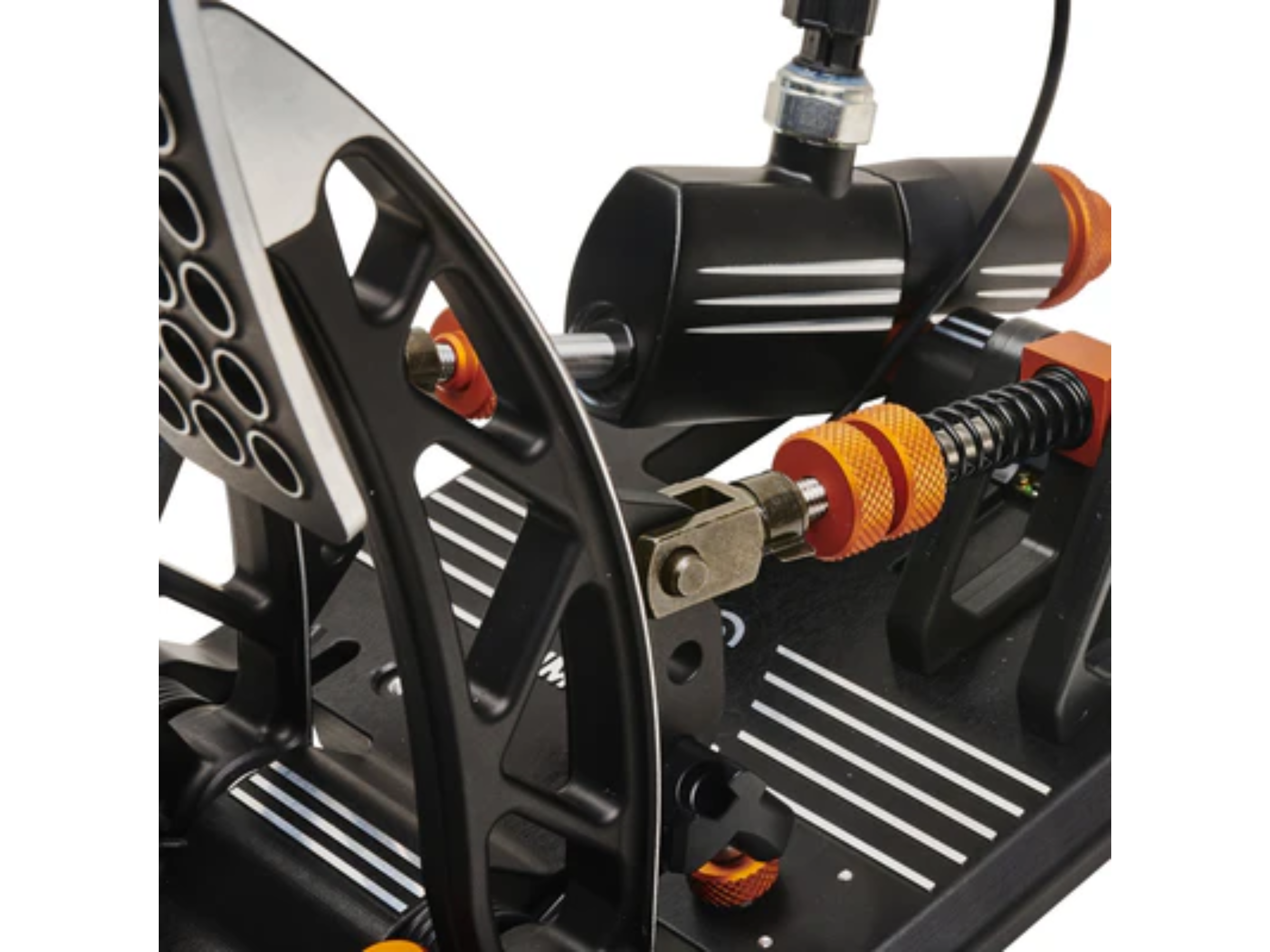

• Die-cast aluminum pedal arm with zero play, featuring long-lasting ball bearings and bronze bushing at the clevis rotation point.
• Hydraulic brake cylinder made from forged aluminum with CNC-machined details for a premium finish.
• Automotive-grade pressure sensor with a 0-100 bar range (tested up to 130 bar burst pressure).
• 100 bar of pressure = 180 kg of force on the pedal plate.
• Three interchangeable elastomers for tuning pedal hardness, plus:
  • Integrated expansion chamber for a realistic race car brake feel.
  • Physical stop prevents elastomer overloading.
  • Adjustable initial touch hardness to simulate brake pad-to-disc distance.
• Pedal arm designed to handle up to 200 kg of force, with a burst resistance of 700 kg.

Throttle System

• Die-cast aluminum pedal arm with zero play, ball bearings, and bronze bushings for durability.
• 16-bit magnetic wireless Hall effect sensor (TPS) with no mechanical wear and zero maintenance.
• Fully adjustable throttle response curves in RaceHub software:
  • Linear curve for dry conditions.
  • Progressive curve for wet conditions.
• Customizable pedal resistance, including:
  • Adjustable pedal hardness.
  • Adjustable pedal travel.
  • Adjustable pedal stop.
  • Interchangeable springs for different resistance levels.
• Pedal arm rated for 200 kg of force and a burst pressure of 700 kg.

Dimensions & Weight

• Depth: 457 mm
• Width: 212 mm
• Height: 256 mm
• Weight: 3 kg

Compatible with all ASR-Brand SimRacing Chassis featuring the Steel Pedal Plate. Not compatible with Advanced SimRacing's Aluminum Pedal Tray & Adjustable Heel Rest.

Devices

• PC - Windows 10 and Windows 11
• Console support planned in the future

Games

• Assetto Corsa
• Assetto Corsa Competizione
• DiRT Rally
• DiRT Rally 2.0
• F1 Series
• iRacing
• Project Cars 2
• rFactor 2
• And many more (all games that accept direct input devices)
