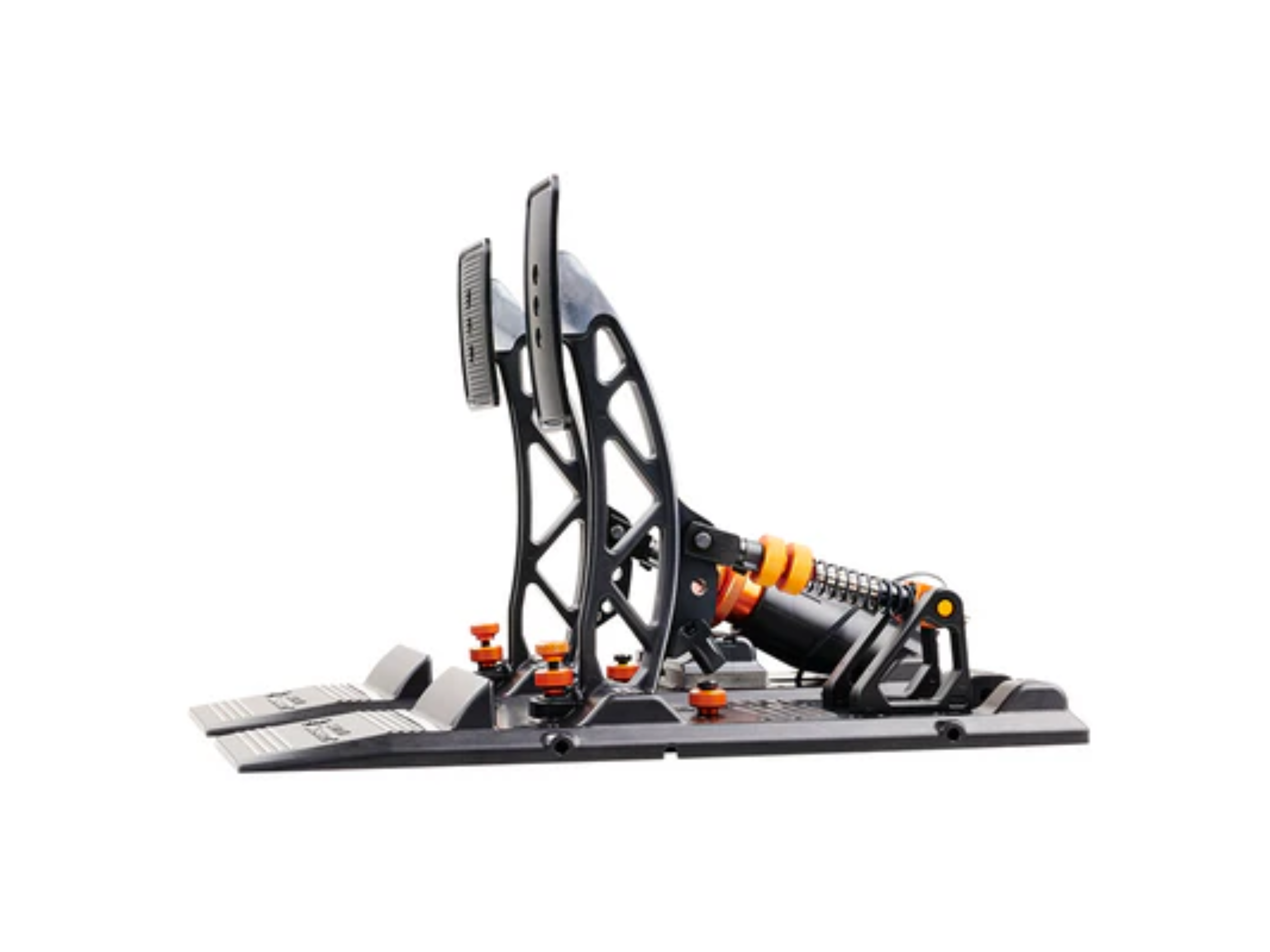

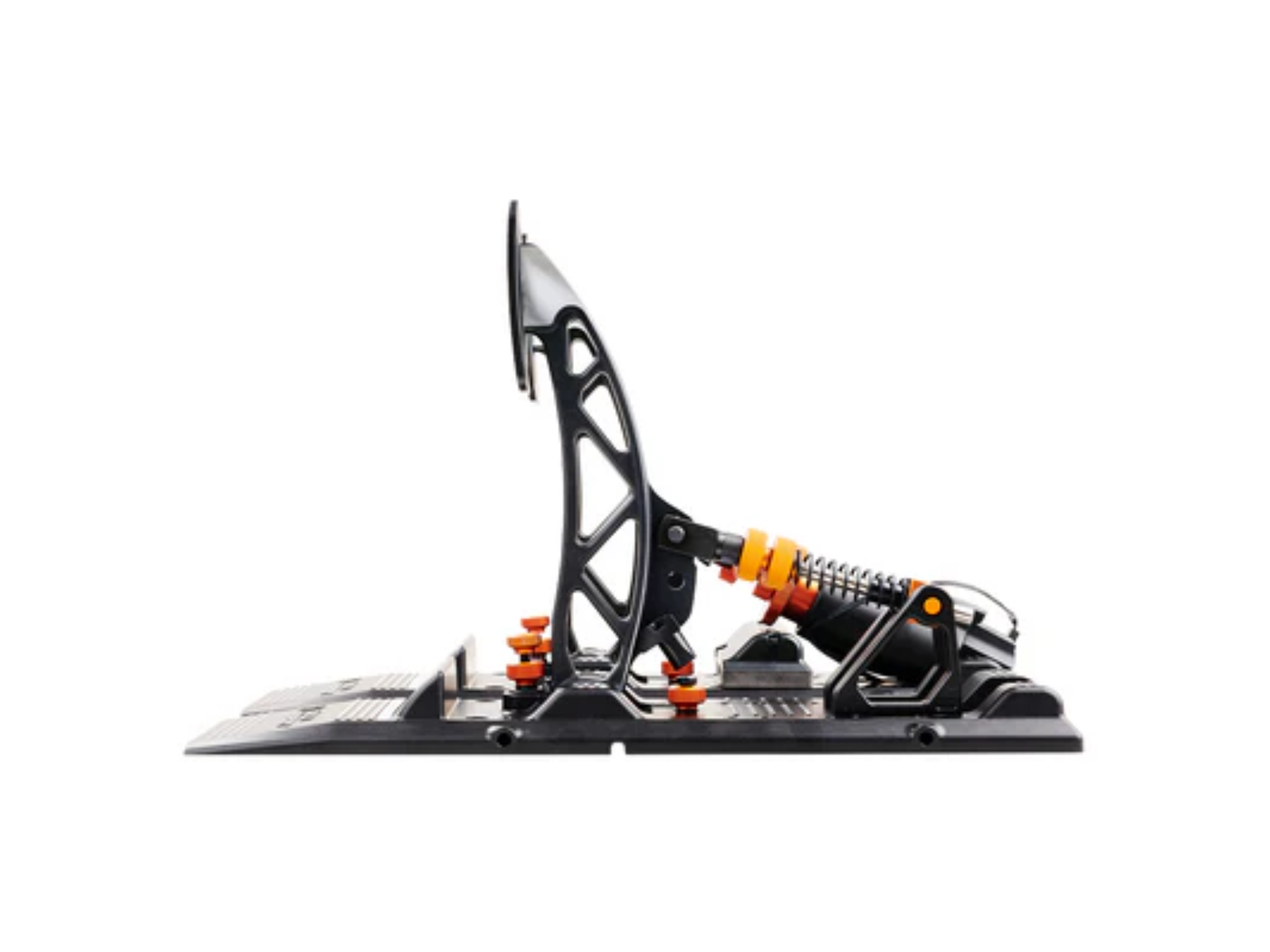

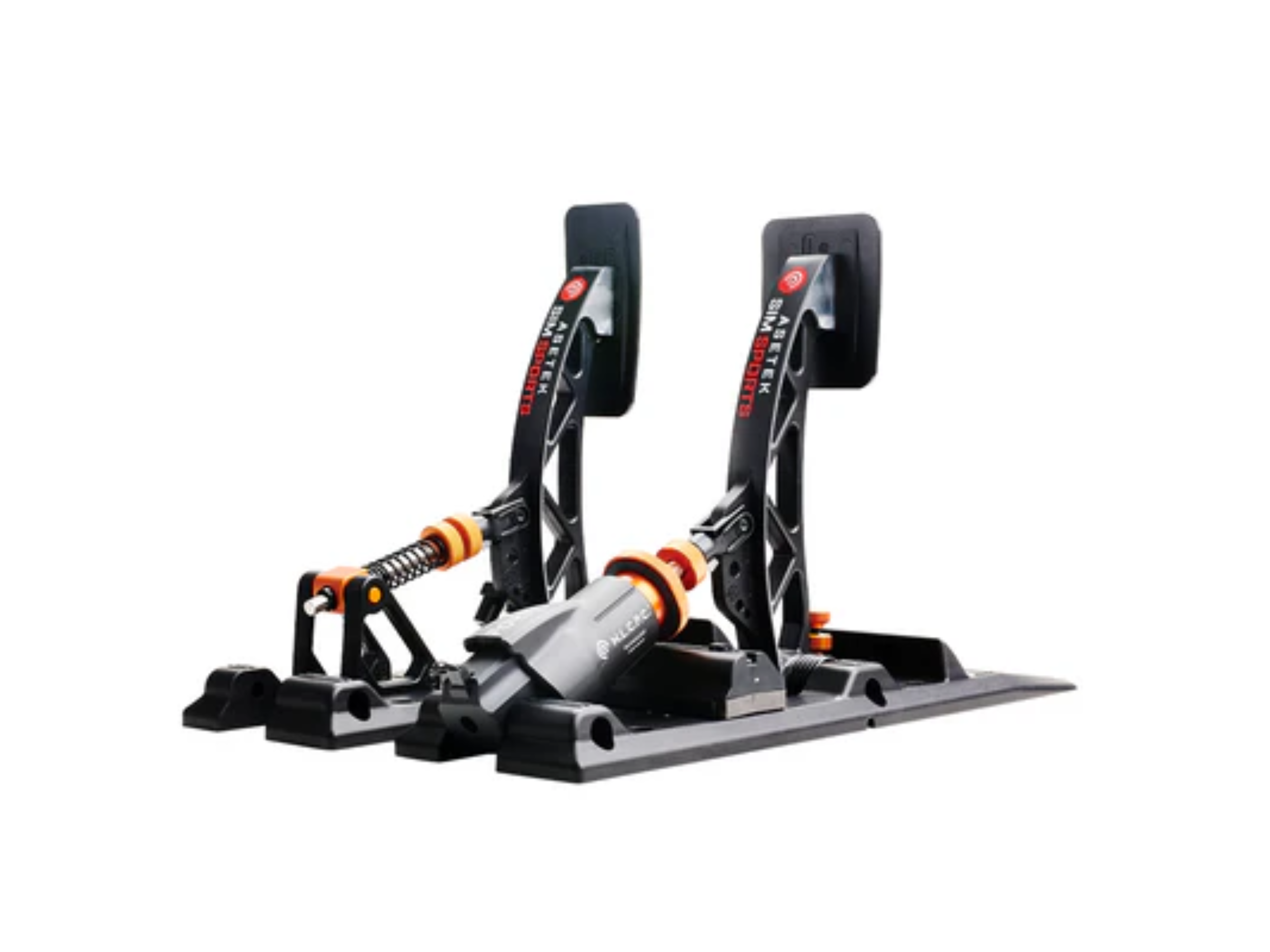

Asetek SimSports S Series Forte Sim Racing Pedals - Brake & Throttle (Split Set)

Want your racing simulator pedals to feel just like a real race car? The Asetek SimSports S Series Forte Sim Racing Pedals - Brake & Throttle (Split Set) gives you total control and a realistic racing feel—all built to last.

Key Features:

• Adjustable Design: Set the exact distance between throttle and brake pedals for your perfect fit.
• Realistic Brake Feel: Uses Asetek’s M.L.C.P.C. (Mechanical Load Cell Powered Cylinder) brake for up to 180 kg of pedal force, simulating a real race car’s braking.
• Consistent Performance: Brake hardness stays firm over time—no fading like cheaper pedals.
• Quick & Easy Setup: Connect both pedals with one cable. All adjustable parts are color-marked—no tools needed.
• Fine-Tune with Software: Use Asetek SimSports RaceHub to customize pedal feel.
• Upgrade Ready: Compatible with the Invicta Clutch System. Forte clutch plate included.
• Made in Denmark: Designed, engineered, and assembled for top-tier quality.

Perfect for building the best, most realistic racing simulator without going full hydraulic.

General Features

• Sleek, minimalistic Danish design — made in Denmark.
• Durable all-black anodized aluminum pedal base and arms with CNC-machined accents.
• Sock-friendly pedal plates, vertically adjustable for comfort during long sessions.
• Integrated heel rest with customizable RGB LED lighting (controlled via RaceHub).
• Save all calibrations (pressure, deadzones, etc.) directly to onboard memory—works across all games (just set min/max in-game).
• Single USB connection for throttle & brake (and clutch if added).
• All mechanical adjustments are color-coded orange for easy tuning.
• 16-bit in-house electronics for ultra-precise input.
• Built to last—tested to over 1,000,000 activations.
• Eco-friendly manufacturing: 100% re-use of waste materials.
• Easy to upgrade by adding the Forte clutch pedal (plate included).

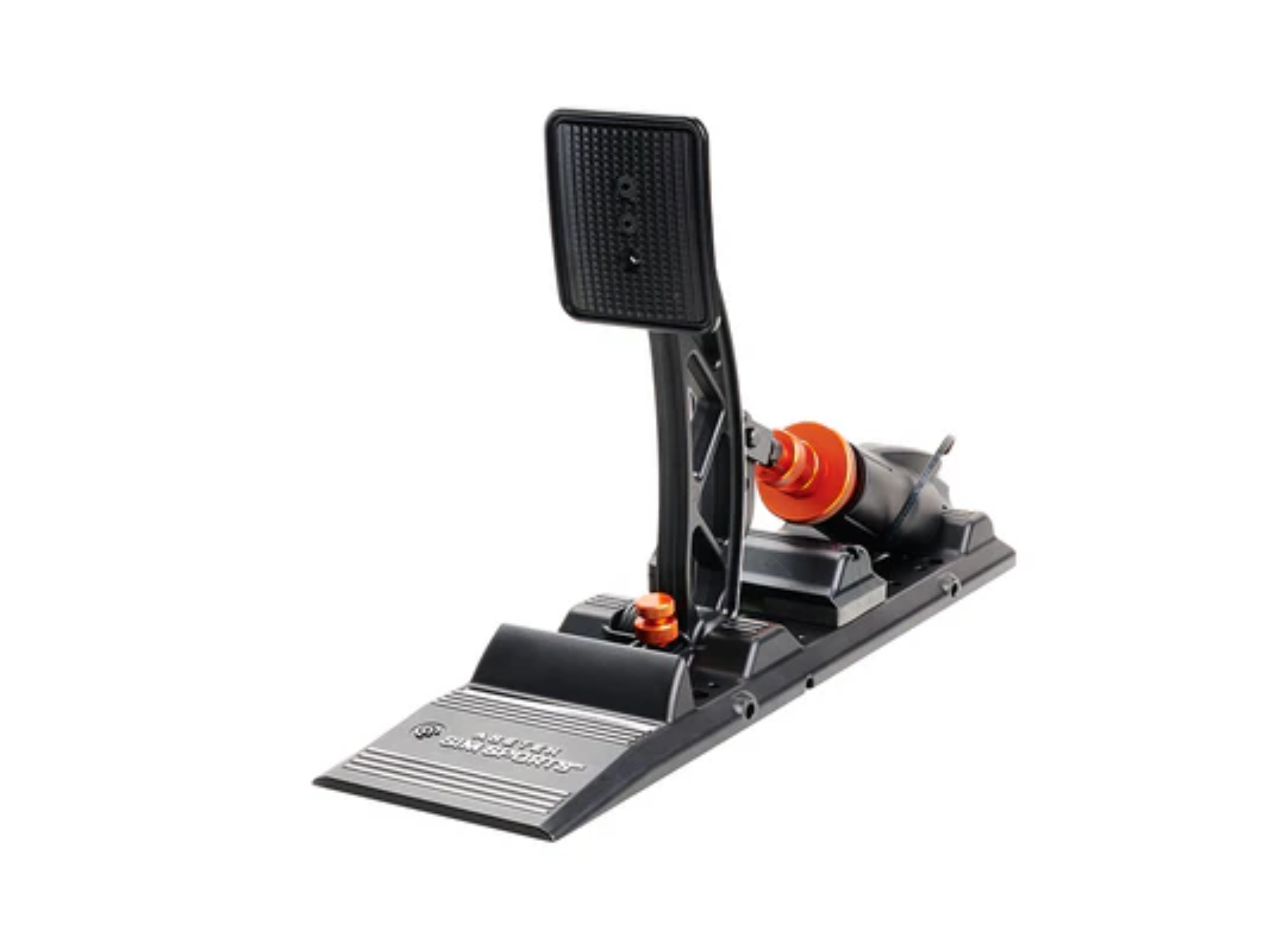

Brake System

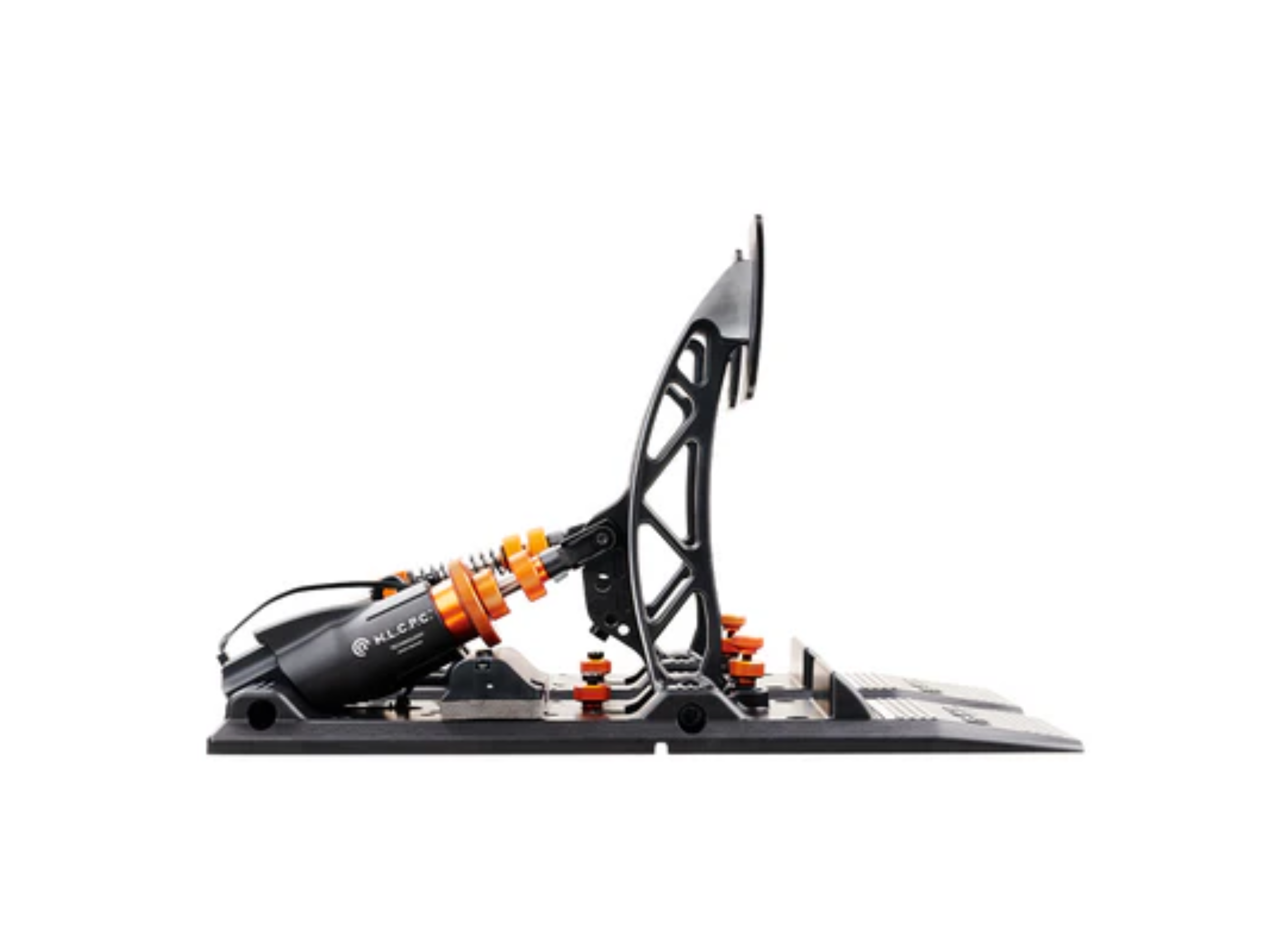

• Patent-pending M.L.C.P.C. brake cylinder delivers a true race car brake feel.
• Strong die-cast aluminum pedal arm with ball bearings and bronze bushings.
• Load cell senses up to 180 kg of force for ultra-realistic braking.
• Two-stage brake system mimics real brake pedal softness and firmness.
• Comes with three interchangeable elastomers to adjust pedal hardness.
• Manually adjustable brake pad “bite point” for realistic initial feel.
• Pedal arm rated for 200 kg of force with a 700 kg burst limit.

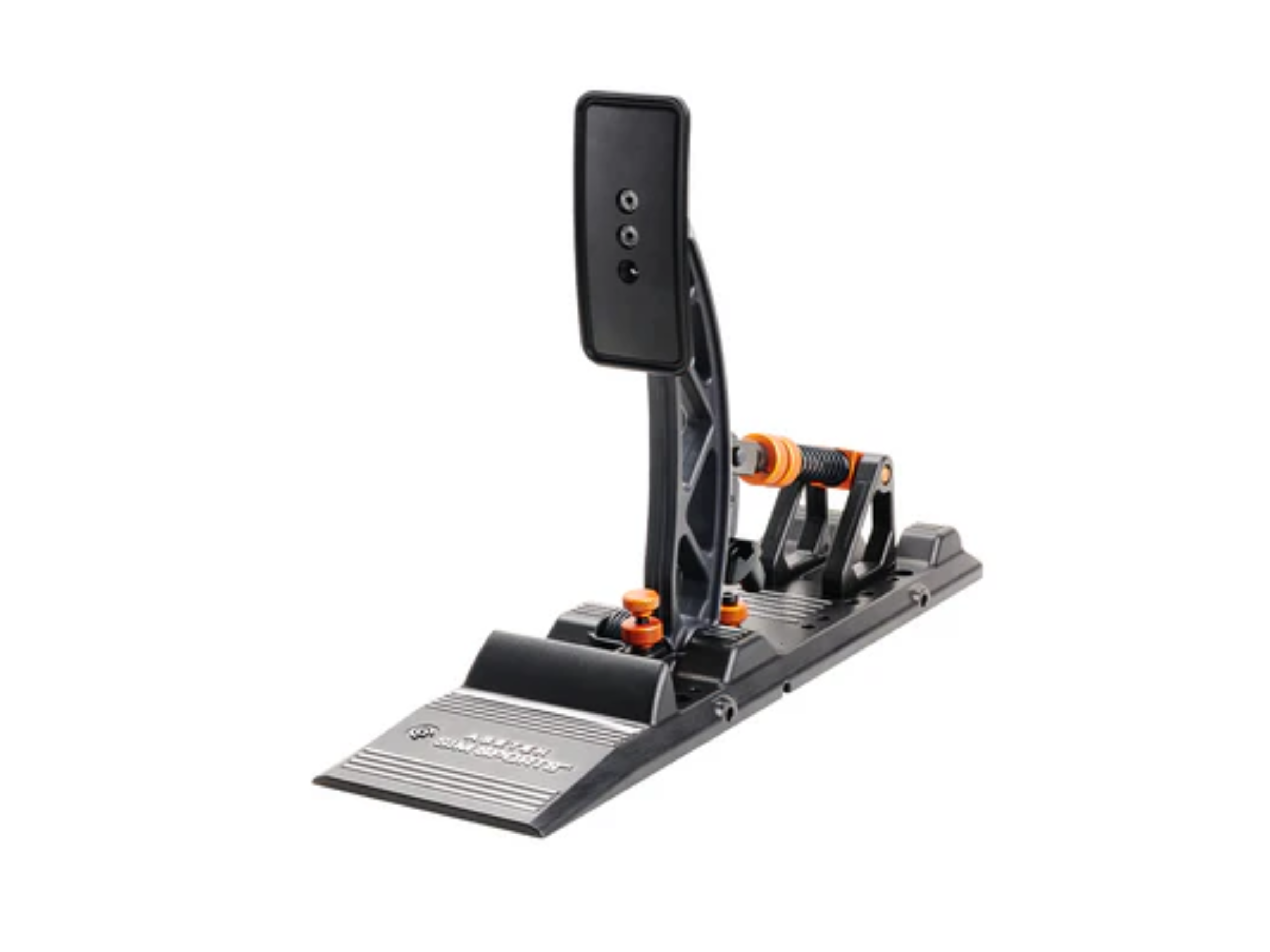

Throttle System

• Zero-play die-cast aluminum pedal arm with high-durability bearings and bushings.
• 16-bit magnetic wireless hall sensor—no wear, no maintenance.
• Fine-tune throttle response curves in RaceHub software (linear, progressive, etc.).
• Adjustable pedal hardness, travel, and stop positions.
• Includes interchangeable springs for added stiffness.
• Pedal arm also rated for 200 kg force and 700 kg burst pressure.

Dimensions

• Size: 457 mm (D) x 212 mm (W) x 256 mm (H)
• Weight: 3 kg

Compatible with all ASR-Brand SimRacing Chassis featuring the Steel Pedal Plate. Not compatible with Advanced SimRacing's Aluminum Pedal Tray & Adjustable Heel Rest.

Devices

• PC - Windows 10 and Windows 11
• Console support planned in the future

Games

• Assetto Corsa
• Assetto Corsa Competizione
• DiRT Rally
• DiRT Rally 2.0
• F1 Series
• iRacing
• Project Cars 2
• rFactor 2
• And many more (all games that accept direct input devices)
