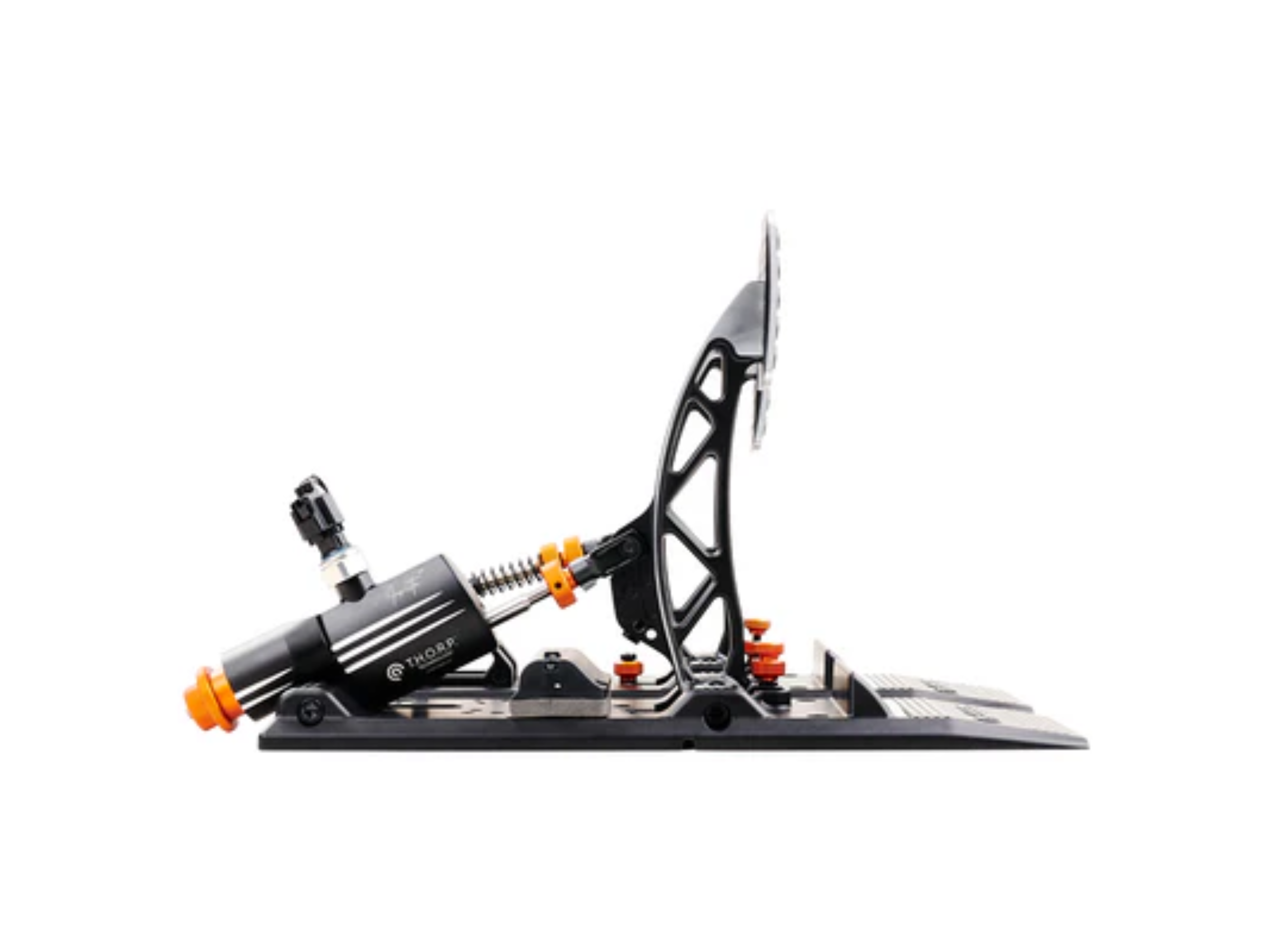

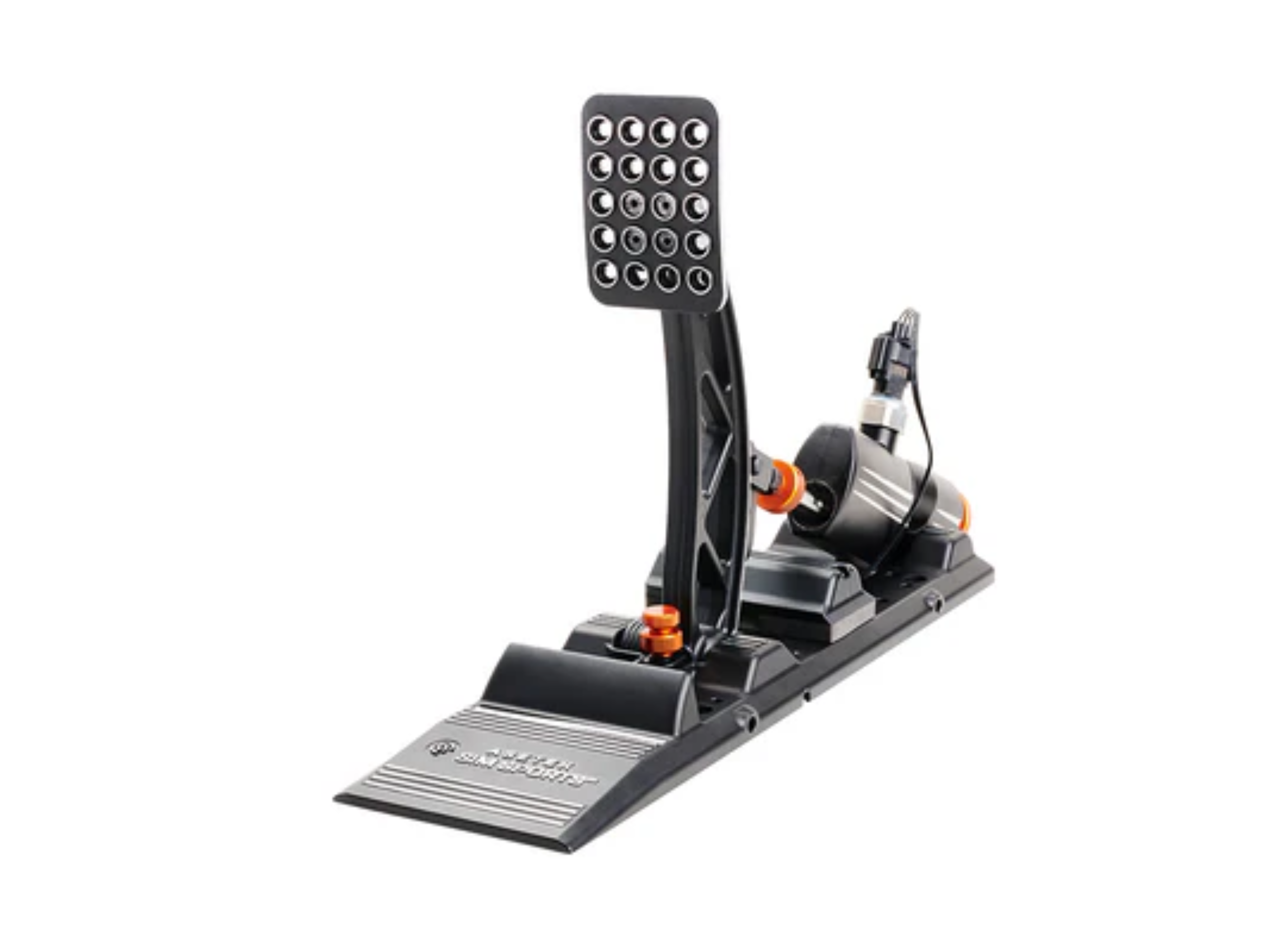

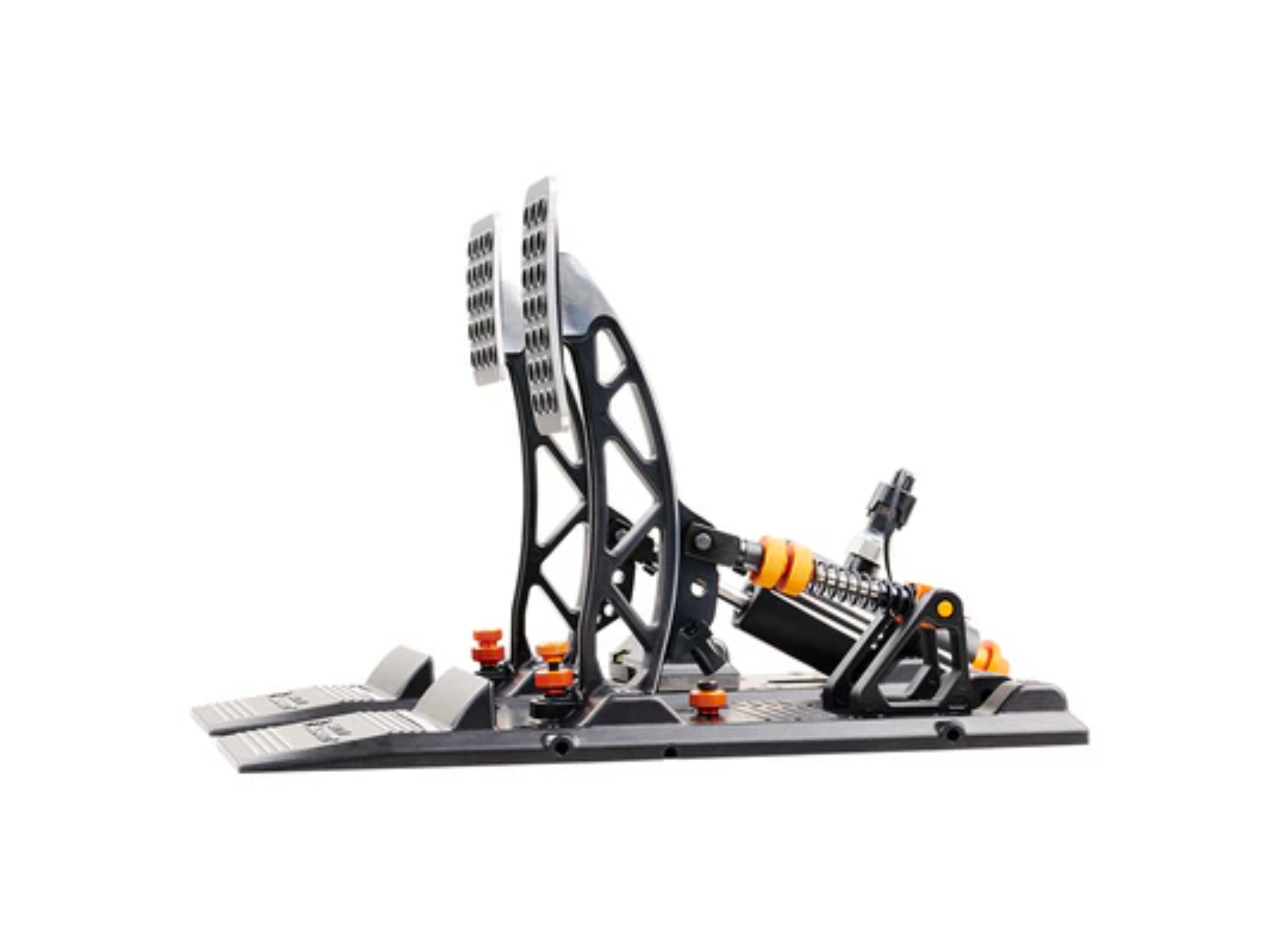

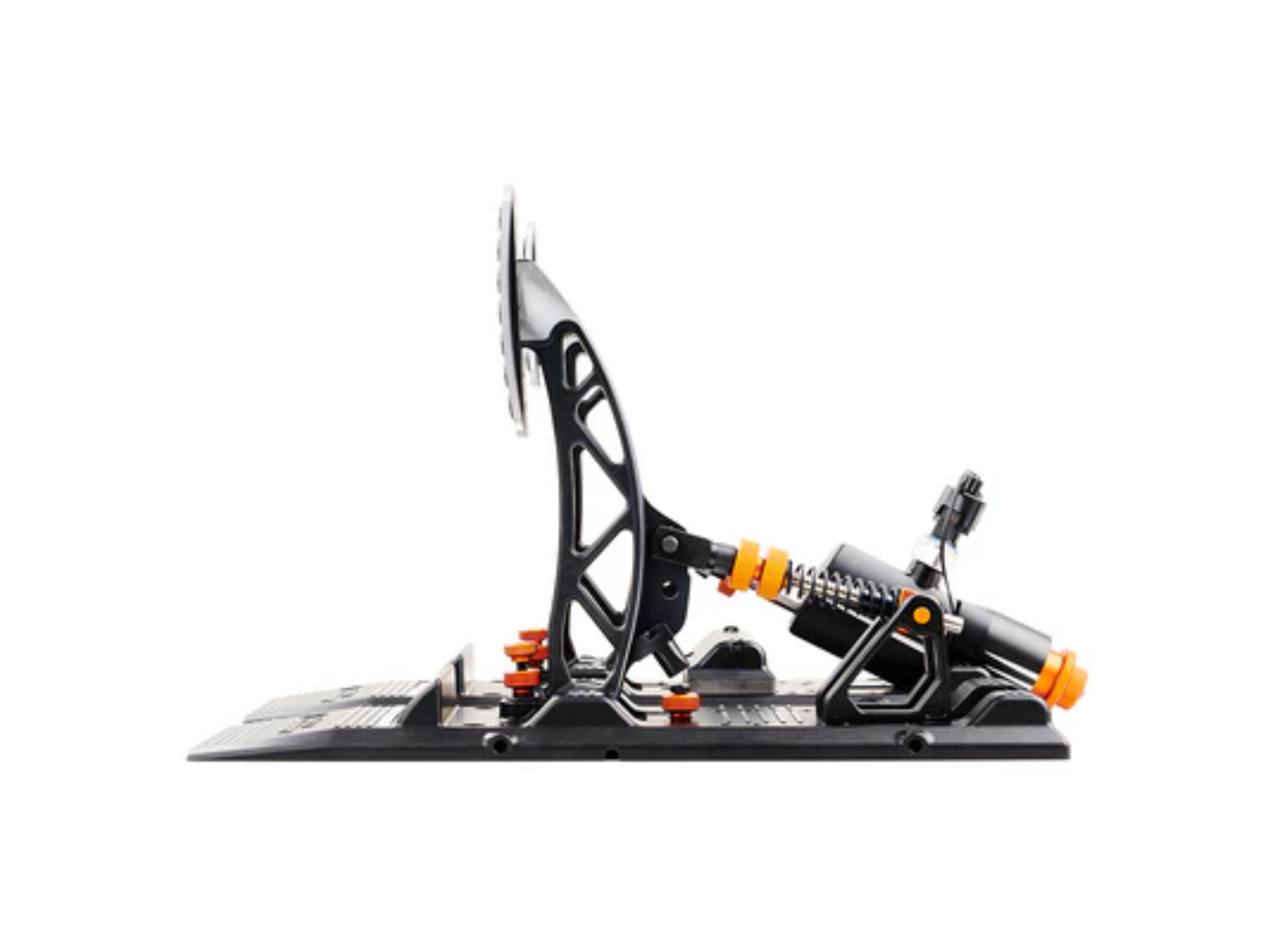

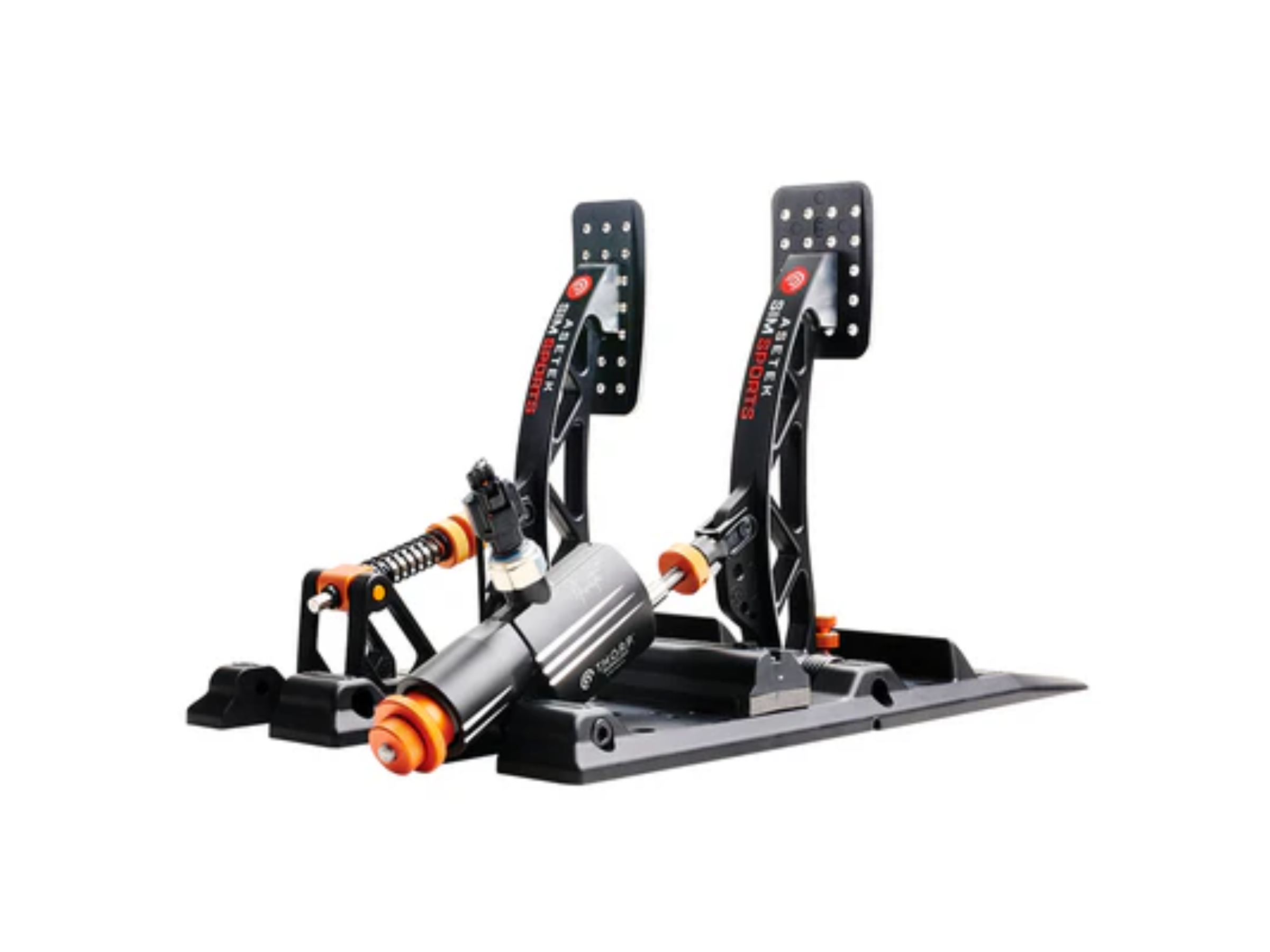

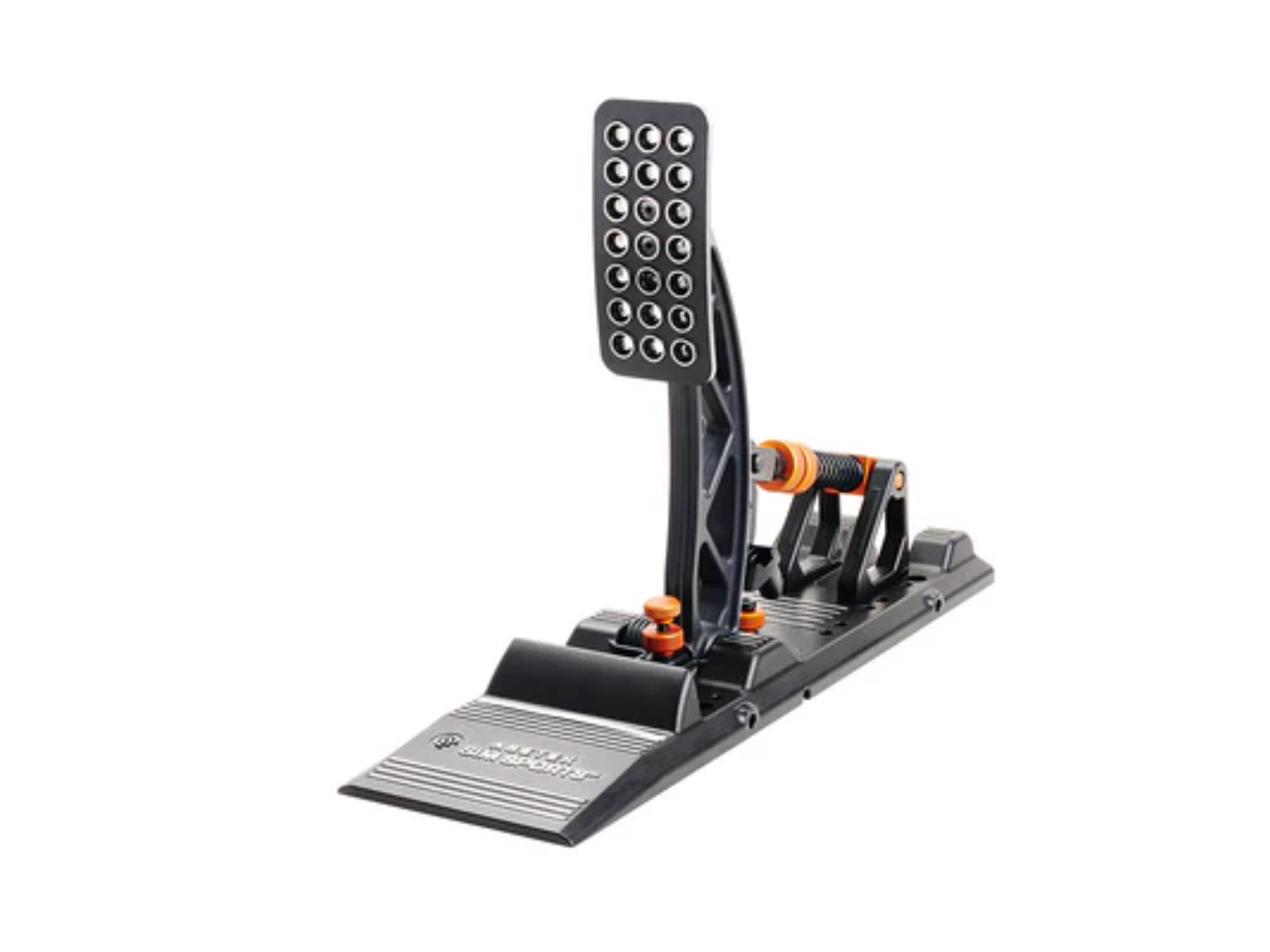

Asetek SimSports S Series Invicta Sim Racing Pedals - Brake & Throttle (Split Set)

Want to feel like you're driving a real race car at home? The Asetek SimSports S Series Invicta Sim Racing Pedals - Brake & Throttle (Split Set) gives you full control and real-world racing feel. Built for serious racers who want the best racing simulator experience.

Key Features:

• Adjustable Pedal Distance: Set the brake and throttle spacing to fit your perfect driving style.
• Hydraulic Brake System (T.H.O.R.P.): Feels like pressing a real race car brake—hard, solid, and consistent.
• Plug-and-Play Ready: Easy setup, no special skills needed.
• Highly Adjustable: Customize pedal travel, stiffness, and feel to match your preference.
• Built to Last: Engineered in Denmark, tested with 100 bars of hydraulic pressure & up to 200 kg pedal force.
• Advanced Tuning: Compatible with Asetek SimSports RaceHub software for fine-tuning.

If you want to build the best, most realistic racing simulator, these pedals are a game-changer.

General Features

• Clean, radical Danish design—minimalist and sleek.
• Fully adjustable pedal stops, travel distance, and pedal plates (X & Y axis).
• All-black anodized aluminum build with CNC machined details.
• Integrated heel rest & RGB LED lighting (customizable in RaceHub software).
• One simple USB connection, whether using 2 or 3 pedals.
• Calibration saved to onboard memory (no need to recalibrate every time).
• Easy adjustments: mechanical parts marked in orange for quick setup.
• In-house 16-bit electronics & automotive-grade sensors for precision.
• Sustainable design—100% re-use of waste materials.
• Built & tested to last over 1 million activations.
• Optional clutch pedal & sock-friendly pedal plates available.

Brake System

• Die-cast aluminum pedal arm with high-durability bearings & bushings.
• Hydraulic brake cylinder made from forged aluminum, CNC machined.
• 100 bar pressure sensor = 180 kg force capacity (tested up to 700 kg burst pressure).
• Three elastomers included to adjust pedal stiffness.
• Adjustable initial brake touch for realistic pad-to-disc feel.
• Expansion chamber prevents elastomer overload—feels like a real race car.

Throttle System

• Same durable die-cast aluminum pedal arm design.
• 16-bit magnetic hall sensor (wireless, zero maintenance).
• Custom throttle curves via RaceHub—adjust for dry, wet, or preferred driving style.
• Adjustable pedal hardness, travel, stop, and interchangeable springs.
• Engineered to withstand 200 kg force & 700 kg burst pressure.

Dimensions & Weight

• Size: 457mm (D) x 212mm (W) x 256mm (H)
• Weight: 3 kg

Compatible with all ASR-Brand SimRacing Chassis featuring the Steel Pedal Plate. Not compatible with Advanced SimRacing's Aluminum Pedal Tray & Adjustable Heel Rest.

Devices

• PC - Windows 10 and Windows 11
• Console support planned in the future

Games

• Assetto Corsa
• Assetto Corsa Competizione
• DiRT Rally
• DiRT Rally 2.0
• F1 Series
• iRacing
• Project Cars 2
• rFactor 2
• And many more (all games that accept direct input devices)
