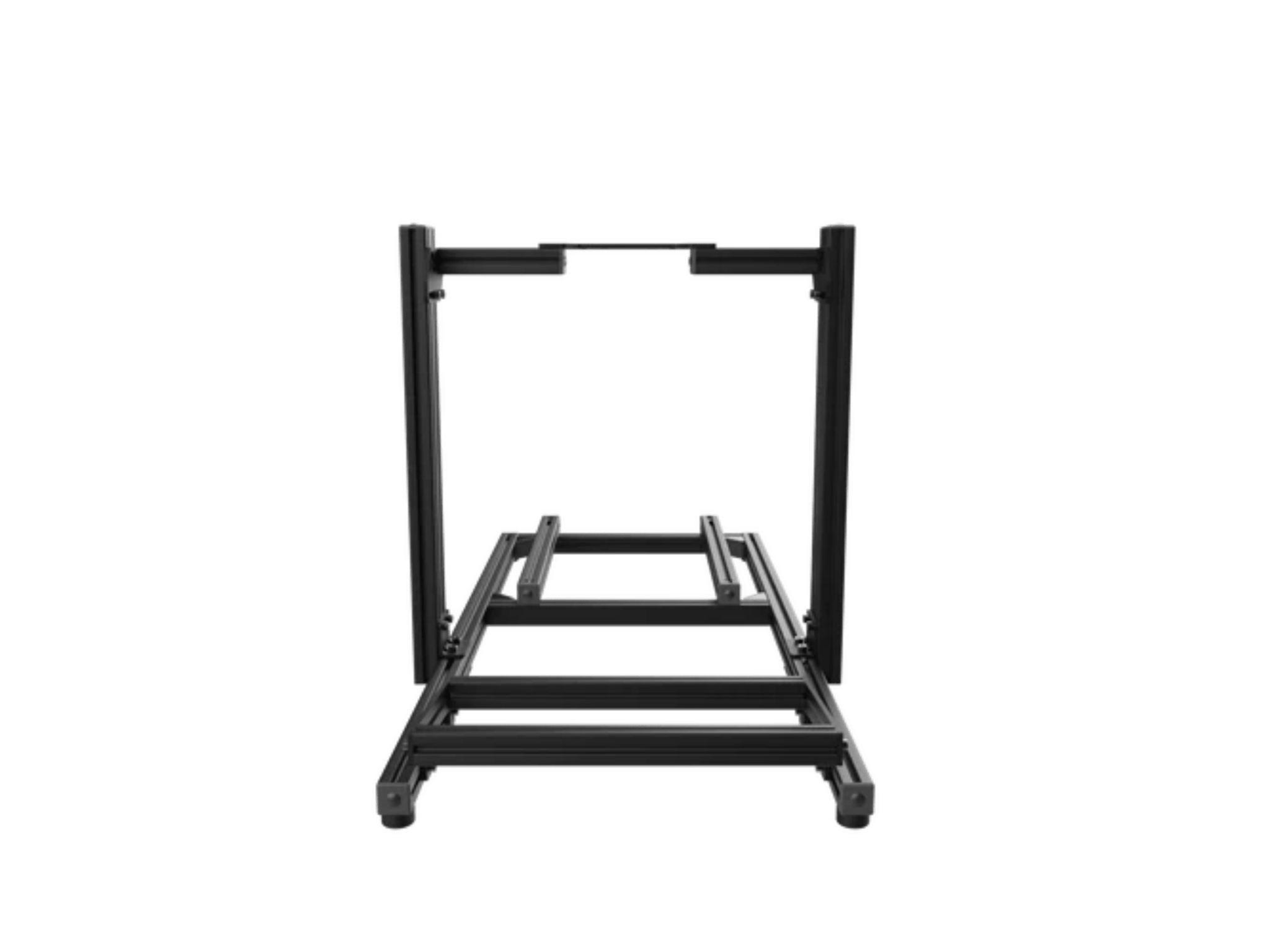

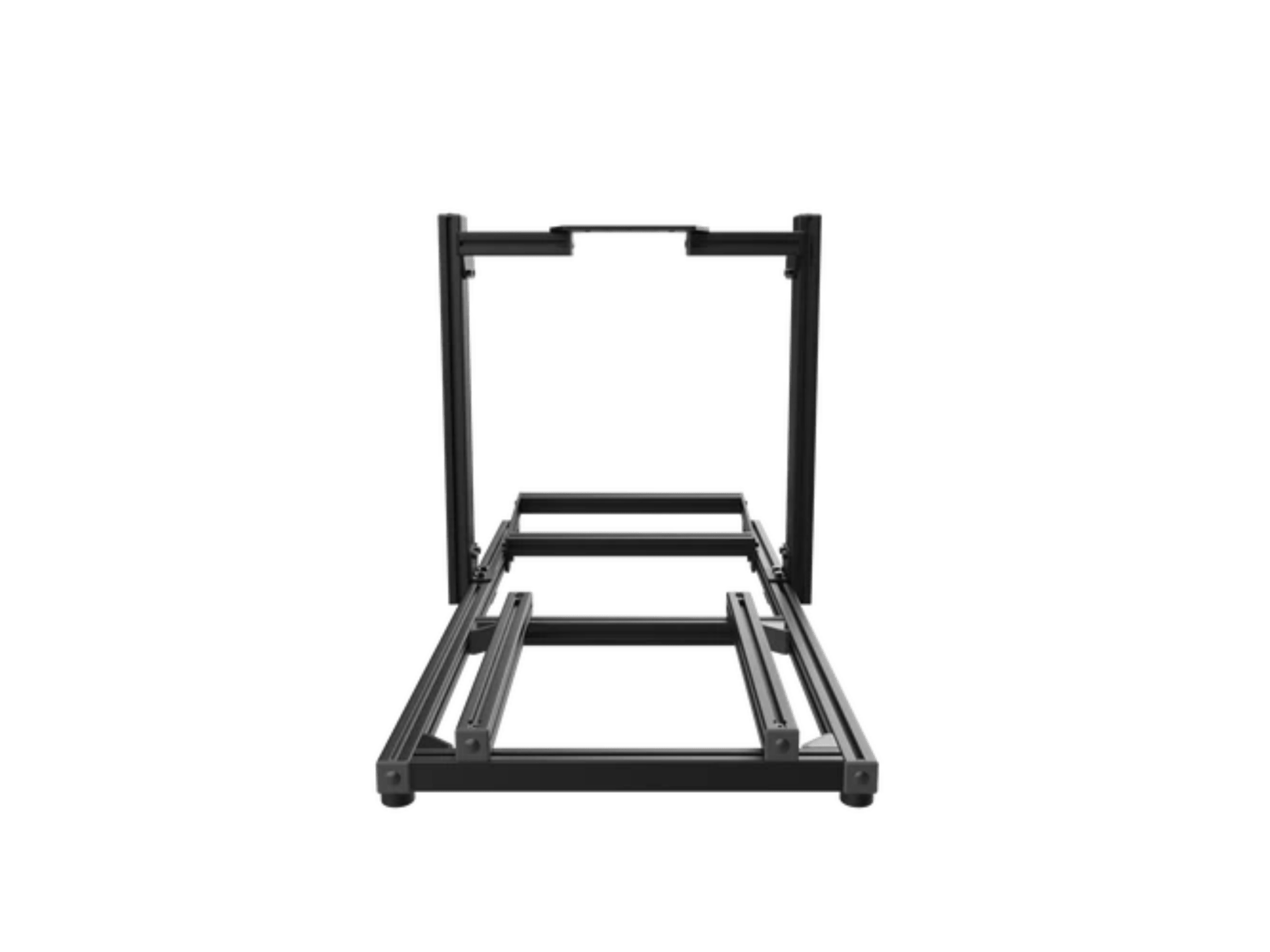

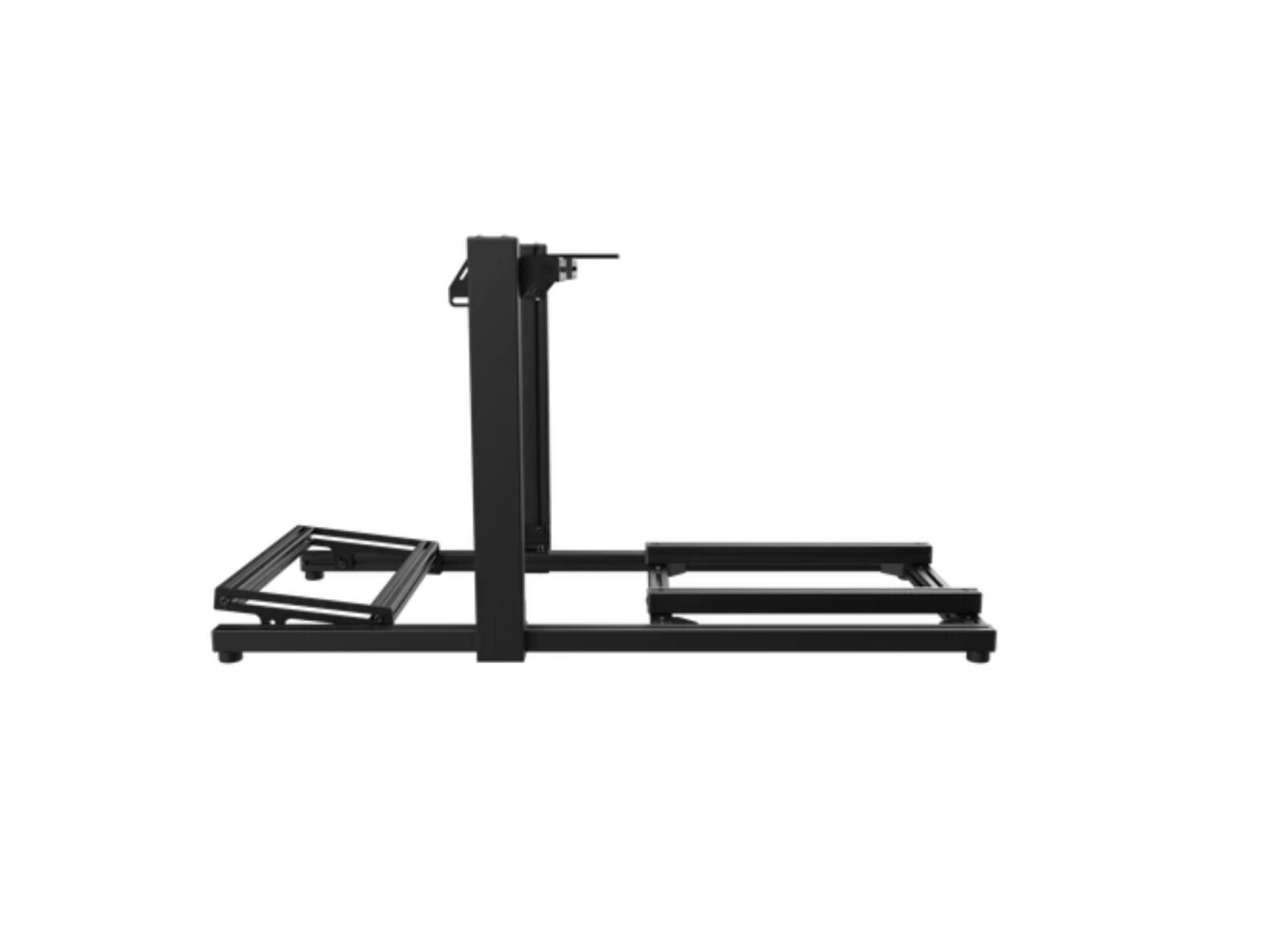

ASR 1 Wheel Deck (Generation 2)

Looking to build the most realistic racing simulator setup without compromising on quality? Meet the Advanced Sim Racing chassis, designed to take your racing experience to the next level!

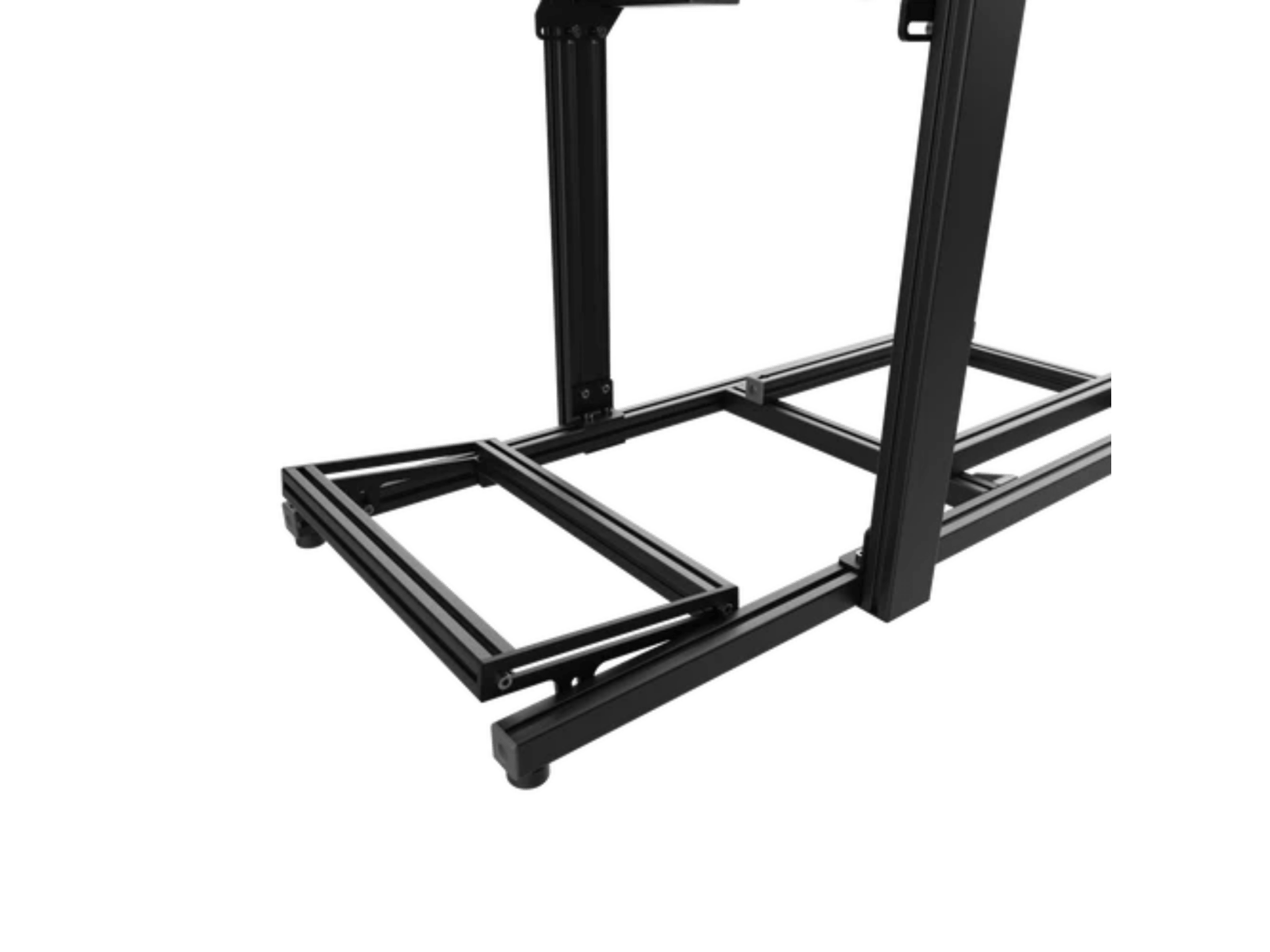

With a brand new wheel deck design, this chassis offers more flexibility and adjustability, so you can get your wheelbase just where you want it. The updated pedal tray features durable aluminum profile cross beams and corner gussets, giving you unmatched compatibility and strength. Plus, the improved assembly system ensures maximum rigidity and stability—key for a smooth, high-performance ride.

• Built for both entry-level and serious sim racers.
• Comes with ASR's signature "Flat Face" Extruded Aluminum Profile, making it both strong and sleek.
• Tough 1.5" aluminum profile base that’s strong enough to support resistance-type or belt-driven wheelbases.
• Built to last, made from high-grade alloy aluminum sourced in the USA
• Customizable wheel deck and allows for pedal height, angle, and position adjustments.
• Fits rcers up to 6'6".
• Choose between two Shifter Arm options to take your sim racing to the next level

The ASR 1 is the best budget-friendly choice for serious racers who want performance, durability, and value all in one package!

• Base composition : 1.5" x 1.5"
• Steering column composition : 3" x 1.5"

• Base length : 50"
• Base width : 22"
• Chassis height from adjustable rubber feet to tip of the steering column : 26.5"
• Pedal plate : 3/16" Solid steel
• Weight when assembled (w/o accessories): 69lbs.

Box 1 (Aluminum)

• 2 x Aluminum profile 50" x 1.5" x 1.5"

• 2 x Aluminum profile 22" x 1.5" x1.5"

• 2 x Aluminum profile 19" x 1.5" x1.5"

• 2 x Aluminum profile 18.5" x 1.5" x 1.5"

• 2 x Aluminum profile 26" x 3" x 1.5"

Box 2 (Hardware, Wheel Deck & Pedal Plate)

• 2 x Pedal deck sides

• 2 x Lower stiffening plates

• 2 x upper L plates

• 8 x Corner Gussets

• Endcaps

• 8 x 1.5" Endcaps

• 2 x 3" Endcaps

• 16 x Pushpins

• 40 x M8 Screws (16mm)

• 40x M8 T-Nuts

• 4 x Rubber feet

• 4 x M6 Screws (20mm)

• 4 x M6 T-Nuts

• Seat mounting hardware

• 4 x M8 Screws (12mm)

• 4 x M8 T-Nuts

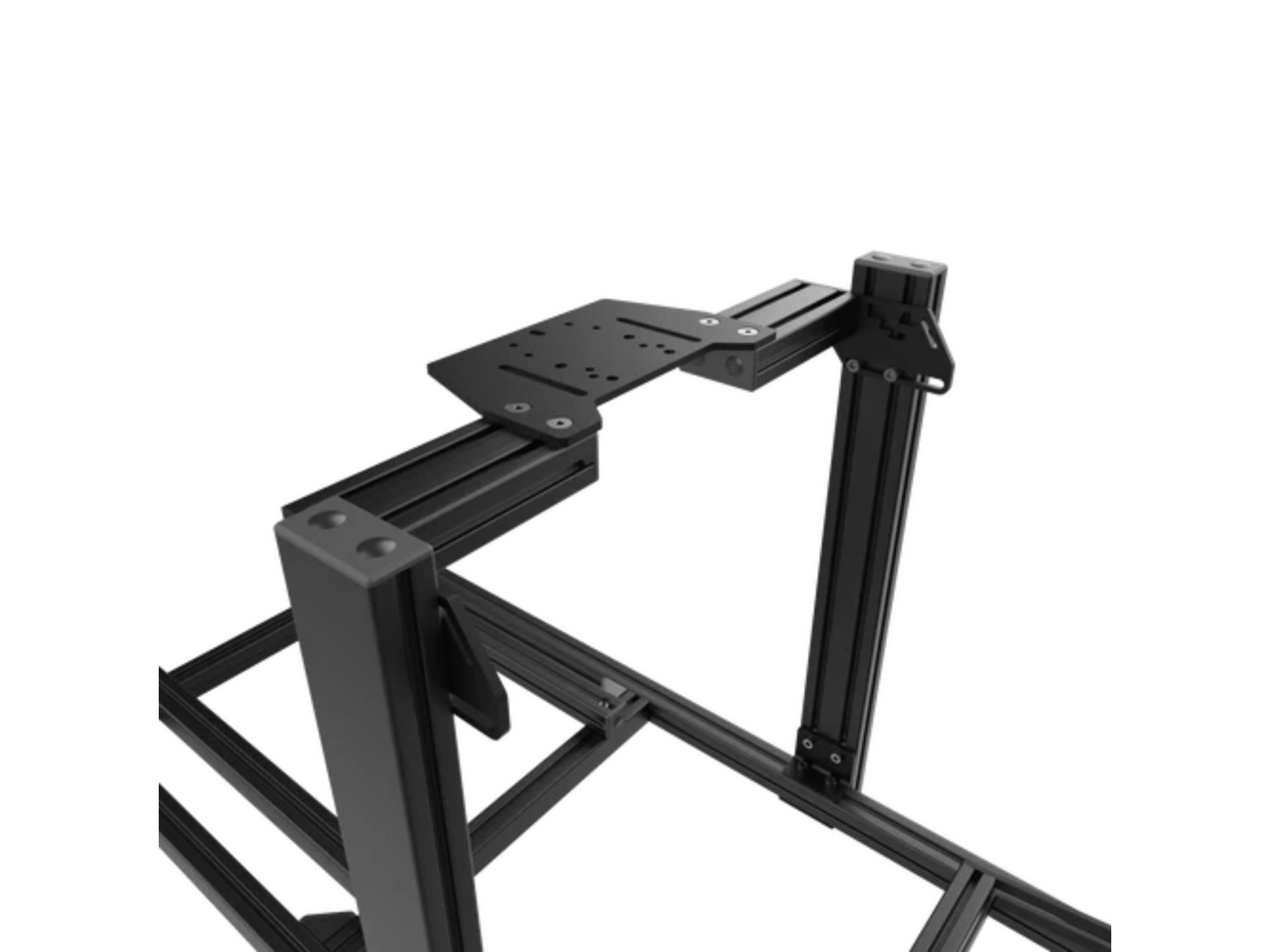

• Wheel Deck Components

• Steel Plate with various mounting patterns

• 2 x Aluminum profile 6 7/8" x 3" x 1.5"

• 8 x Flathead socket cap screws (16mm)

• 8 x M8 T-Nuts

Standard Wheel Deck

• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)

Fanatec (Podium DD & CSL DD Side Mount)

• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+

Steel Pedal Plate

• Sim Pedals Sprint

• Sim Pedals Ultimate

• Sim Pedals Ultimate+

• Asetek SimSports Invicta Sim Racing Pedals
• Heusinkveld
• Thrustmaster products
• Fanatec products (except the CSR Pedals)
• Logitech products
• Simtrecs ProPedal GT
• Asetek SimSports Invicta Sim Racing Pedals
• Simagic P1000 & P2000 & their inverted versions
• And much more (please inquire for specific pedal sets)

Manual

ASR1(Generation 2) Assembly Guide By Advanced SimRacing(PDF)
