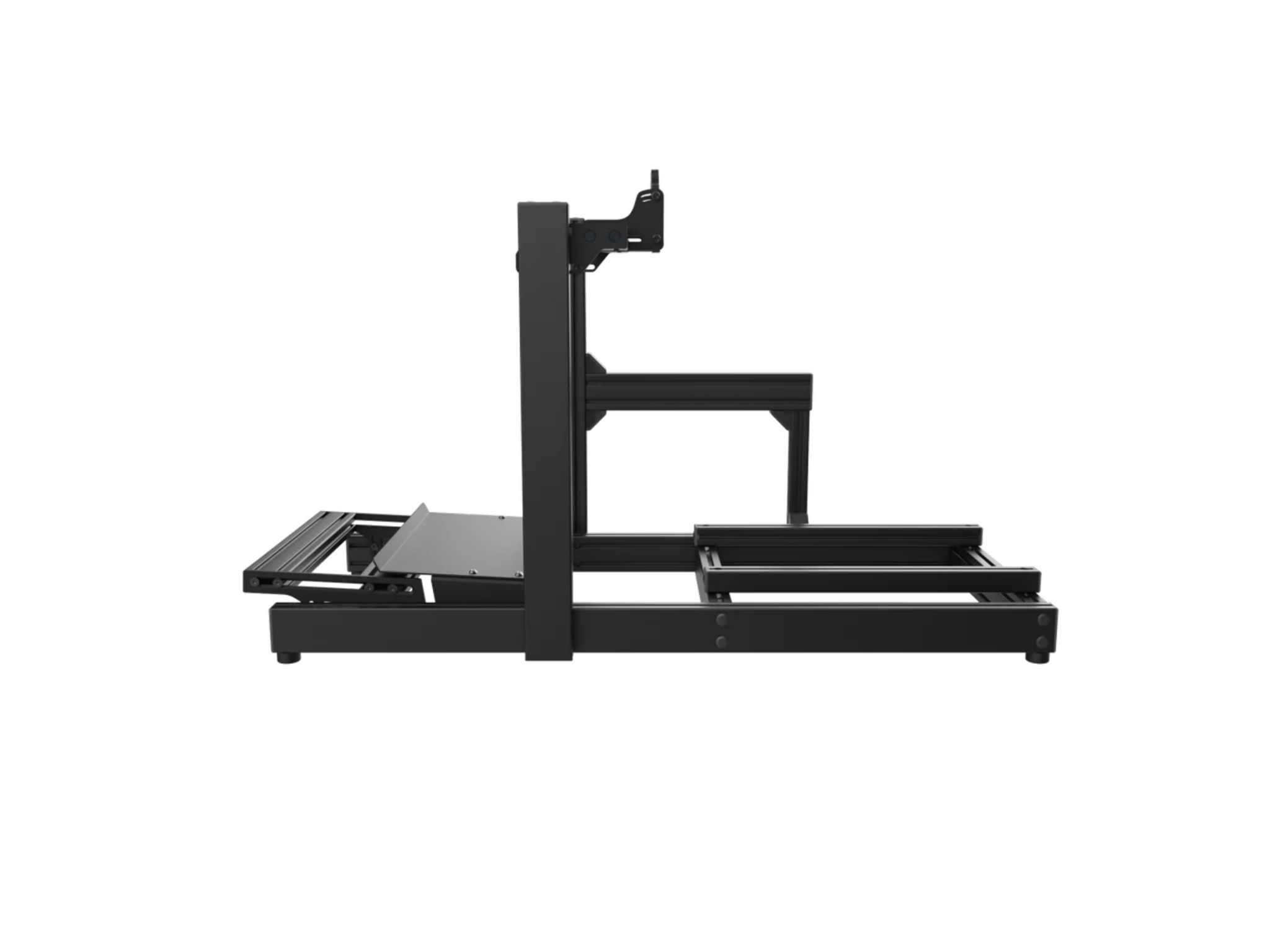

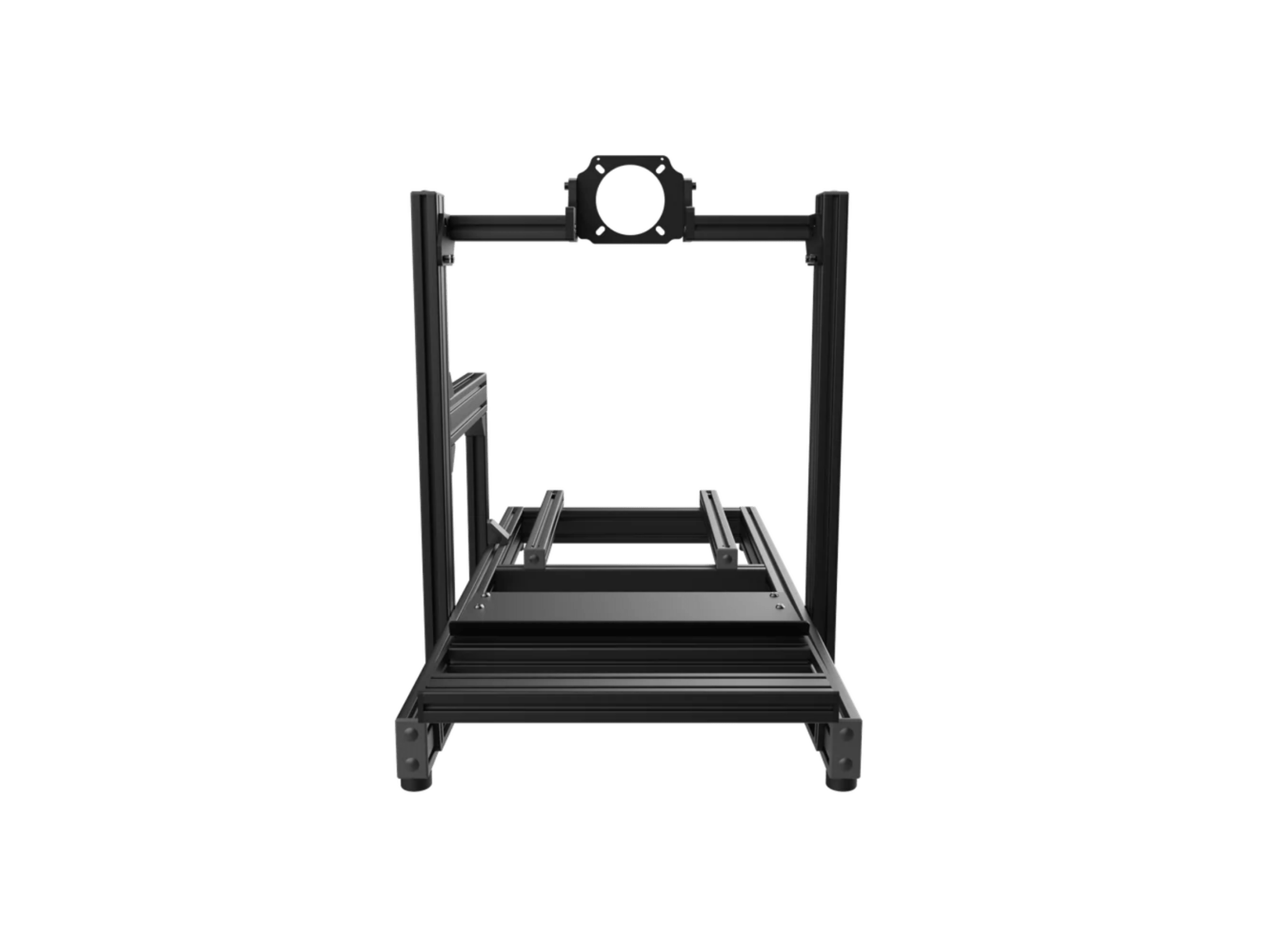

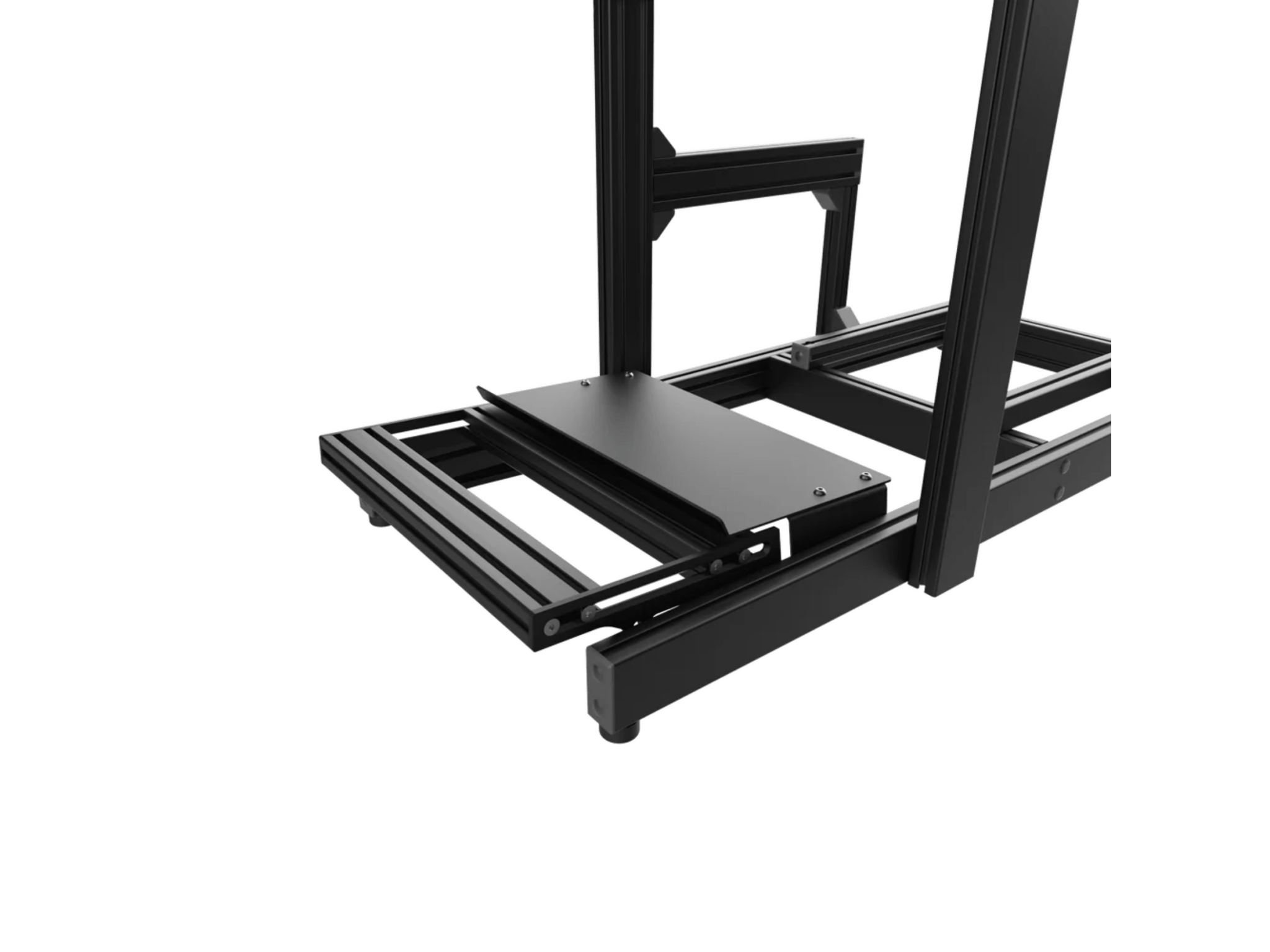

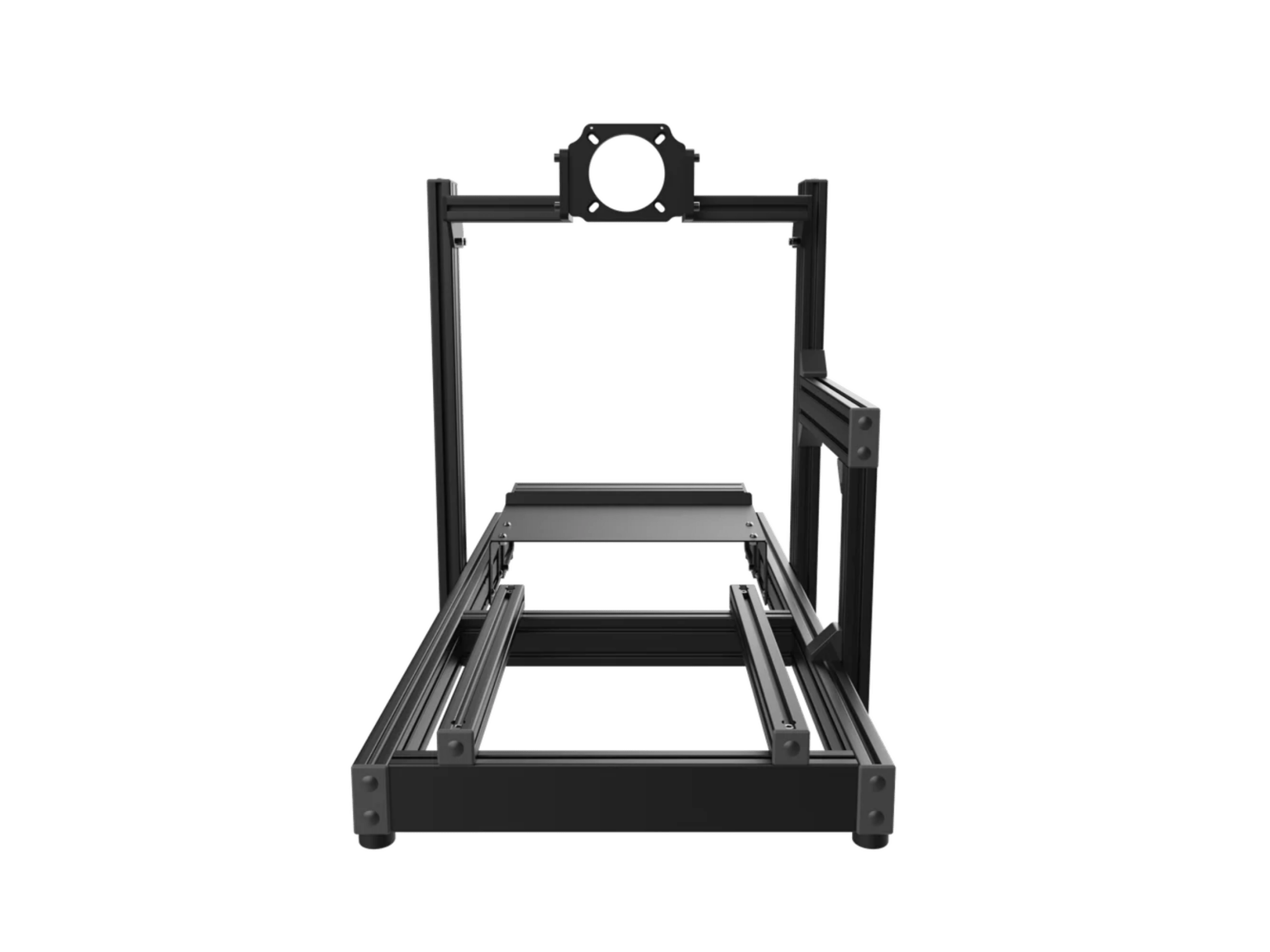

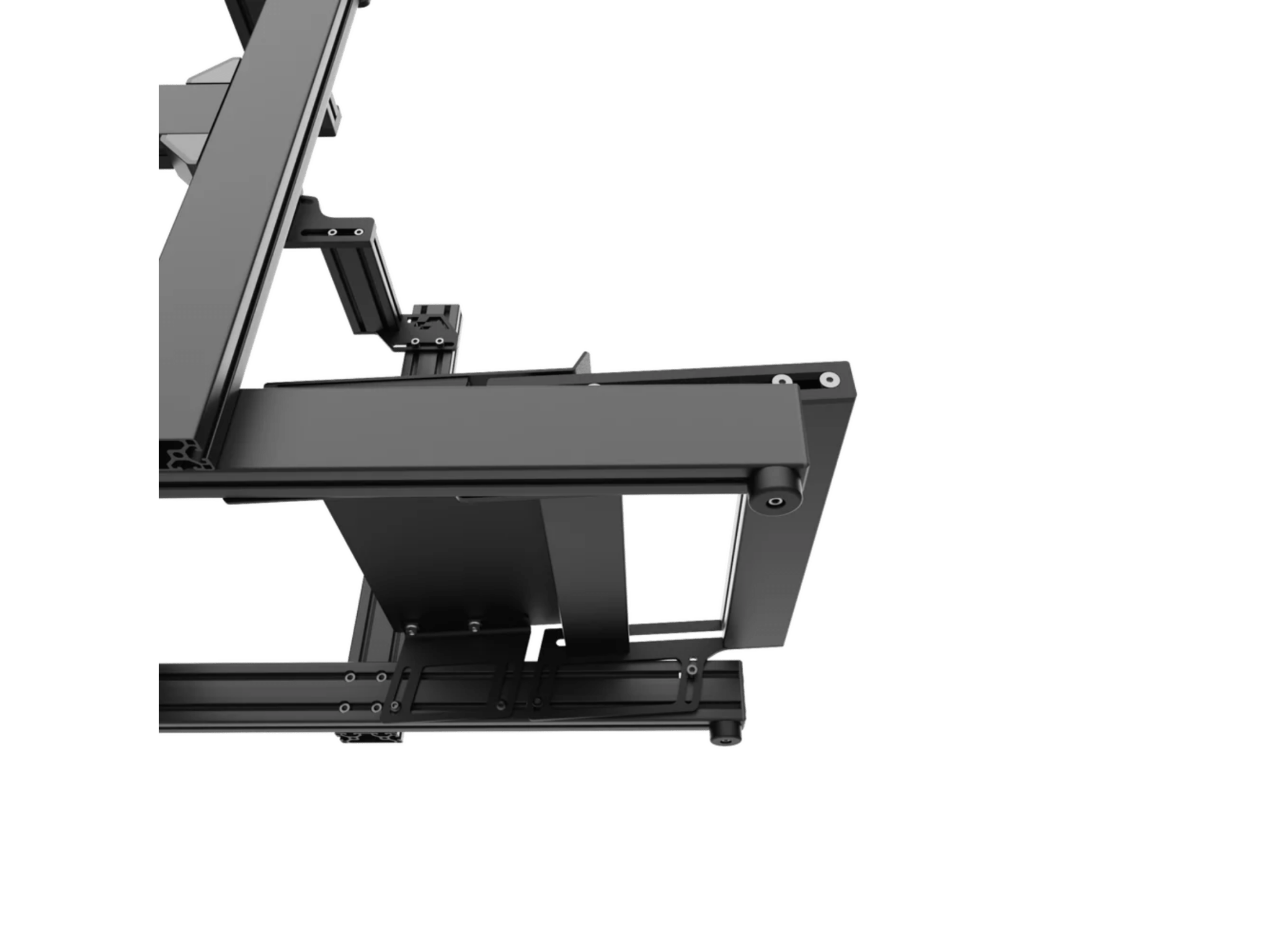

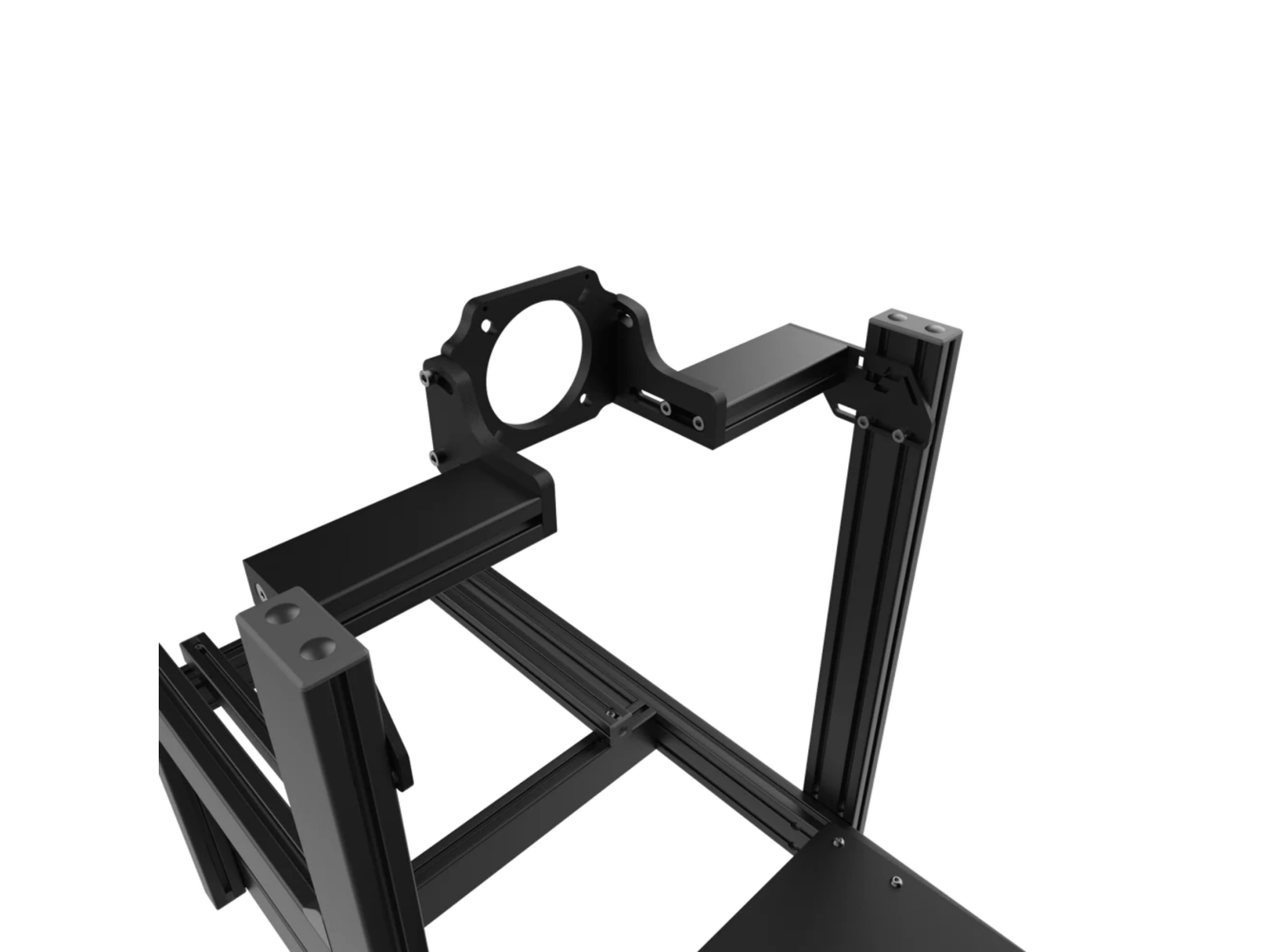

ASR 3 Wheel Deck (Generation 2)

Want the best racing simulator experience without any flex or weak points? Meet the ASR 3 by Advanced Sim Racing—a rock-solid, mid-range chassis designed for serious SimRacers who want maximum stability without breaking the bank. Built with a 3" extruded aluminum profile, this rig delivers zero flex, incredible rigidity, and full adjustability for your wheelbase and pedals.

With its new Generation 2 design, the ASR 3 is better than ever:

• Stronger & Faster to Build – Improved assembly with fewer parts for a quicker setup.
• New Wheel Deck & Pedal Tray – More flexibility and adjustability to find your perfect racing position.
• Built for Power – Supports belt-driven and direct-drive wheels with ease.
• Premium Matte Black Finish – Durable powder coat for extra protection and a sleek look.

Designed and manufactured in Canada, the ASR 3 is made to handle the most intense racing sessions. Whether you’re just starting out or upgrading your current setup, this is the best racing simulator chassis in its class.

Available with multiple wheel deck options:

• Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)
• Podium Side Mount (Covering the entire Fanatec line-up)

• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)
• Asetek Front Mount (Exclusively for Asetek Products)

• Base composition : 3" x 1.5"
• Steering column composition : 3" x 1.5"
• Base length : 50"
• Base width : 22"
• Chassis height from adjustable rubber feet to tip of the steering column : 28"
• Weight when assembled (w/o accessories):Â 71lbs.

Box 1 (Aluminum)

• 2 x Aluminum profile 50" x 3" x 1.5"
• 2 x Aluminum profile 28" x 3" x 1.5"
• 2 x Aluminum profile 19" x 3" x 1.5"
• 2 x Aluminum profile 18.5" x 3" x 1.5"
• 1 x Aluminum profile 18" x 3" x 1.5"
• 2 x Aluminum profile 22" x 1.5" x 1.5"
• 1 x Aluminum profile 13" x 1.5" x 1.5"

Box 2 (Hardware & Pedal Tray)

• 2X Pedal Tray side brackets
• Left and Right Heel Rest Side Brackets
• Heel Rest Plate
• 8 x Corner Gussets and Plastic Caps
• 22x M8 Screws (35mm)
• 22 x M8 Screws (16mm)
• 12 x M8 Screws (12mm)
• 4 x M8 locknuts
• 36 x M8 T-Nuts
• Endcaps
• 5 x 1.5" Endcaps
• 7 x 3" Endcaps
• 19 x Pushpins
• 4 x Rubber feet
• 4 x M6 Screws (20mm)
• 4 x M6 T-Nuts


Box 3 (Wheel Deck)

Common Content

• 8 x Flathead screws (16mm)
• 2 x Aluminum profile 6 7/8" x 3" x 1.5"
• 2 x wheel deck brackets


Standard Wheel Deck content

• Standard Steel Plate
• 2 x 3" endcaps
• 4 x pushpins
• Fanatec Side Mount Content
• 2 x DD side brackets (L & R)
• 2 x CSL DD spacers
• 4 x M8 Screws (16mm)
• 4 x M8 Screws (20mm)
• Simucube & MiGE Motors Front Mount Content
• 2 x DD side brackets (L & R)
• 1 x Front Mount Plate
• 4 x M8 screws (16mm)
• 4 x M8 screws (20mm)
• Asetek Front Mount Content
• 2 x DD side brackets (L & R)
• 1 x Asetek Mount Plate
• 4 x M8 screws (16mm)
• 4 x M8 screws (20mm)

Standard Wheel Deck

• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10
• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)

Fanatec (Podium DD & CSL DD Side Mount)

• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+

Asetek (Front Mount)

• All Asetek Wheel bases

Simucube & MiGE Motor (Front Mount)

• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases


Steel Pedal Plate

• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+
• Asetek SimSports Invicta Sim Racing Pedals
• Heusinkveld
• Thrustmaster products
• Fanatec products (Except CSR Pedals)
• Logitech products
• Simtrecs ProPedal GT
• Asetek SimSports Invicta Sim Racing Pedals
• Simagic P1000 & P2000 & their inverted versions
• And much more (please inquire for specific pedal sets)
