ASR 4 Wheel Deck | "Flat Face" Extruded Aluminum Profile (Generation 2)

Are you looking to take your SimRacing experience to the next level? The ASR 4 Wheel Deck is designed to give you the flexibility, stability, and customization you need for maximum performance. With its adjustable design, you can position your wheelbase and pedals exactly where you want them for optimal comfort and control during your racing sessions.

Built with a reinforced 4.5" aluminum base and steering column, this high-end chassis ensures zero flex, giving you the rigidity needed to handle even the most powerful SimRacing peripherals. The ASR 4 is made from premium alloy aluminum sourced in the U.S. and finished in a durable, matte black powder coat, so it’s built to last and maintain its sleek, head-turning look.

With multiple wheel deck options and an adjustable pedal tray, the ASR 4 is perfect for racers of all heights (up to 6'6") and different setups. Whether you prefer a classic or Pro wheel deck, or need compatibility with Fanatec, MiGE, or Asetek wheelbases, you can configure your simulator to suit your exact needs for both short and long racing sessions.

Box 1 (Aluminum)

• 1 x Aluminum profile 50" x 4.5" x 1.5"

• 1 x Aluminum profile 28" x 4.5" x 1.5"

• 1 x Aluminum profile 19" x 3" x 1.5"

• 1 x Aluminum profile 18.5" x 3" x 1.5"

• 1 x Aluminum profile 18" x 3" x 1.5"

• 1 x Aluminum profile 13" x 1.5" x 1.5"

• 1 x ASR Front Plate

Box 2 (Aluminum)

• 1 x Aluminum profile 50" x 4.5" x 1.5"

• 1 x Aluminum profile 28" x 4.5" x 1.5"

• 1 x Aluminum profile 19" x 3" x 1.5"

• 1 x Aluminum profile 18.5" x 3" x 1.5"

• 2 x Aluminum profile 22" x 1.5" x 1.5"


Box 3 (Hardware & Pedal Tray)

• 2X Pedal Tray side brackets

• Left and Right Heel Rest Side Brackets

• Heel Rest Plate

• 8 x Corner Gussets and Plastic Caps

• 22x M8 Screws (35mm)

• 4 x M8 Screws (25mm)

• 22 x M8 Screws (16mm)

• 12 x M8 Screws (12mm)

• 4 x M8 locknuts

• 36 x M8 T-Nuts

• Endcaps

• 5 x 1.5" Endcaps

• 1 x 3" Endcaps

• 4 x 4.5" Endcaps

• 8 x Pushcaps

• 16 x Pushpins

• 4 x Rubber feet

• 4 x M6 Screws (20mm)

• 4 x M6 T-Nuts

Box 4 (Classic Wheel Deck Variant)

Common content

• 8 x Flathead screws (16mm)

• 2 x Aluminum profile 6 7/8" x 3" x 1.5"

• 2 x wheel deck brackets

• *Depending on configuration, one set of the following is included*


Standard Wheel Deck Content

• Standard Steel Plate

• 2 x 3" endcaps

• 4 x pushpins


Fanatec Side Mount Content

• 2 x DD side brackets (L & R)

• 2 x CSL DD spacers

• 4 x M8 Screws (16mm)

• 4 x M8 Screws (20mm)


Simucube Front Mount

• 2 x DD side brackets (L & R)

• 1 x Front Mount Plate

• 4 x M8 screws (16mm)

• 4 x M8 screws (20mm)


Asetek Front Mount

• 2 x DD side brackets (L & R)

• 1 x Asetek Mount Plate

• 4 x M8 screws (16mm)

• 4 x M8 screws (20mm)

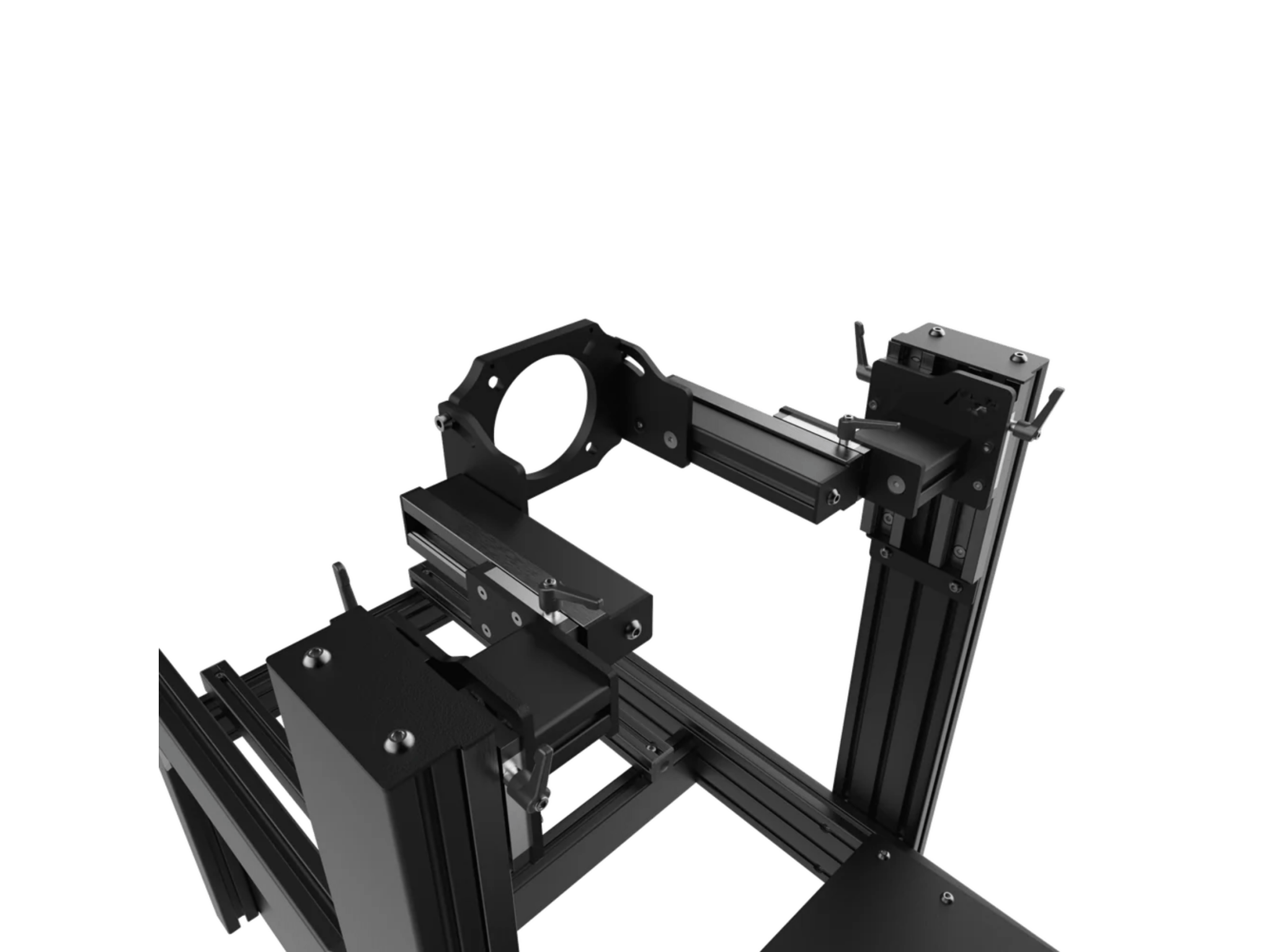

Box 4 (Pro Wheel Deck Variant)

• 6 x Linear guide track

• 6 x linear guide bearing

• 2 x 2 7/8" x 3" x 1.5" extrusion

• 2 x 8" x 1.5" x 1.5" extrusion

• 2 x lower vertical stopper plate

• 2 x upper vertical stopper plate

• 2 x dual bearing plate

• 2 x single bearing plate

• 4 x horizontal stopper plate

• 2 x DD side plate

• 1 x front mount plate

• 12 x M8 button head screws (12mm)

• 8 x M5 screws (16mm)

• 6 x M5 Flat Head Screws (12mm)

• 12 x M8 Flat Head Screws (16mm)

• Base composition : 4.5" x 1.5"
• Steering column composition : 4.5" x 1.5"
• Base length : 50"
• Base width : 22"
• Chassis height from rubber feet to tip of the steering column : 29"
• Weight when assembled (w/o accessories): 116lbs.

Standard Wheel Deck

• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)

Fanatec (Podium DD & CSL DD Side Mount)

• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+

Asetek (Front Mount)

• All Asetek Wheel base

Simucube & MiGE Motor (Front Mount)

• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases

Aluminum Pedal Deck & Heel Rest

• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+

• Fanatec ClubSport V3
• Fanatec CSL
• Fanatec CSL Elite

• Not compatible with the CSR Pedals
• Asetek SimSports Invicta & Forte Sim Racing Pedals
• Heusinkveld
• Thrustmaster products

• Logitech products
• Simtrecs ProPedal GT
• Simagic P1000 &  P2000 & Inverted Versions
• Heusinkveld
• MECA Cup1
• MECA EVO1

• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Atrax Black Formula
• Venym Black Widow
• Cube Controls SP01
• HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)

• And many more (please inquire directly with us for specific pedal sets)

• Adjustable Wheelbase & Pedal Position – Customize the position of your wheelbase and pedals for a perfect racing setup.

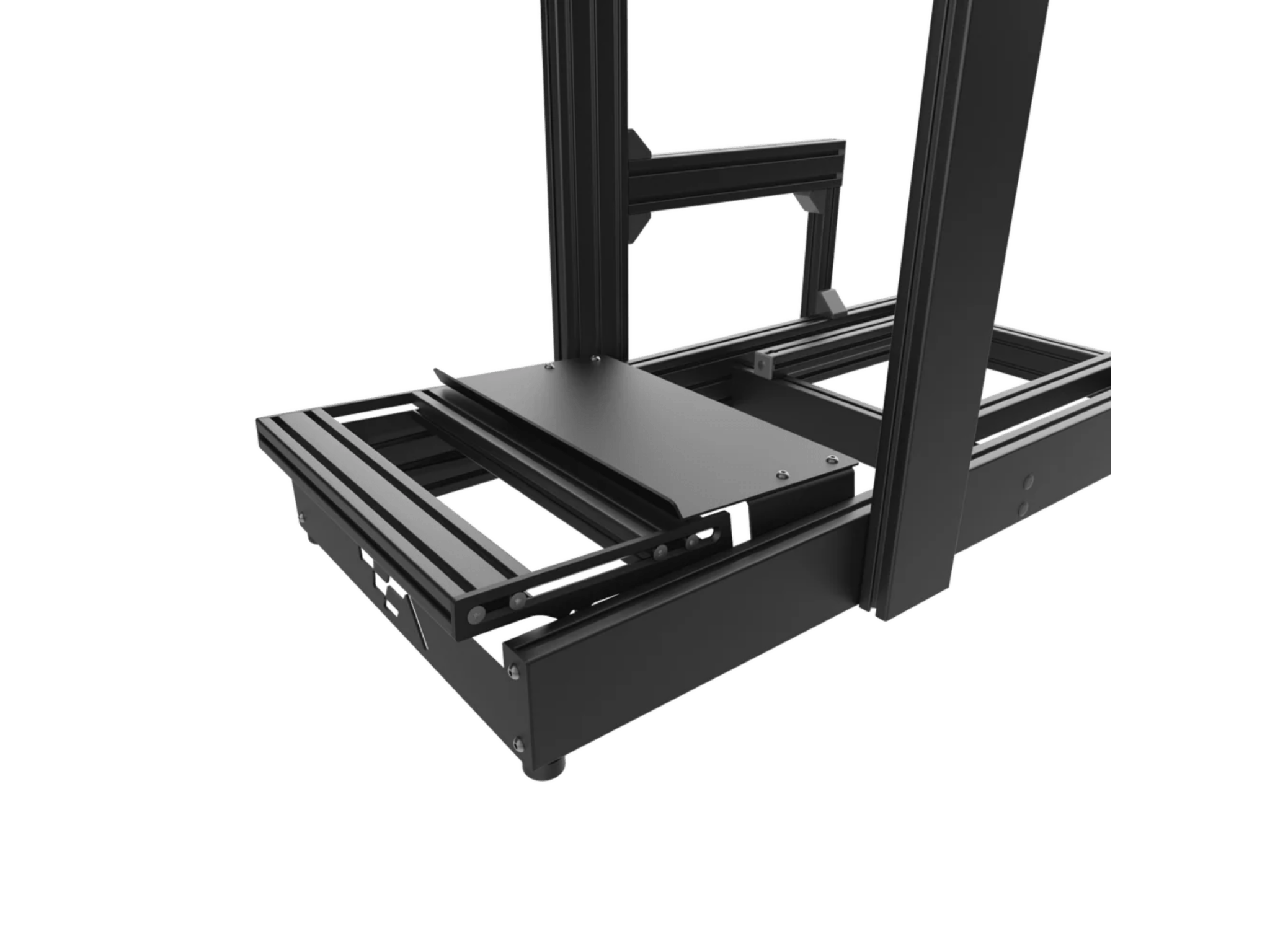

• New Generation 2 Pedal Tray & Heel Rest – Maximum compatibility and adjustability for your pedals.
• Pro Wheel Deck Option – For market-leading adjustability of your wheelbase, position, and angle.
• Durable Aluminum Design – Made with high-quality, USA-sourced alloy aluminum for strength and stability.
• Reinforced 4.5" Aluminum Base – Provides extra height and solid support for powerful racing peripherals.
• Zero Flex Design – No weak points for maximum stability and performance.
• Matte Black Powder Coat Finish – Scratch-resistant and built to last, giving your setup a sleek, modern look.
• Highly Adjustable Pedal Plate – Change height, angle, and position to find the perfect fit.
• Compatible with Multiple Wheelbases – Options for Fanatec, MiGE, Asetek, and more.
• Fits Racers Up to 6'6" – Adjustable to suit a wide range of heights for comfort.
• Easy Setup – Overhauled assembly for faster, simpler build with fewer parts.

Videos

Manuals

 ✓⃝ Assembly Guide for the ASR 4 Wheel Deck

 ✓⃝ Assembly Guide for the ASR 4 Pro Wheel Deck
