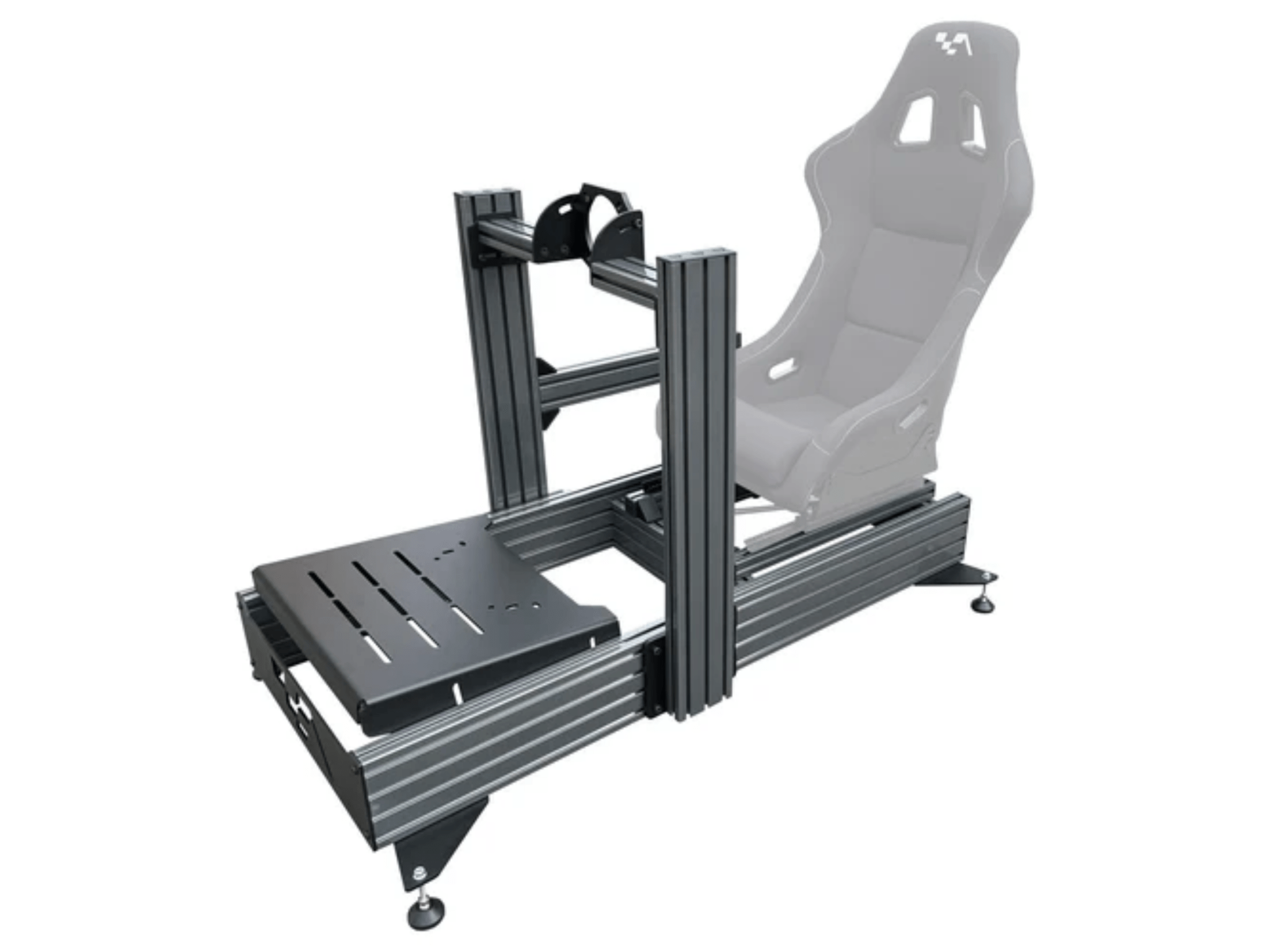

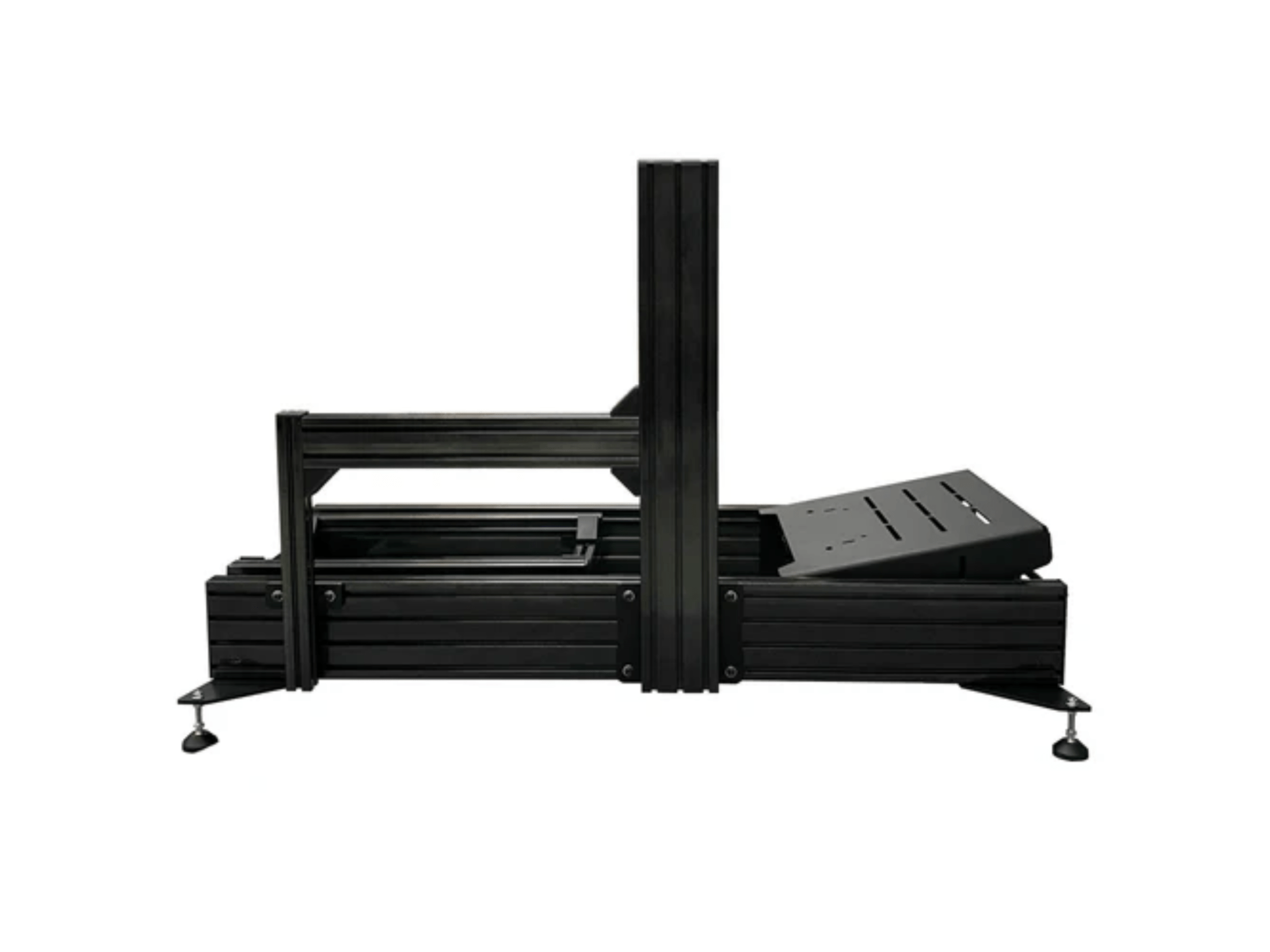

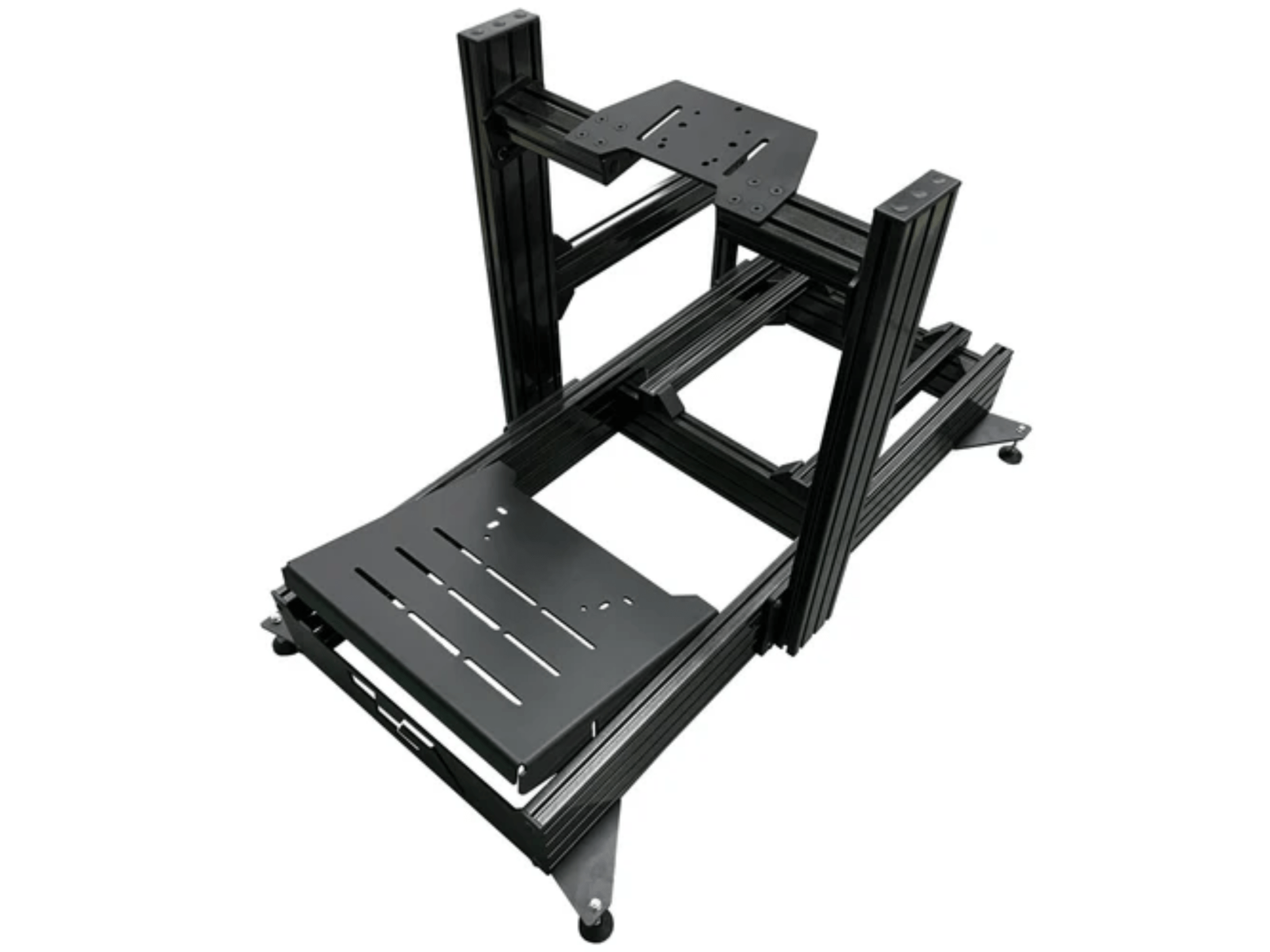

ASR 6 Wheel Deck (Generation 1)

Struggling to find a racing simulator chassis that offers both stability and custom adjustability? Get the ASR 6 Racing Simulator Chassis and experience the most realistic and adjustable racing setup on the market! Designed for serious SimRacers, this chassis features a 6" aluminum base, ensuring top-tier stability and performance. Whether you're racing with entry-level gear or high-end peripherals, the ASR 6 offers perfect adjustments for a custom fit, so you'll feel like you're behind the wheel of a real car.

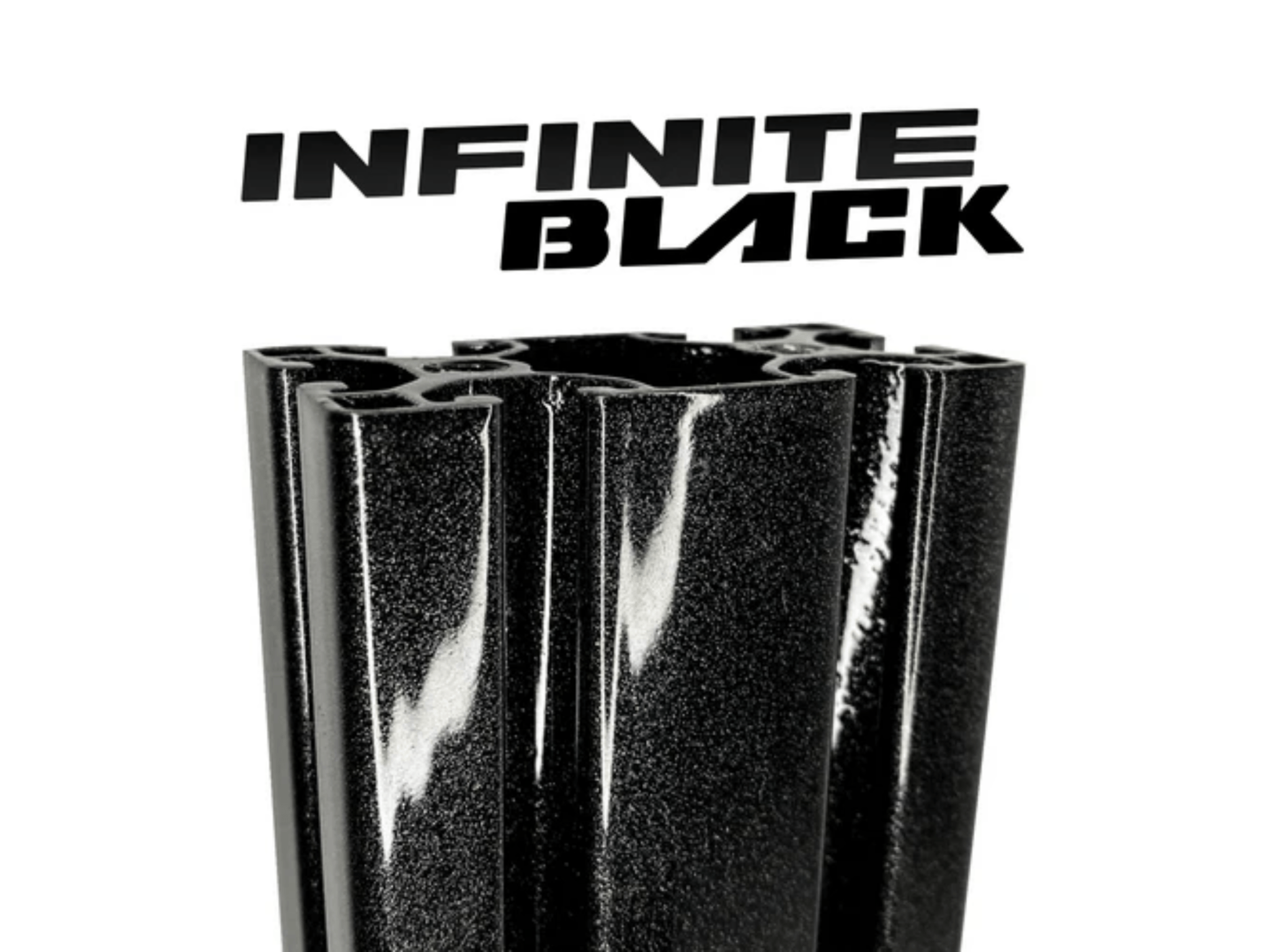

The ASR 6 is built for durability with zero flex, using high-grade alloy aluminum sourced in the USA. It’s also available in two stunning powder coat colors Carbon Grey and Infinite Black to make your racing simulator stand out. Adjust the seat, pedals, and wheel deck to find your ideal racing position for both short and long sessions, and rest easy knowing your chassis is built to last a lifetime.

Four Wheel Deck options available

• Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)
• Podium DD Side Mount (Fanatec Podium Series)

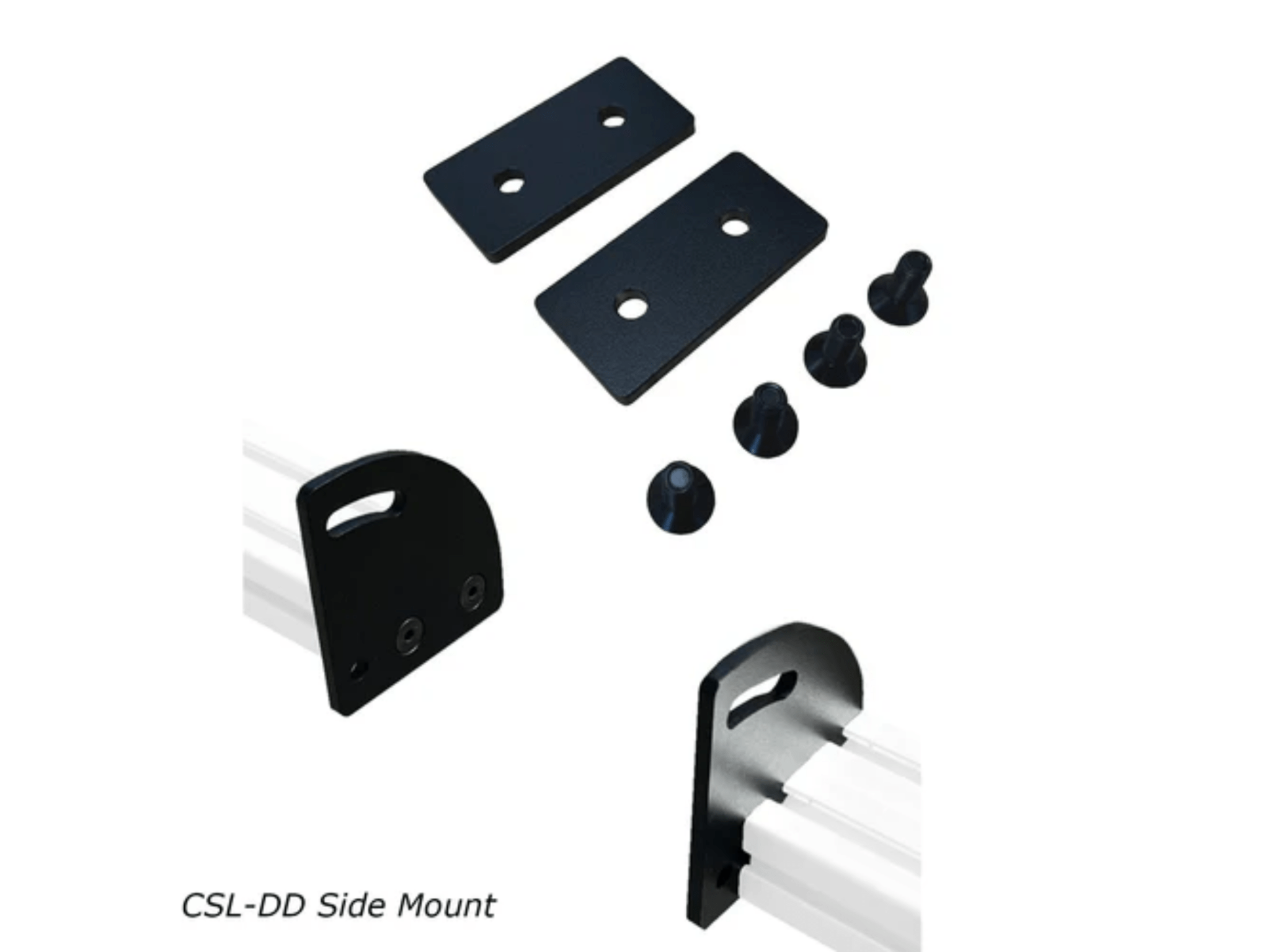

• CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)

• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)

Two Pedal Tray options available

• Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest

With multiple options for wheel and pedal configurations, the ASR 6 is compatible with all your favorite gear, from Thrustmaster to Fanatec. Ready for the ultimate, most realistic racing experience? The ASR 6 is the best choice for your racing simulator build!

• Base composition : 6"x 1.5"
• Steering column composition : 4.5" x 1.5"
• Base length : 50"
• Base width : 22"
• Chassis height from adjustable rubber feet to tip of the steering column : 32"
• Weight when assembled (w/o accessories): 132lbs.

Box 1 (Aluminum) 50" x 6" x 3"

• 1 x Aluminum profile 50" x 6" x 1.5"
• 1 x Aluminum profile 30" x 4.5" x 1.5"
• 1 x Aluminum profile 19" x 4.5" x 1.5"
• Front plate with Advanced SimRacing crest

Box 2 (Aluminum) 50" x 6" x 3"

• 1 x Aluminum profile 50" x 6" x 1.5"
• 1 x Aluminum profile 30" x 4.5" x 1.5"
• 1 x Aluminum profile 19" x 4.5" x 1.5"

Box 3 (Aluminum) 22" x 5" x 3"

• 2 x Aluminum profile 22" x 1.5" x 1.5"
• 1 x Aluminum profile 16" x 1.5" x 1.5"
• 1 x Aluminum profile 19" x 3" x 1.5"

Box 4 (Hardware) 10" x 8" x 4"

• Box 4 (Hardware) 10" x 8" x 4"
• 16 x Corner Gussets and Plastic Caps
• 50 x M8 Screws (16mm)
• 10 x M8 Screws (20mm)
• 4 x M8 Screws (12mm)
• 10 x M8 Flathead Screws (20mm)
• 4 x 5/16" Screws for filted ends (16mm)
• 70 x M8 T-Nuts
• 2 x Side mounting plate (6" x 7")
• 1 x Side mounting plate (4.5" x 1.5")
• 2 x 6" Endcaps
• 2 x 4.5" Endcaps
• 5 x 1.5" Endcaps
• 1 x 3" Endcaps
• 22 x Pushpins
• 4 x M10 Rubber feet
• 4 x Metal plates for rubber feet

Box 5 (Wheel Deck Selection) 13" x 10" x 3"

• Depending on your selection : Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
• 8 x Flathead socket cap screws (16mm)
• 8 x M8 T-Nuts
• 2 x Aluminum profile 7.5" x 3" x 1.5"

Box 6 (Pedal Support) Depending on your selection

• Steel Pedal Plate - 19" x 20" x 7"
• 1 x 3/16" Steel Pedal Plate


• Aluminum Pedal Deck & Heel Rest - 20" x 9" x 6"
• 2 x Aluminum profile 18.5" x 3" x 1.5"
• 2 x 1/4" Side Steel Plates
• 1 x 1/8" Steel Heel Rest
• 12 x M8 Socket Cap Screws (16mm)
• 4 x M8 Screws (12mm)
• 8 x M8 T-Nuts

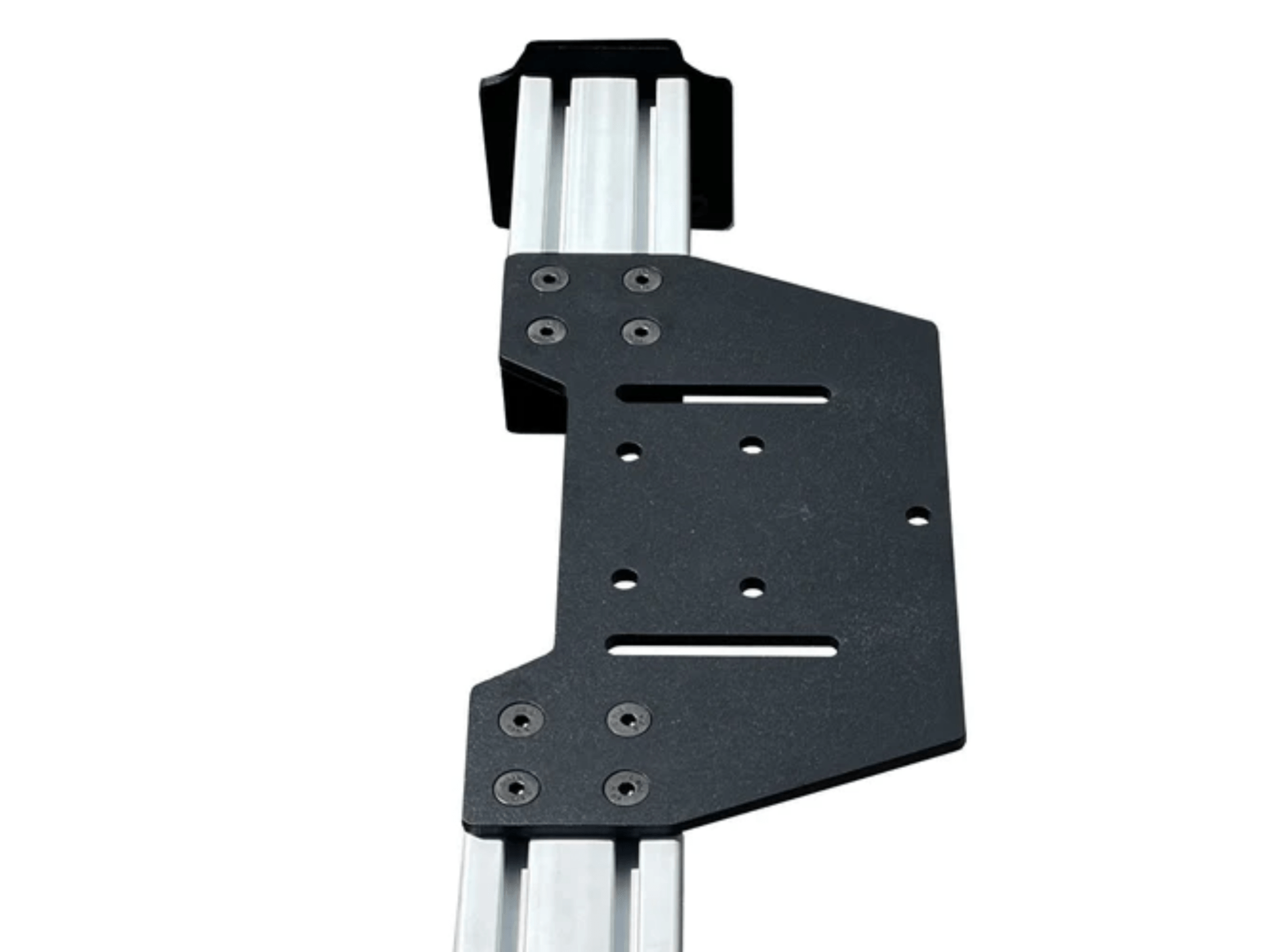

Standard Wheel Deck

• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)

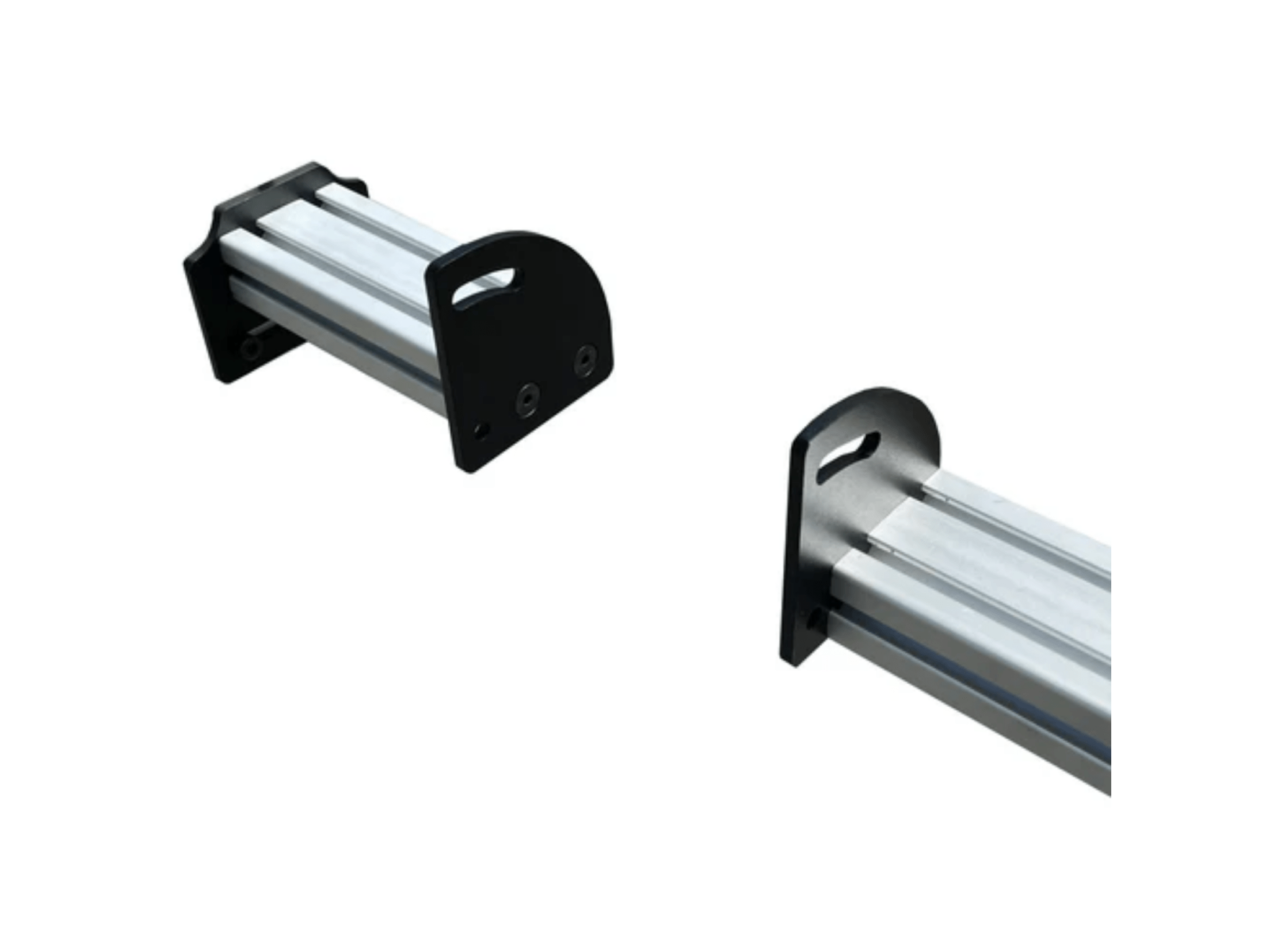

Fanatec (Podium DD & CSL DD Side Mount)

• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+

Asetek (Front Mount)

• All Asetek Wheel base

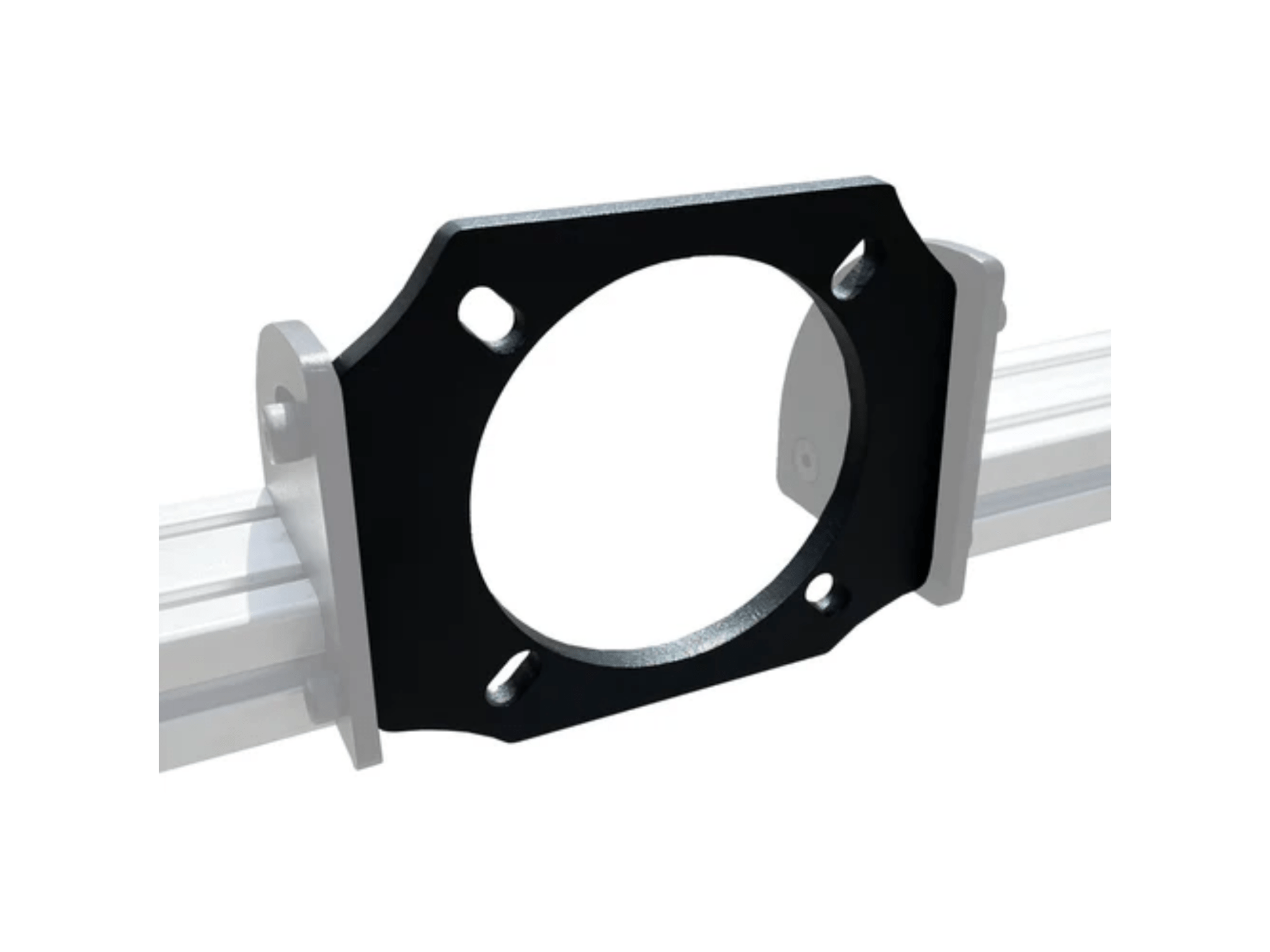

Simucube & MiGE Motor (Front Mount)

• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases

Steel Pedal Plate

• Heusinkveld
• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+

• Fanatec
• ClubSport V3
• CSL
• CSL Elite
• Not compatible with the CSR Pedals
• Asetek SimSports Invicta & Forte Sim Racing Pedals
• Thrustmaster products
• Logitech products
• Simtrecs ProPedal GT
• Simagic P1000 & P2000
• And much more (please inquire for specific pedal sets)

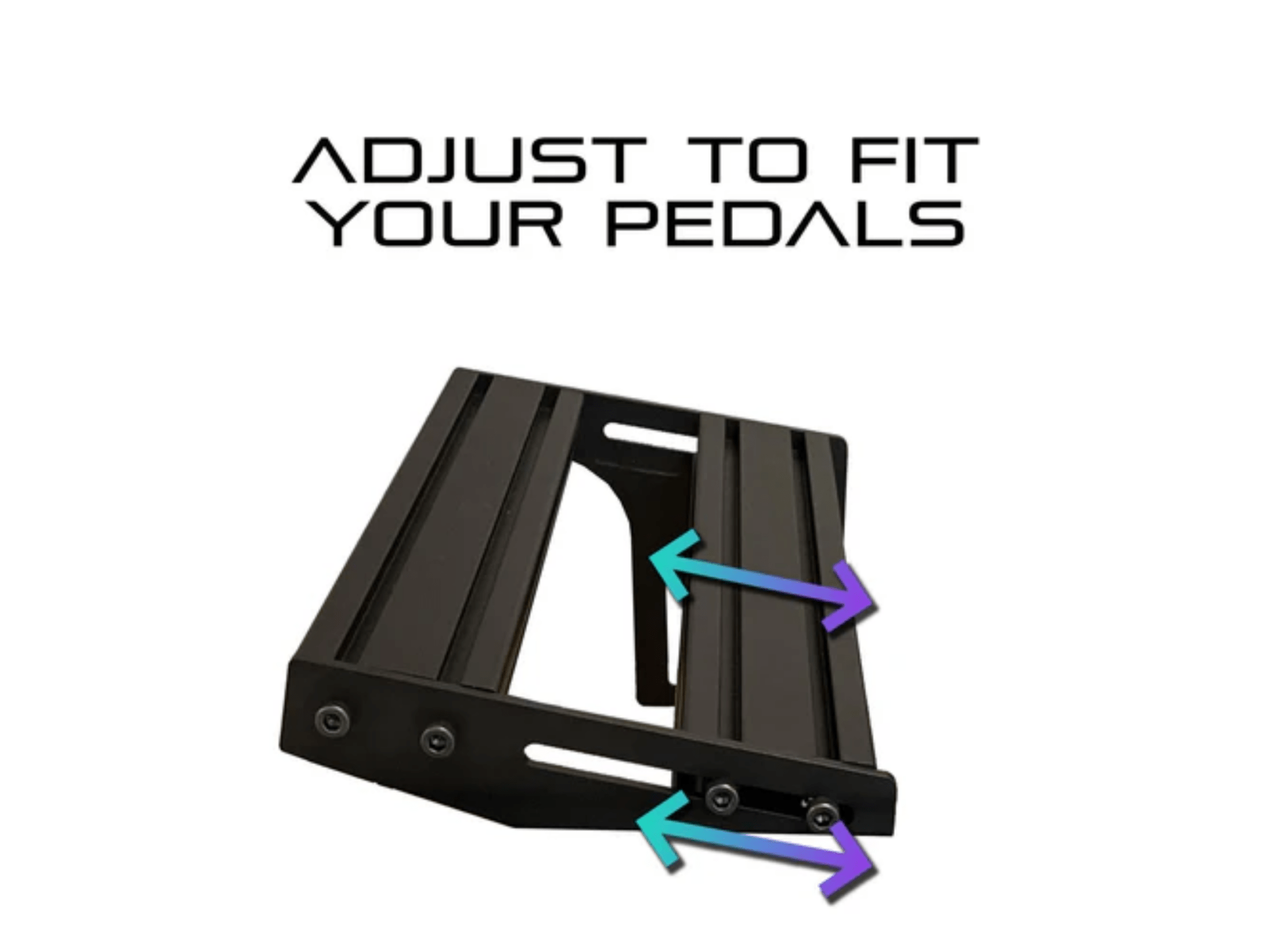

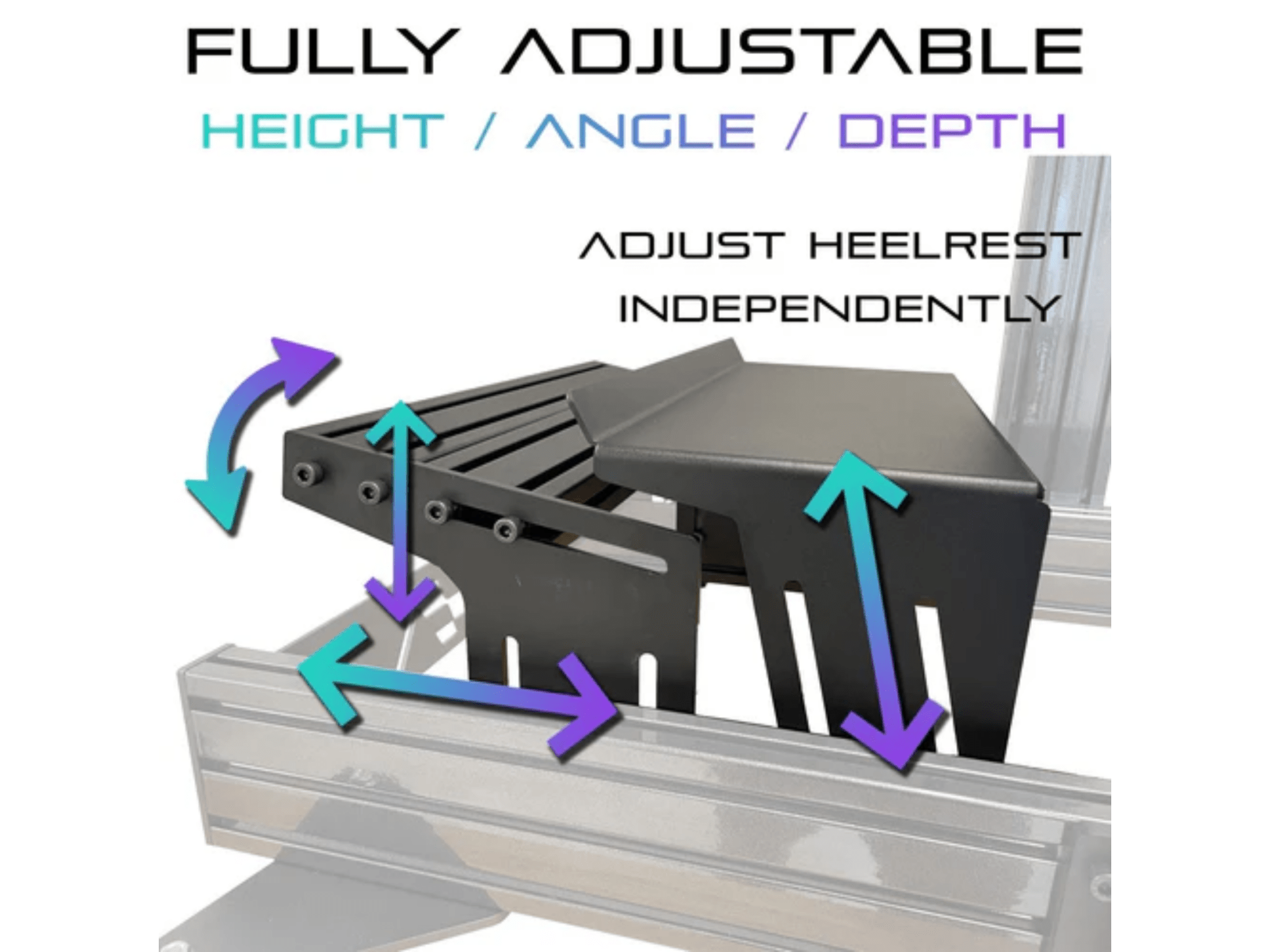

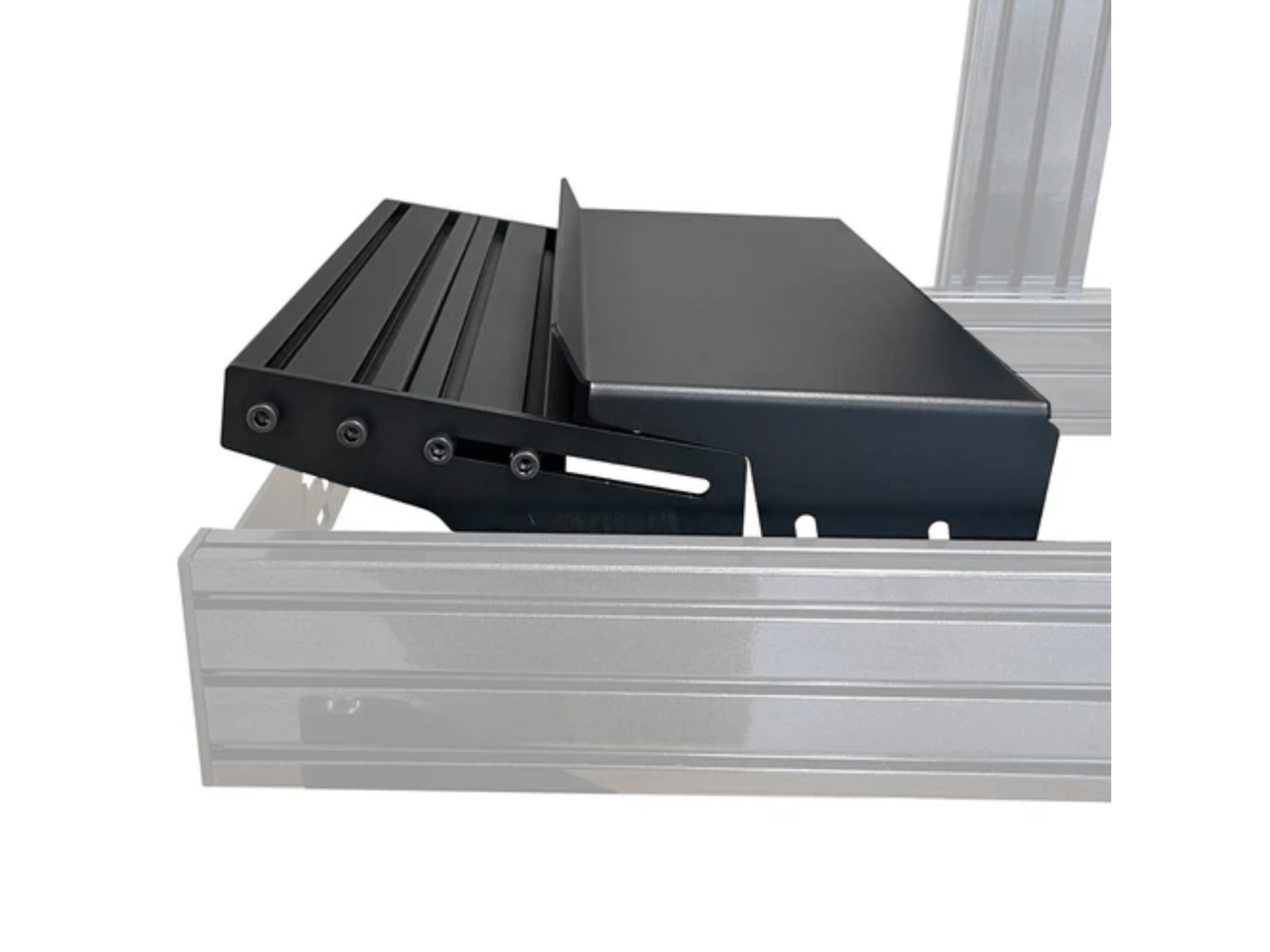

Aluminum Pedal Deck & Heel Rest

• Heusinkveld
• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+
• MECA Cup1
• MECA EVO1
• Simagic P2000
• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Atrax Black Formula
• Venym Black Widow
• Cube Controls SP01
• HPP JBV 2/3 Pedal System ( JBV Mounting tabs required)

• And many more (please inquire directly with us for specific pedal sets)

The ASR 6 Assembly guide is available right here
