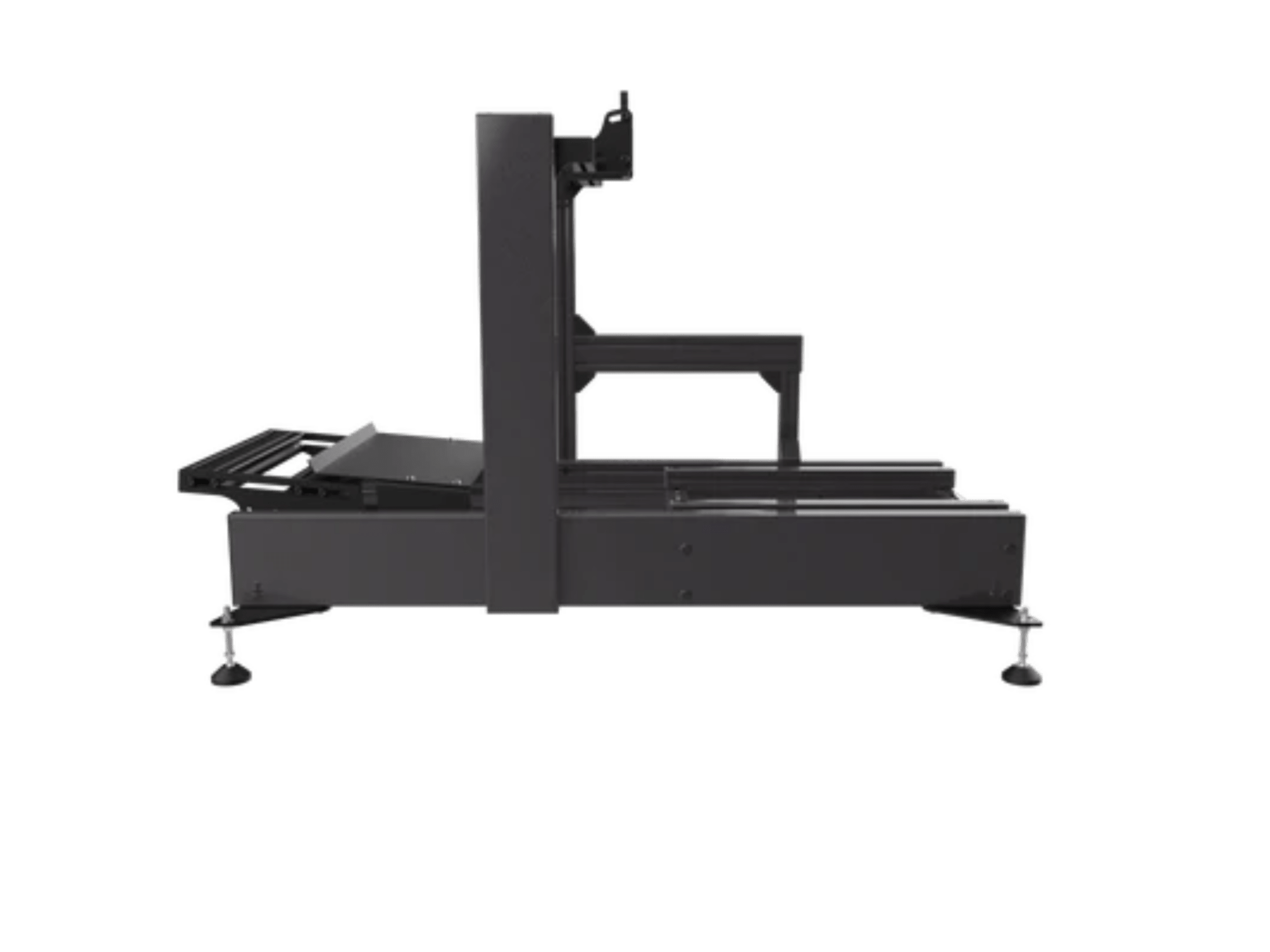

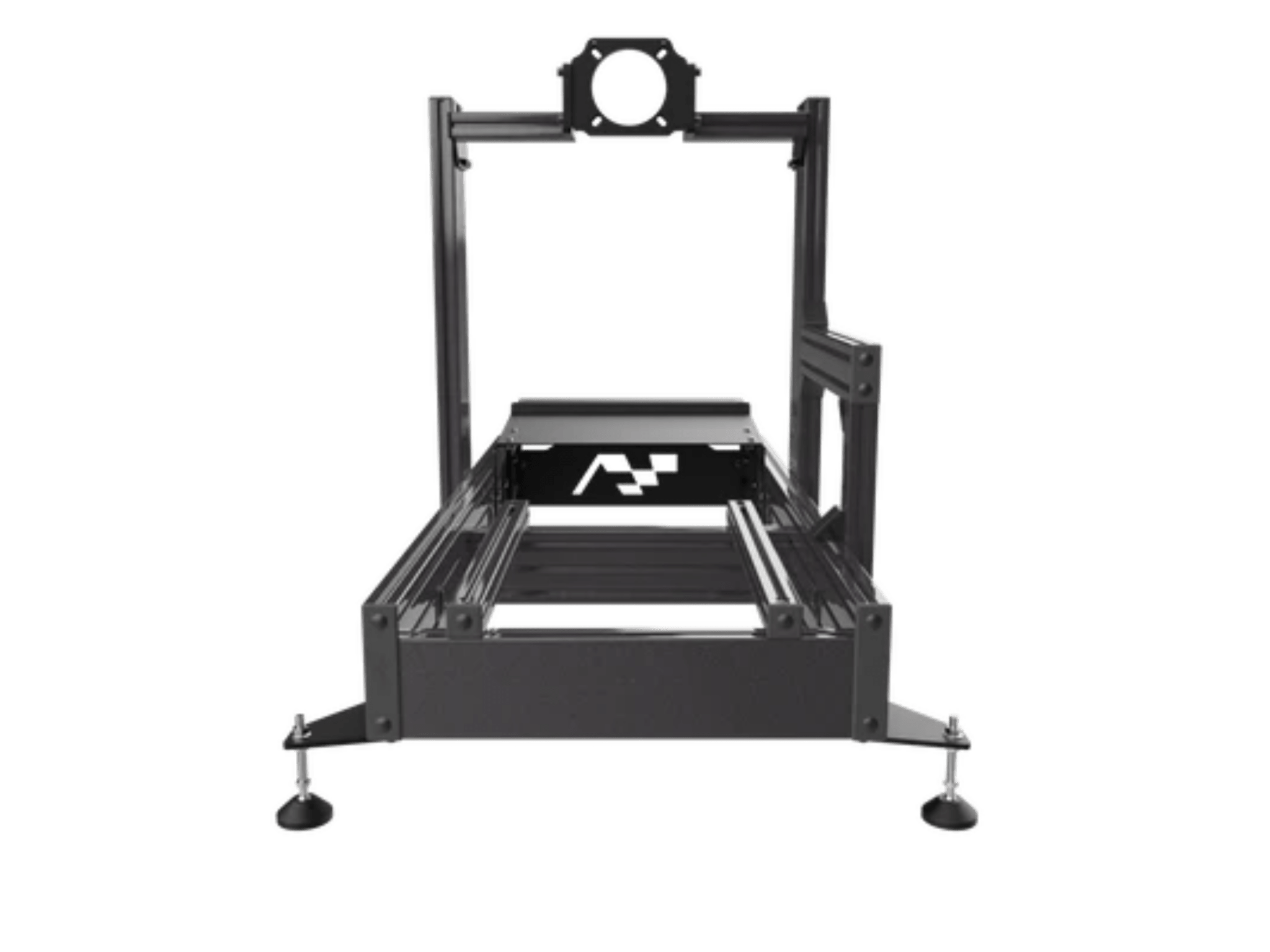

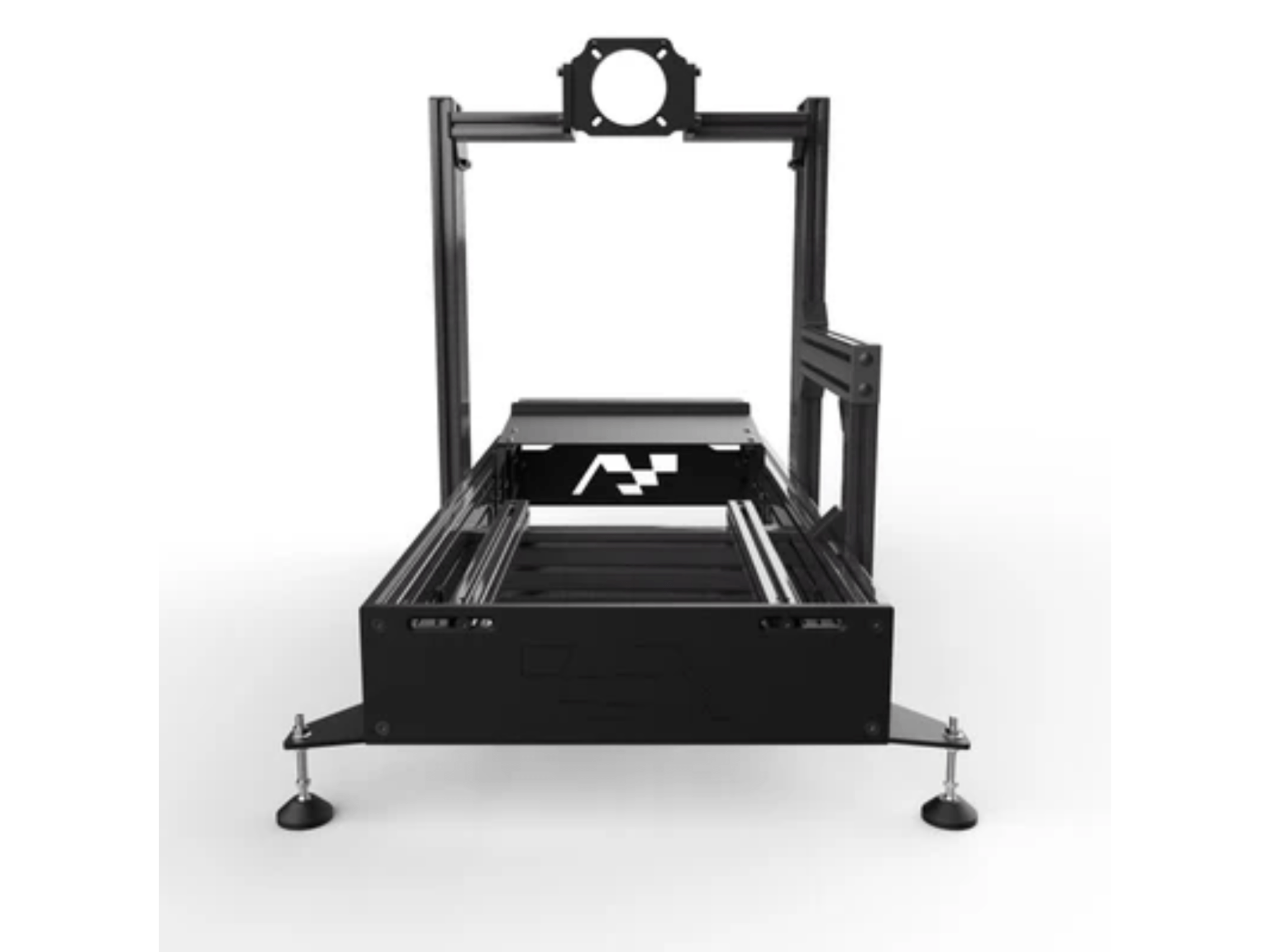

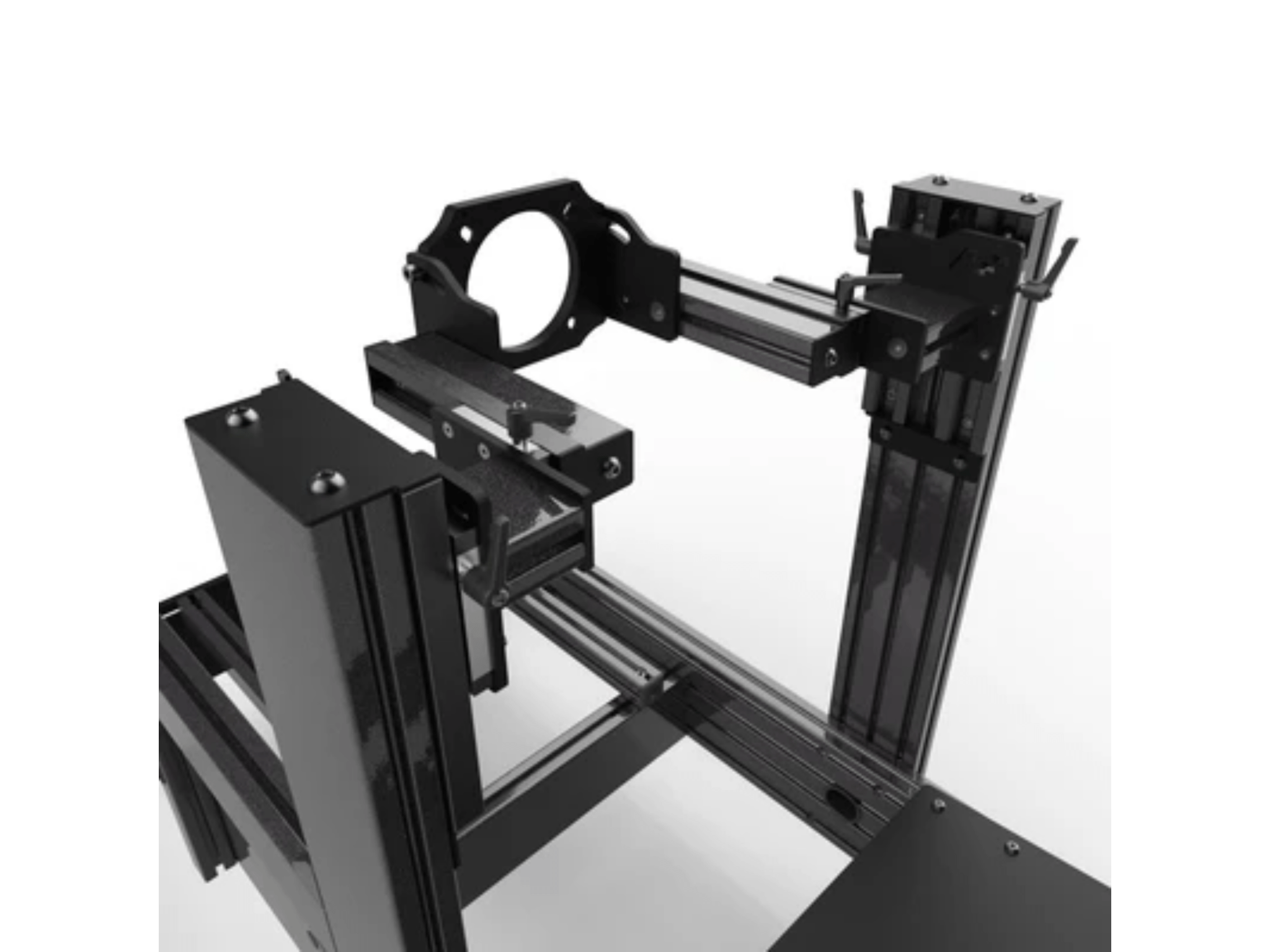

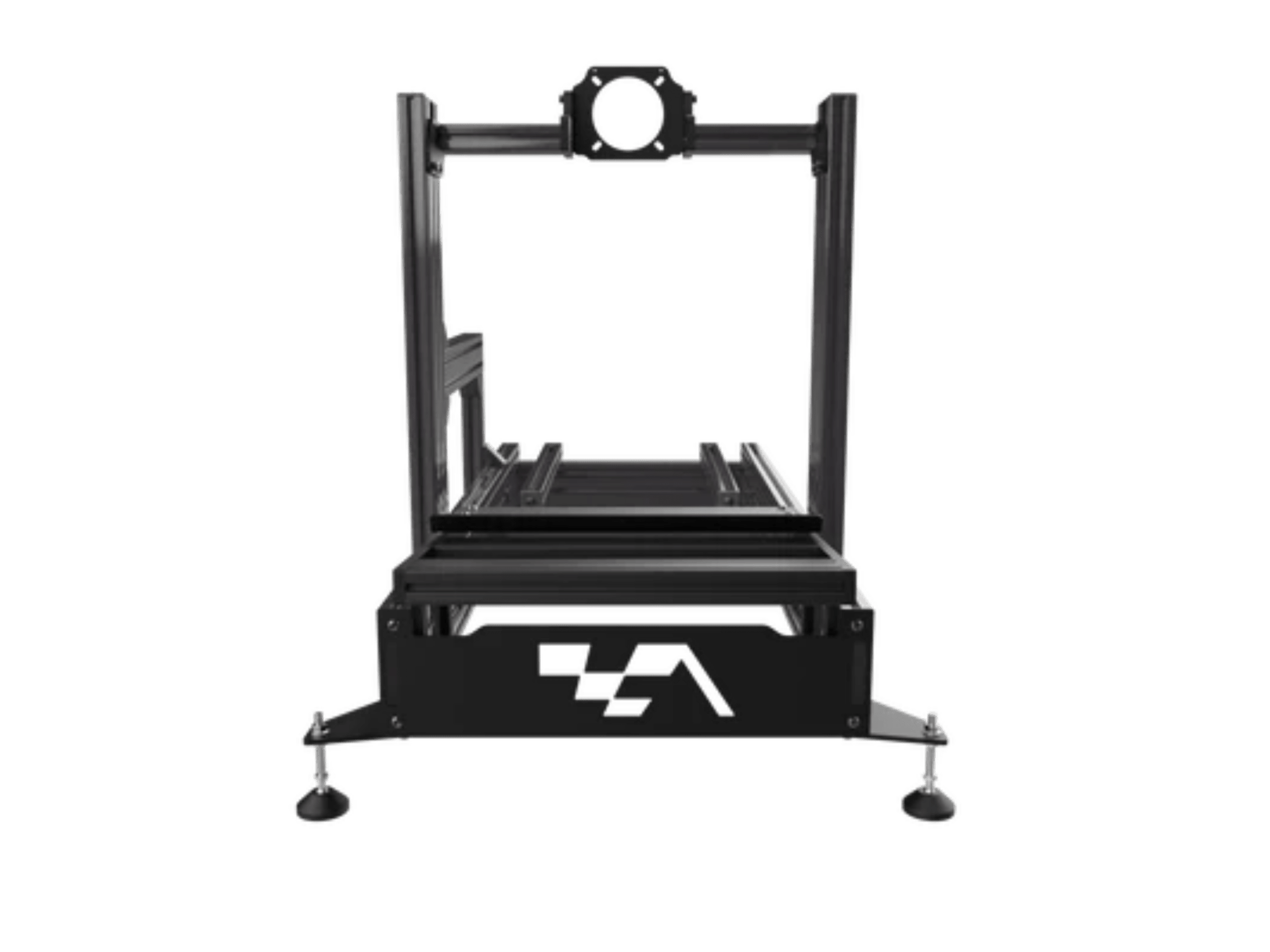

ASR Pro Chassis

Looking for the best racing simulator chassis with unbeatable stability and adjustability? The Advanced Sim Racing ASR Pro (Gen 2) is engineered for serious sim racers who need top-tier performance.

Key Features:

• Extreme Stability: Zero flex, even with 30Nm+ wheelbases and hydraulic pedals.
• Ultimate Adjustability: Quick-adjust wheel deck and pedal tray for a perfect fit.

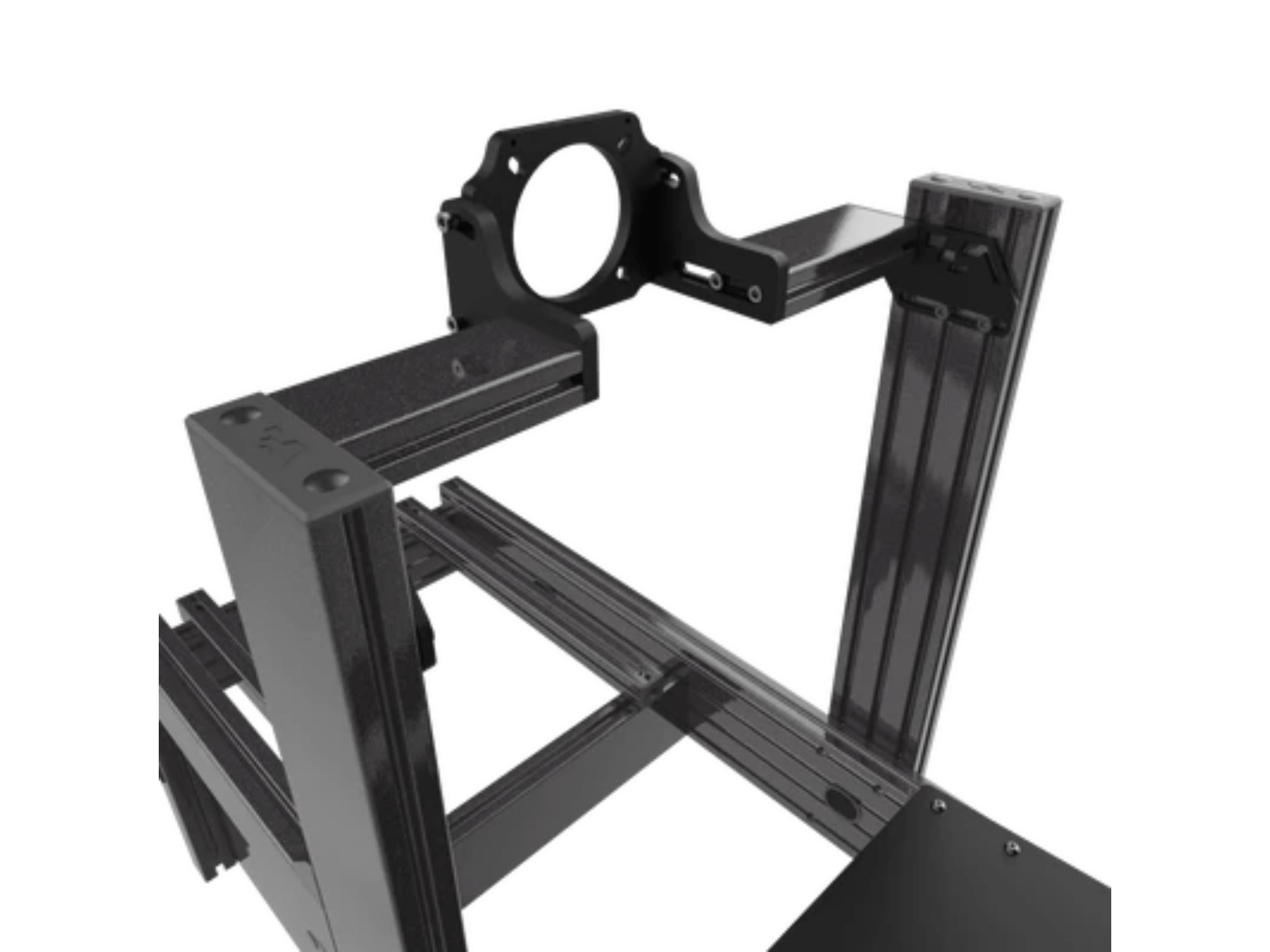

• Pro Wheel Deck (Optional): Industry-leading customization for wheel position and angle.
• Built-in Cable Management: Clean, organized, and professional-looking setup.
• Heavy-Duty Materials: High-grade extruded aluminum and thick steel plates.
• Hot-Swap Ready: Switch between racing and flight simulation in under a minute.
• Premium Finish: Available in Matte Black or Infinite Black powder coat.
• Made in Canada: Designed, produced, and packaged with top-quality craftsmanship.

The ASR Pro (Gen 2) is the most stable and customizable racing simulator chassis on the market—built for racers who demand the best.

Want a racing simulator that stands out? The Advanced Sim Racing ASR Pro (Generation 2) offers top-tier customization for a rig that looks as good as it performs.

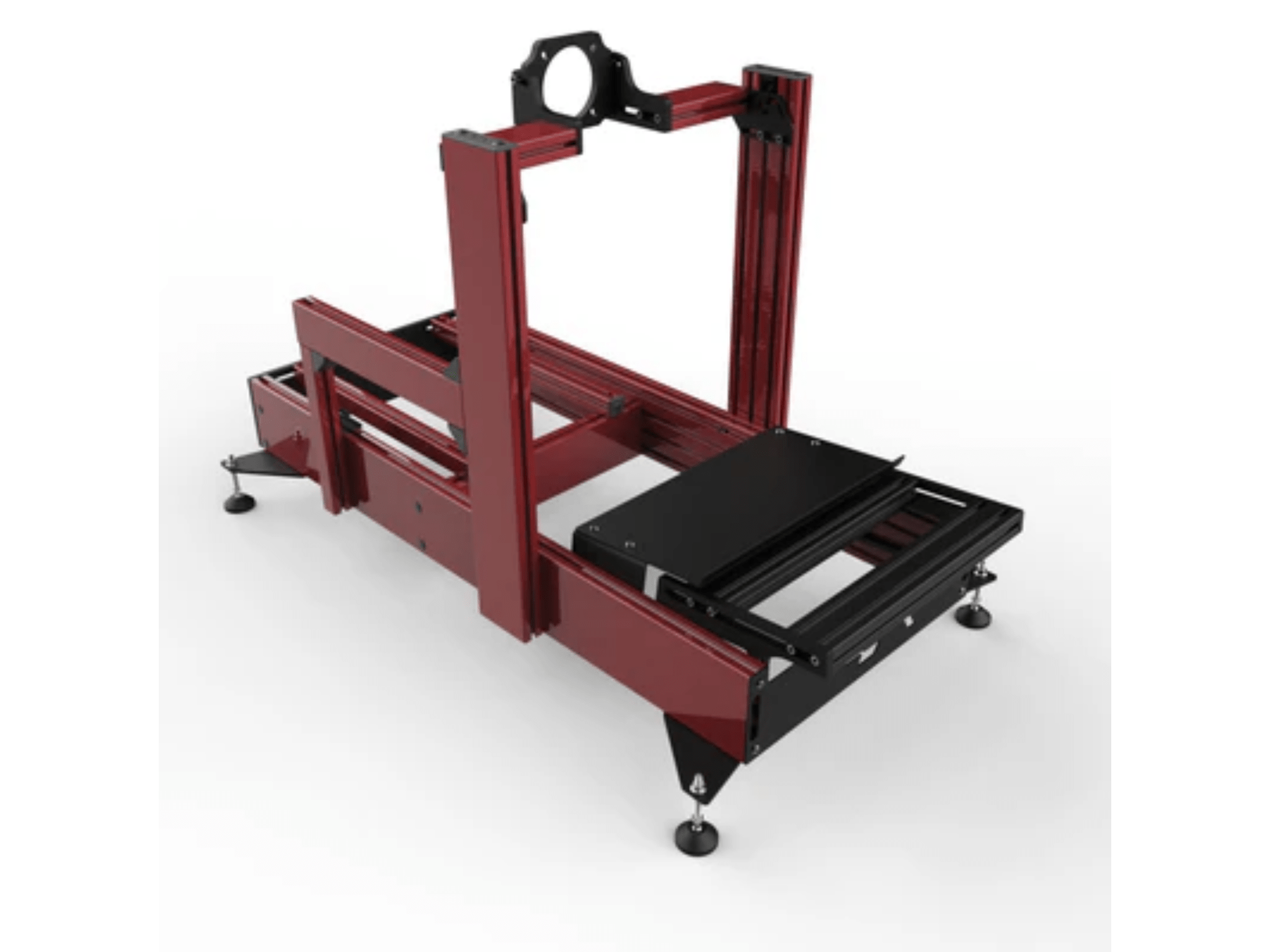

• Custom Powder Coat Colors: Choose from a variety of premium finishes.
• Flat Face Aluminum Profile: Perfect for UV printing and vinyl wraps.
• Fully Personalized Design: Match your rig to your favorite racing team.
• High-Quality Materials: Durable and built to last.

• Base length : 50"
• Base width : 22"
• Chassis maximum length (including the pedal tray support base) : 56"
• Chassis width (including the wheel base column) : 25"
• Full product width (including support feet) : 29"
• Height at wheel base column tip : 32"
• Height at pedal tray (when pedal plate is flat) : 18"
• Height at pedal tray (when pedal plate is fully angled) : 21.5"

Box 1 (Aluminum) 50" x 6" x 3"

• 1 x Aluminum profile 50" x 6" x 1.5"

• 1 x Aluminum profile 30" x 4.5" x 1.5"

• 1 x Aluminum profile 19" x 4.5" x 1.5"

• 1 x Aluminum profile 22" x 1.5" x 1.5"

• 1 x Aluminum profile 13" x 1.5" x 1.5"

• 1 x ASR Front Plate

Box 2 (Aluminum) 50" x 6" x 3"

• 1 x Aluminum profile 50" x 6" x 1.5"

• 1 x Aluminum profile 30" x 4.5" x 1.5"

• 1 x Aluminum profile 19" x 4.5" x 1.5"

• 1 x Aluminum profile 22" x 1.5" x 1.5"

Box 3 (Aluminum) 22" x 4" x 3"

• 3 x Aluminum profile 18" x 3" x 1.5"

Box 4 (Hardware & Pedal Tray)

• 2 x Pedal Tray side brackets

• Left and Right Heel Rest Side Brackets

• Heel Rest Plate

• 8 x Corner Gussets and Plastic Caps

• 22 x M8 Screws (35mm)

• 4 x M8 Screws (25mm)

• 32 x M8 Screws (16mm)

• 12 x M8 Screws (12mm)

• 4 x M8 locknuts

• 36 x M8 T-Nuts

• Endcaps

• 5 x 1.5" Endcaps

• 1 x 3" Endcaps

• 2 x 4.5" Endcaps

• 2 x 6" Endcaps

• 4 x passthrough cable grommets

• 8 x Pushcaps

• 16 x Pushpins

• 4 x adjustable feet

• 4 x M10 locknuts

• 4 x Adjustable feet plate

Box 5 - Option (Classic Wheel Deck)

Common content

• 8 x Flathead screws (16mm)

• 2 x Aluminum profile 6 7/8" x 3" x 1.5"

• 2 x wheel deck brackets

• Depending on configuration, one set of the following is included

Standard Wheel Deck Content

• Standard Steel Plate

• 2 x 3" endcaps

• 4 x pushpins

Fanatec (Side Mount) Content

• 2 x DD side brackets (L & R)

• 2 x CSL DD spacers

• 4 x M8 Screws (16mm)

• 4 x M8 Screws (20mm)

Simucube & MiGE Motors (Front Mount) Content

• 2 x DD side brackets (L & R)

• 1 x Front Mount Plate

• 4 x M8 screws (16mm)

• 4 x M8 screws (20mm)

Asetek (Front Mount) Content

• 2 x DD side brackets (L & R)

• 1 x Asetek Mount Plate

• 4 x M8 screws (16mm)

• 4 x M8 screws (20mm)

Box 5 - Option (Pro Wheel Deck)

• 6 x Linear guide track

• 6 x linear guide bearing

• 2 x 2 7/8" x 3" x 1.5" extrusion

• 2 x 8" x 1.5" x 1.5" extrusion

• 2 x lower vertical stopper plate

• 2 x upper vertical stopper plate

• 2 x dual bearing plate

• 2 x single bearing plate

• 4 x horizontal stopper plate

• 2 x DD side plate

• 1 x front mount plate

• 12 x M8 button head screws (12mm)

• 8 x M5 screws (16mm)

• 6 x M5 Flat Head Screws (12mm)

• 12 x M8 Flat Head Screws (16mm)

Box 6 - Optional (Back Plate Option)

• 1 x CNC-Machined Aluminum Back Plate

Standard Wheel Deck

• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10
• AccuForce Pro V2 Steering System
• Moza products

Front Mount & Side Mount (Simucube/Fanatec/Asetek/MiGE Motor)

• Fanatec Podium Wheel Base DD1 & DD2
• Fanatec CSL DD
• GT DD Pro
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• AccuForce Pro V2 Steering System
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases

Note: If you need Asetek compatibility, please contact us.

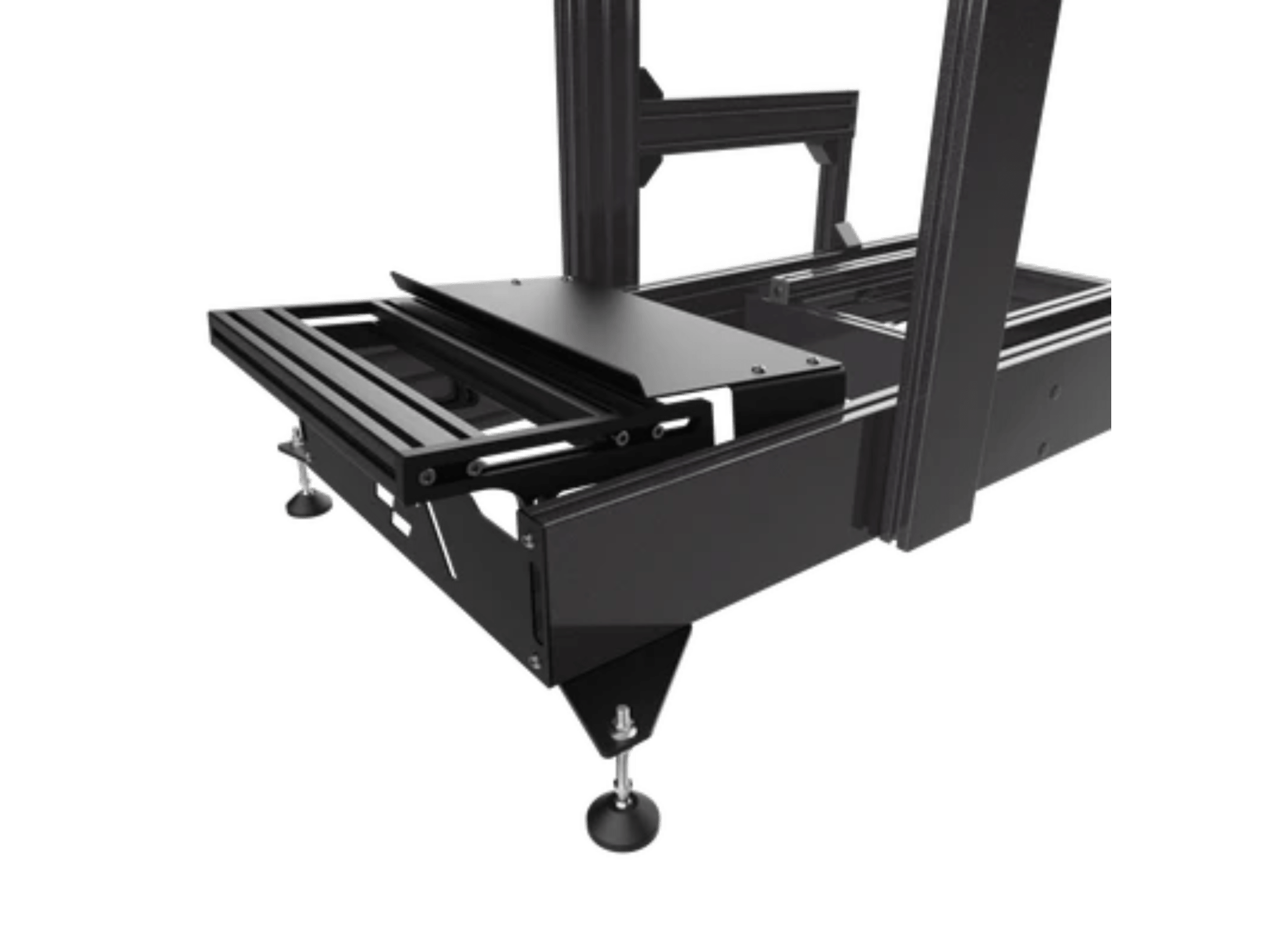

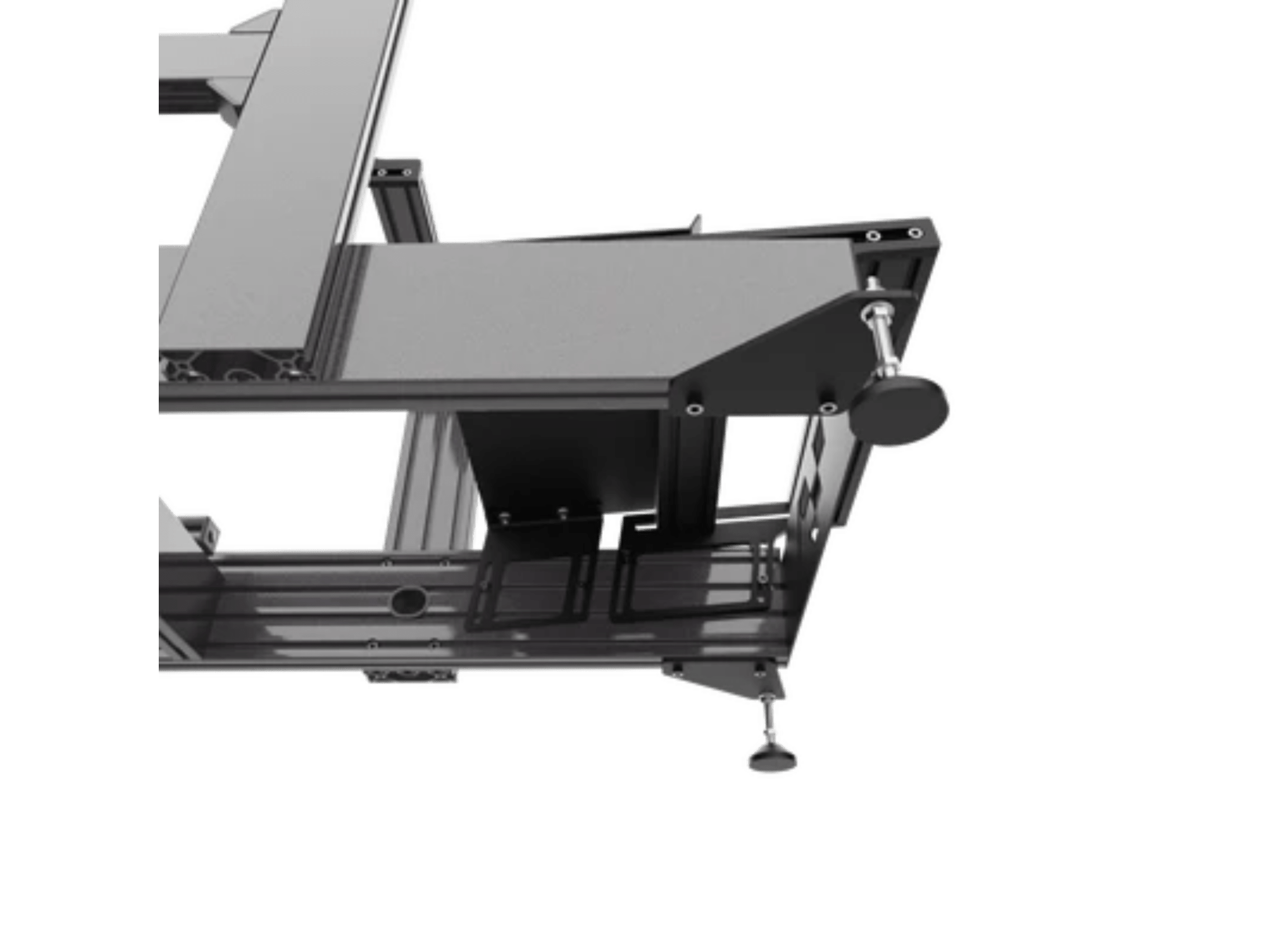

PRO Aluminum Pedal Deck & Heel Rest

• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+
• Heusinkveld
• MECA Cup1
• Simagic P1000 & P2000 & Inverted Versions
• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• VRS Pedals
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Pedals
• Asetek Pedals
• Fanatec ClubSport Pedals V3
• HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)
• And many more (please inquire directly with us for specific pedal sets)
• Not compatible with the Logitech G29 pedal set

Manuals and Installer

Assemble guide for The ASR Pro (Generation 2)

Assemble guide for ASR Pro (Generation) with CNC-Machined Back Plate

Assemble guide for Pro Wheel Deck
