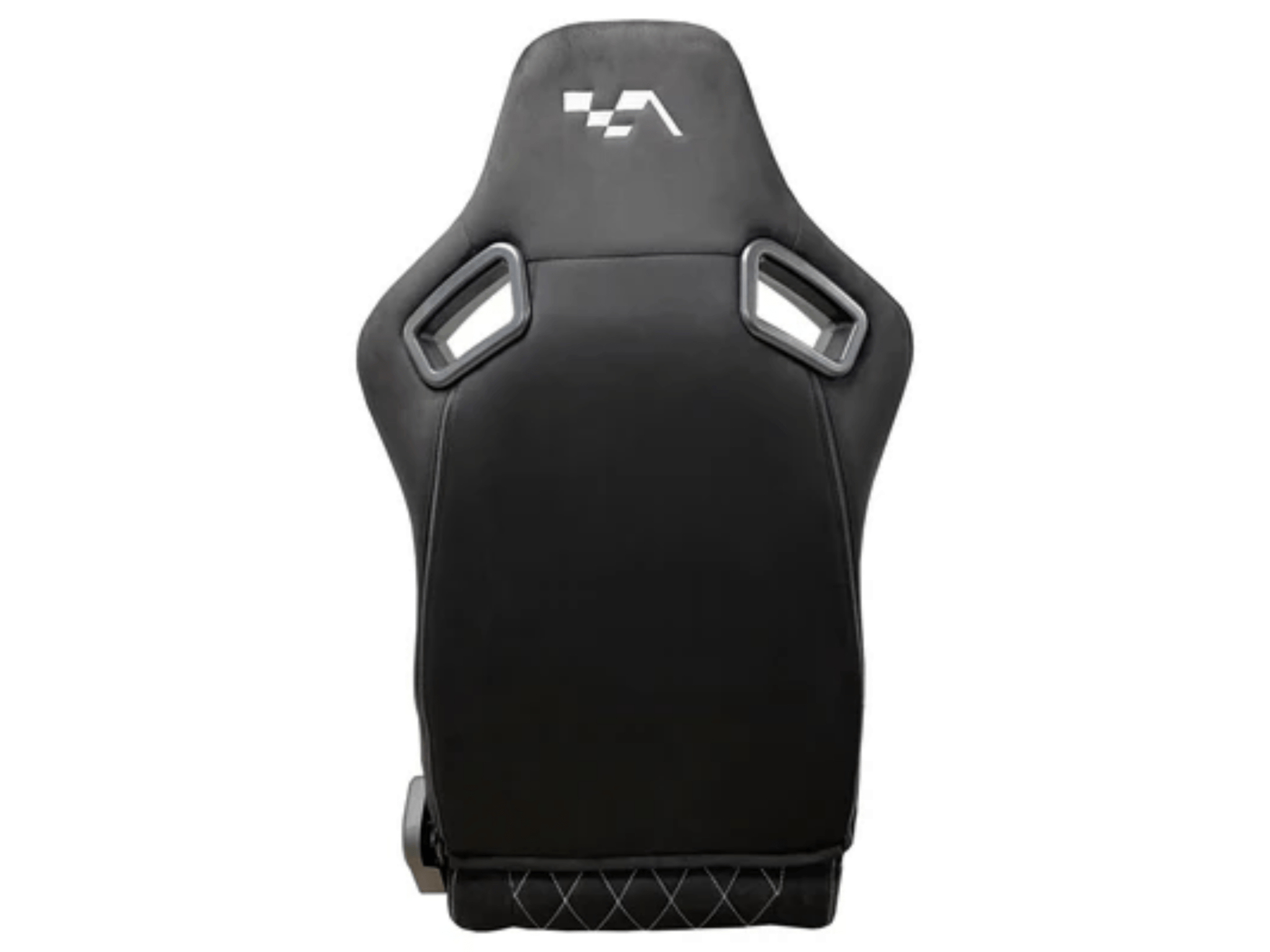

ASR Premium Recliner Seat (Suede)

The ASR Recliner Seat is perfect for racers who want comfort and flexibility in their racing simulator setup. Unlike fixed bucket seats, this one reclines, letting you adjust for the perfect driving position.

Made from high-quality breathable suede, it keeps you cool during long and short races. High side bolsters provide extra support, and the Advanced SimRacing logo is embroidered on the headrest.

Includes sliding seat rails for quick and easy adjustments!

• Seat height (from bottom to top) : 36"
• Seat width : 20.5"
• Seat length : 22" (standard tilt)
• Inner seating measurements
• Width at shoulders: 21" (broad opening)
• Width at thighs : 15" (broad opening)
• Seat depth : 19"

• ASR Recliner Seat Suede

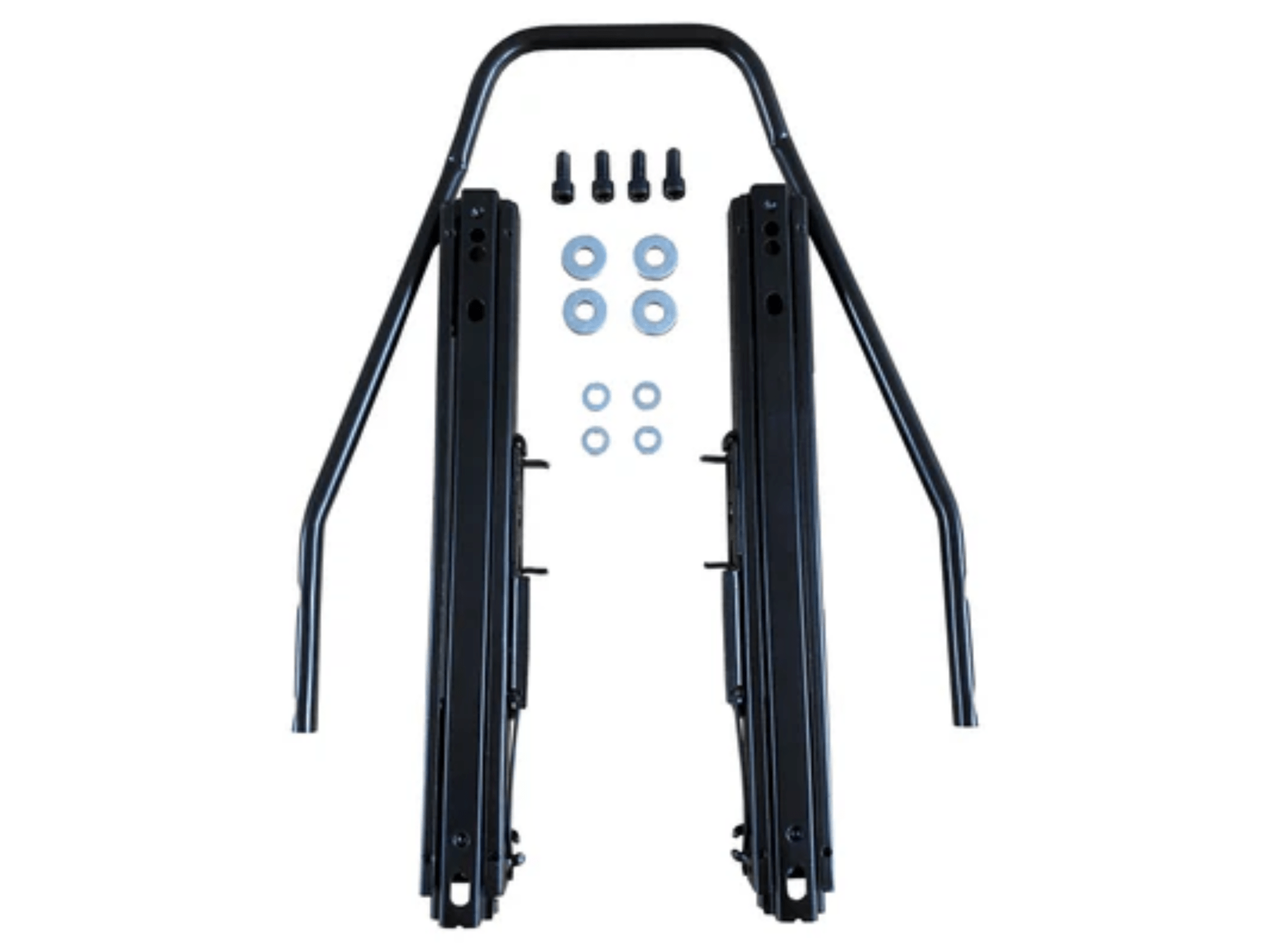

• Sliding seat rails
• No mounting hardware included (included with your Advanced SimRacing chassis)

1. Attach the 22" Profiles – Secure the 22" profiles to your chassis using the corner gussets. Fully tighten the bolts on the gussets, but leave the ones connecting the profiles to the chassis a little loose for now.
2. Prepare the Seat Sliders – Before mounting the seat, install the sliders while it’s still off the rig.
3. Align the Sliders – Make sure both sliders are locked in the same position so they move evenly.
4. Adjust the U Handle Bar – If needed, bend the U handle bar slightly wider or narrower to fit properly.
5. Attach the U Handle Bar – Carefully install the handle bar—watch your fingers!
6. Mount the Seat – Place the assembled seat onto the 22" profiles.
7. Secure the First Set of Bolts – Tighten either the front or rear bolts holding the sliders to the profiles.
8. Access and Tighten the Other Bolts – Slide the seat forward or backward to reach the remaining bolts, then tighten them down.
9. Center the Seat – Adjust the entire 22" profile and seat assembly to align perfectly with the chassis. Be careful to avoid scratching the profiles.
10. Lock Everything in Place – Go back to the bolts on the corner gussets that were left loose earlier and tighten them fully.
11. You're Ready to Race! – Your seat is installed, secured, and ready for action. Time to hit the track!
