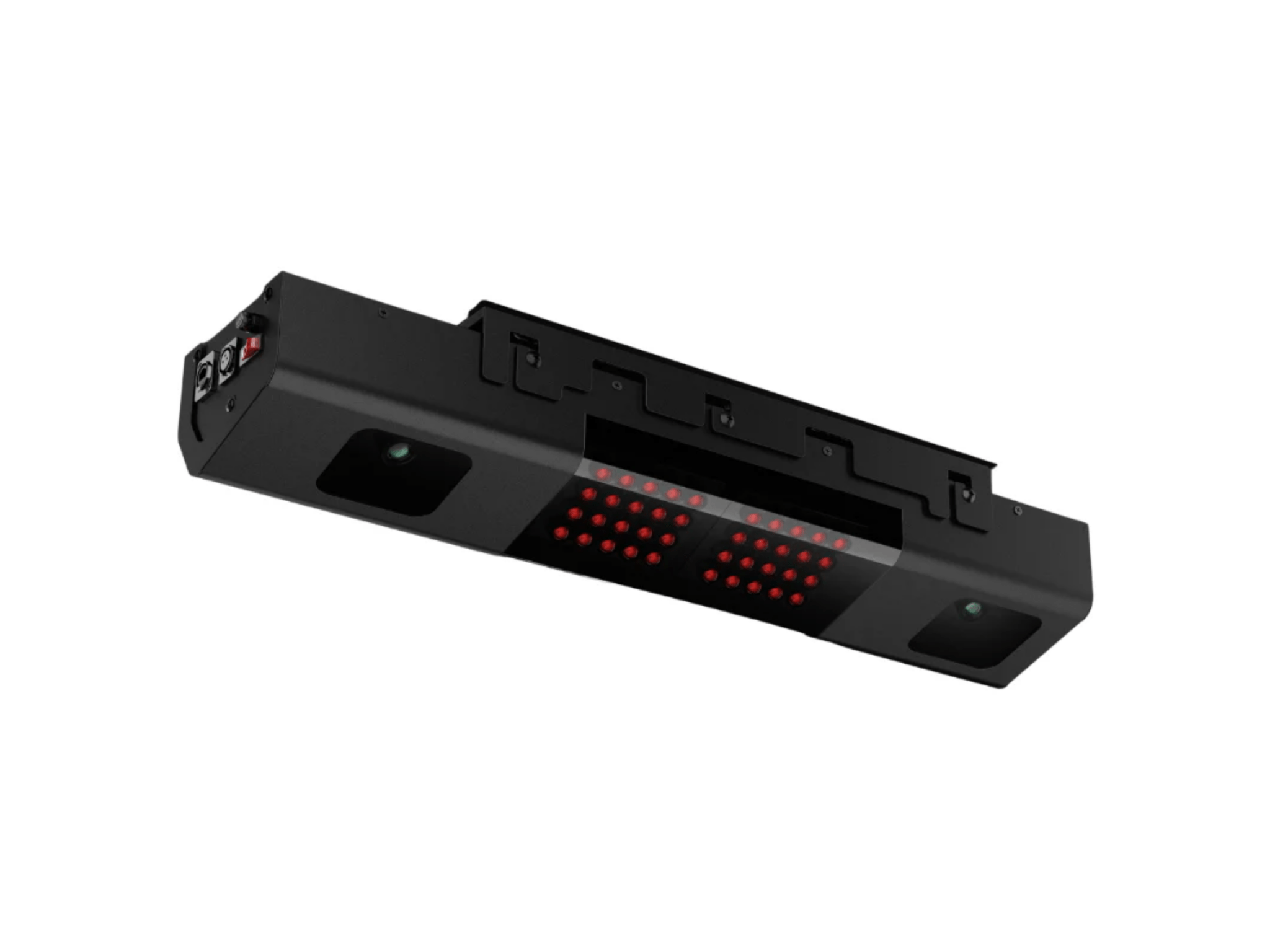

The Uneekor QED is an overhead launch monitor that delivers reliable accuracy and quick response times. Equipped with dual, high-speed camera technology, the QED provides precise, real-time impact zone data to enhance performance on the course. As Uneekor's first launch monitor, the QED uses marked ball technology to measure both ball and club data. The included VIEW Software grants access to 25 measurable data points, while Club Optix offers real-time impact zone video, allowing you to refine your swing with superior precision.
The QED automatically detects your stance, whether you are a right-handed or left-handed golfer, ensuring an easy and consistent experience with no need for repositioning or recalibration. Enjoy a wide hitting zone and a seamless setup with the monitor ceiling-mounted behind you. Thanks to the simple installation process with the included bracket, you can start improving your game in just minutes. Offering exceptional value, the QED Launch Monitor is a game-changing tool loved by golfers at all skill levels.
High-Speed Camera Technology
QED uses advanced high-speed camera technology, delivering precise, real-time data to enhance performance on the course.
Embedded VIEW Software

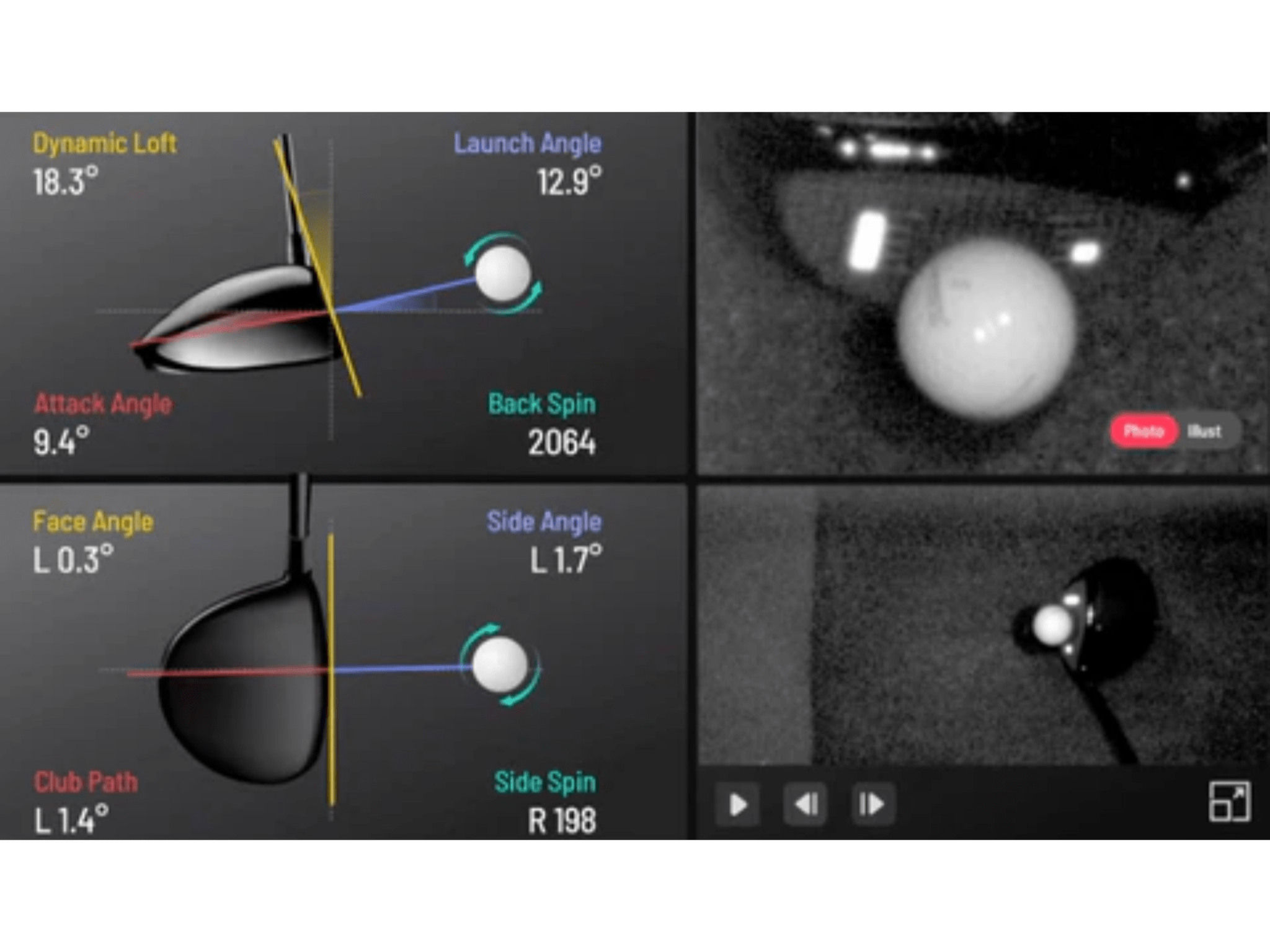

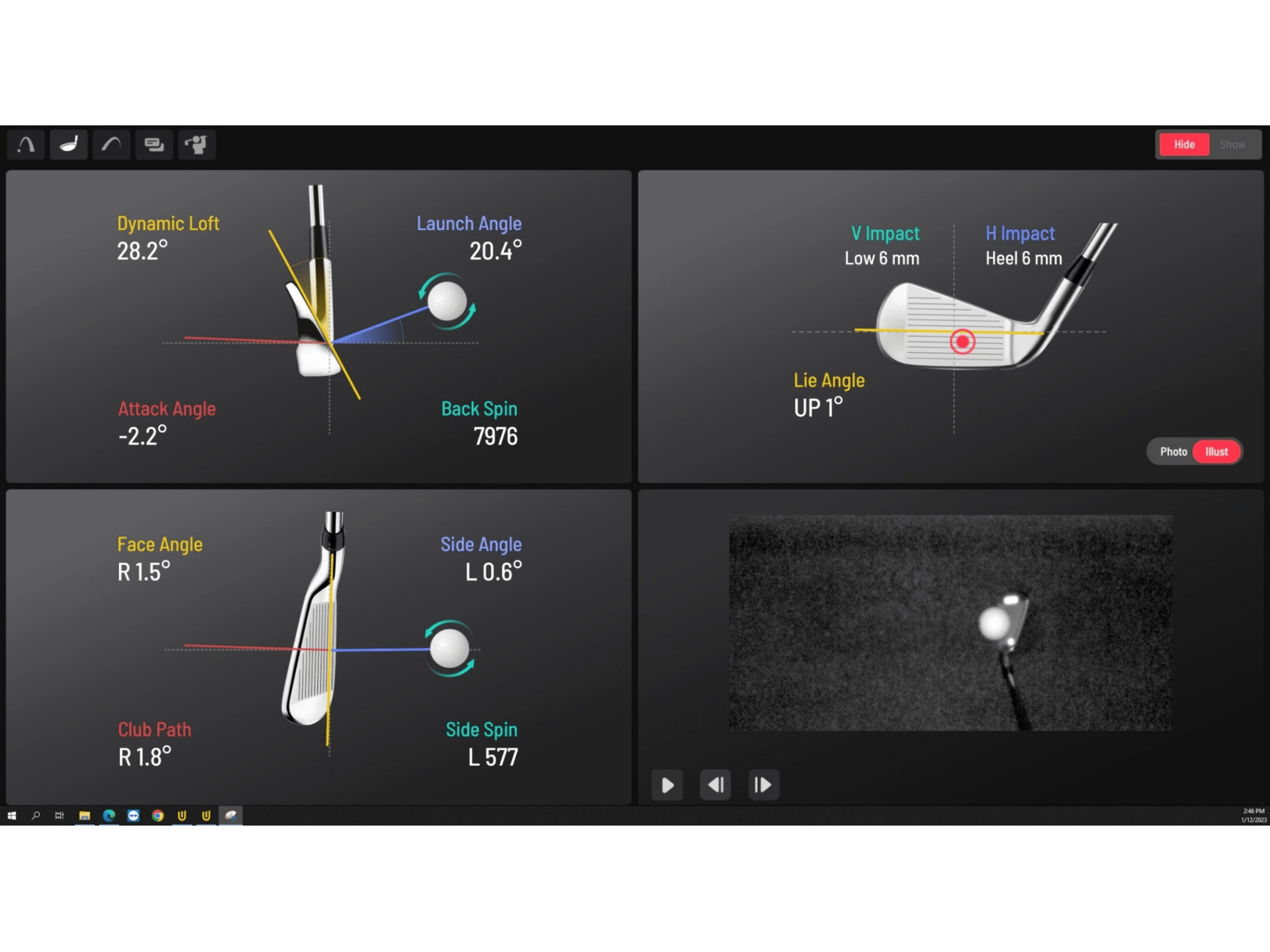

VIEW Software provides access to 25 key data points, while Club Optix enables real-time video of the impact zone, helping to refine your swing with accuracy.
Marked Ball Technology
Equipped with state-of-the-art marked ball technology, the QED ensures exceptional accuracy in measuring ball data, eliminating guesswork for precise results.
Rear-Mounted Safety
The QED’s intelligent design places it behind the golfer on the ceiling, protecting it from potential damage caused by high or off-target shots, keeping the system safe.
Wide Hitting Zone
The QED offers a wide hitting zone, allowing full freedom of movement for both right-handed and left-handed golfers, automatically detecting the orientation without needing recalibration.
Lightning-Fast Response
Experience instant feedback with zero delay, ensuring uninterrupted performance analysis.
Easy Installation
With an included bracket, setting up the QED is quick and easy, letting you focus on improving your game in no time.
Seamless Connectivity

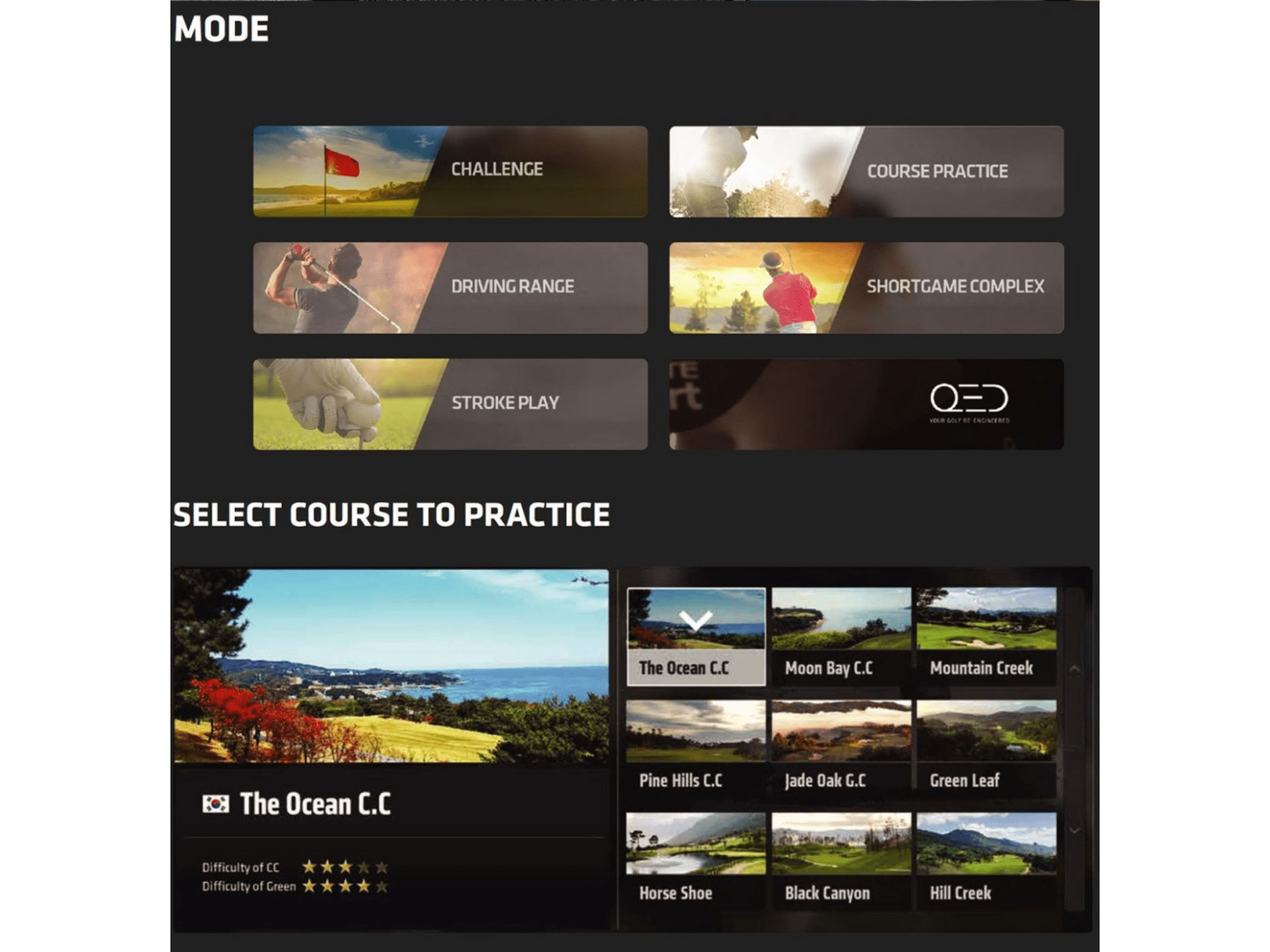

Easily connect to popular third-party golf software like TGC 2019, E6, and GS Pro to enhance your game analysis and improvement. Add Refine or Refine+ software to unlock 18-hole courses and various training modes. Refine software offers (5) 18-hole courses, while Refine+ includes an additional (15) 18-hole courses outside the U.S.
What's Included
- QED Launch Monitor
- GSPro 1-Year Subscription
- 3 Month Champion Package Trial
- Mounting Bracket with Level
- VIEW Software for QED
- Calibration Chart
- 11ft Power Cable, Adapter, and Connector
- USB Ethernet Adapter with CAT6 Ethernet LAN Cable
- (24) marked golf balls
- (400) QED Club Stickers
- (10) M4 32mm Screws and (10) M6 15mm Screws
- (4) M6 15mm High Screws and (4) Low Screws
Ball Data
Ball Speed | Velocity at which the ball is traveling when it leaves the club face after impact. |
Side Spin | Horizontal spin measurement affecting golf ball movement left or right in flight. |
Back Spin | The amount of spin on the golf ball immediately after impact, measured in revolutions per minute (RPM). It plays a crucial role in determining the height, distance, and control of a shot by influencing the ball's lift and trajectory through the air. |
Side Angle | Angle at which the ball starts its flight, relative to a straight target line (Horizontal launch angle). |
Side Total | Deviation left or right of the target while the ball is in the air. |
Launch Angle | The initial vertical launch angle of the golf ball post-clubface impact (relative to the ground). |
Angle of Descent | The descent angle of the golf ball after reaching its peak trajectory. |
Flight Time | The total amount of time the golf ball is in the air. |
Spin Axis | The tilt angle of the golf ball's rotational axis after it leaves the clubface. This angle determines the curvature of the ball's flight. A positive spin axis results in a flight that curves right. A negative spin axis results in a flight that curves left. |
Distance to Apex | The distance covered by the ball in the air until it reaches the highest point of its trajectory. |
Apex | The peak height of the ball's trajectory. |
Ball Flight Type | Description of the balls initial start direction and shot shape. |
Carry Distance | Total distance the ball traveled in the air. |
Run | Distance the ball travels after making contact with the ground. |
Total Distance | Total distance the golf ball travels including the carry and run. |
Club Data Measured
Club Speed | The speed of the club at impact. |
Smash Factor | Quantifies the efficiency of impact between the club face and the golf ball. It is calculated by dividing the speed of the ball by the speed of the club head at impact. A higher smash factor indicates a more efficient transfer of energy from the club to the ball, typically resulting in greater distance and accuracy. |
Face to Path | The angular difference between the face angle and club path. |
Club Path | The in to out, or out to in movement of the club head's geometric center at the center at the time of impact. Club Path is the direction (right or left) the club head is moving at impact and is measured relative to the target line. |
Face Angle | The angular direction of the clubface at impact with the golf ball. |
QED club stickers are necessary for Club Data Measurement.
Space Requirements
For the QED Launch Monitor, your golf simulator room should have the following distances:
Ceiling Height
The Uneekor QED needs to be mounted from the ceiling at 9-10 feet from ground level.QED to Tee Position
QED is mounted overhead 3.5 feet behind tee position.Golfer to Screen Position
The golfer should stand 10-12 feet back from the impact screen to reduce risk of bounceback.
Swing Area
A swing area with a 14-foot diameter, with the golfer centered in the hitting bay, provides a comfortable setup for most players. This comfortably accomodates both right- and left- handed players. 15' is ideal for players over 6' tall.
Optix Cameras (for All-In Package)
Position one Optix camera 6' behind the swing area and the other 5' to the side of the swing area.
System Requirements
- PC sold separately
- Compatible with AMD 3rd gen Ryzen or higher, and AMD Ryzen 3600X or higher (AMD 2700 is not supported)
- Not compatible with MacOS
- Requires Intel i5 8400
- Minimum 8 GB RAM (16 GB RAM needed for Swing Optix)
- GeForce GTX 1060 graphics card
- Windows 10 (64-bit) Version 1803 or newer
- Integrated ethernet port required
- Minimum 25Mbps internet connection required
Want more metrics? Technology that can coach you in ways a person never could? The All-In Package provides just that. Alongside your EYE XO2 launch monitor, you'll receive a set of Swing Optix Cameras and a Balance Optix Mat, providing detailed specs about your every swing.
Swing Optix Cameras
If you want to take your game seriously, the Uneekor Swing Optix Cameras will be your best friend. They capture every moment of your swing at an incredible 160-180 frames per second -- quite literally exposing your every flaw and giving you the insight you need to fix them. They provide frame-by-frame footage and line-drawing tools to compare your swing positions and provide valuable insights into what you feel.
Balance Optix Max
The Balance Optix Mat tracks your weight transfer throughout your swing, giving you real-time insights into your balance and weight distribution. It's the coach you always needed, but didn't think you could get.
For those who wanting to take their game seriously with detailed specs and advanced technology, this is the package for you.
What is included with the Uneekor QED Launch Monitor?
The Uneekor QED Launch Monitor includes a 1-year GSPro subscription and a 3-month Champion Package trial. Additionally, it comes with the VIEW Software, providing access to 25 measurable data points, and Club Optix for real-time video of your impact zone.
How accurate is the Uneekor QED Launch Monitor?
The QED utilizes advanced high-speed camera technology and marked ball technology to deliver precise and reliable data for both ball and club measurements, ensuring accurate results without any guesswork.
Is the Uneekor QED suitable for both right-handed and left-handed golfers?
Yes, the Uneekor QED automatically detects whether you are a right-handed or left-handed golfer, ensuring a seamless experience without needing recalibration or repositioning.
How difficult is it to install the Uneekor QED?
Installation of the Uneekor QED is quick and simple. It comes with an included bracket, allowing for easy ceiling-mounting behind you. You can start using the system in just minutes.
What system requirements are needed to use the Uneekor QED?
To use the Uneekor QED, you will need a PC with at least an AMD 3rd gen Ryzen processor or Intel i5 8400, 8 GB RAM (16 GB for Swing Optix), and a GeForce GTX 1060 graphics card. It requires Windows 10 (64-bit) Version 1803 or higher, an integrated Ethernet port, and a minimum 25Mbps internet connection.
